| 图片 | 型号 | 库存 | 价格 | 数量 | 规格书 | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Package / Case | Capacitance @ Vr, F | Supplier Device Package | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature - Junction | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

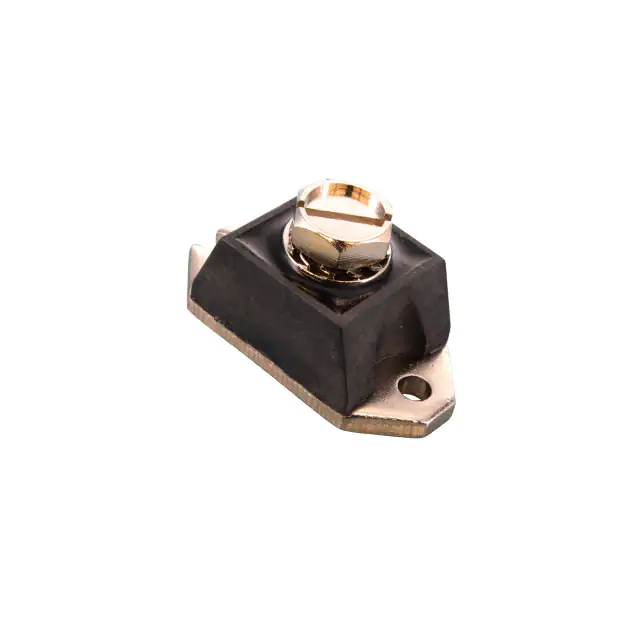

185NQ015R-1180A, 15V, PRM1-1, POWER MODULES |
1,509 | 39.46 |
立即询盘 |
Box | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Chassis Mount | 10000pF @ 5V, 1MHz | - | 60 mA @ 15 V | 15 V | 180A | -55°C ~ 125°C | 400 mV @ 180 A | ||||
|

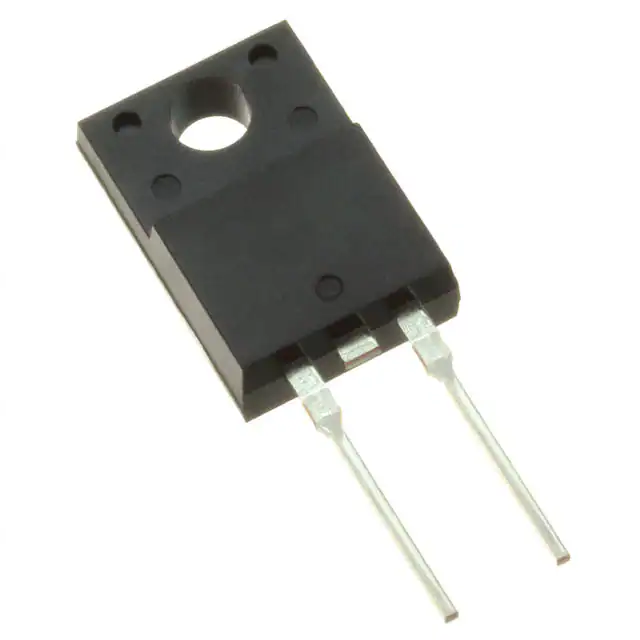

STF10150DIODE SCHOTTKY 150V ITO220AC |
12,818 | 0.76 |
立即询盘 |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 150 µA @ 150 V | 150 V | - | -55°C ~ 150°C | 1.2 V @ 10 A | |||
|
S4D10120ETRDIODE SCHOTTKY SILICON CARBIDE S |
9,252 | 6.49 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Surface Mount | 772pF @ 0V, 1MHz | 0 ns | 30 µA @ 1200 V | 1200 V | 10A | -55°C ~ 175°C | 1.8 V @ 10 A | |||
|
|
STF10100DIODE SCHOTTKY 100V ITO220AC |
14,455 | 0.76 |
立即询盘 |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | 462pF @ 5V, 1MHz | - | 300 µA @ 100 V | 100 V | - | -55°C ~ 150°C | 750 mV @ 10 A | |||
|
STF1060DIODE SCHOTTKY 60V ITO220AC |
13,820 | 0.76 |
立即询盘 |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 850 µA @ 60 V | 60 V | - | -55°C ~ 150°C | 650 mV @ 10 A | |||
|
SICRB12650TRSIC SCHOTTKY RECTIFIER |
7,264 | 6.61 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Surface Mount | 750pF @ 0V, 1MHz | 0 ns | 150 µA @ 650 V | 650 V | 12A | -55°C ~ 175°C | 1.7 V @ 12 A | |||
|
|
183NQ100R-1180A, 100V, PRM1-1, POWER MODULE |
2,638 | 40.52 |
立即询盘 |
Box | RoHS | - | - | Active | - | - | - | - | - | - | - | - | ||||
.jpg)
|
242NQ030R-1240A, 30V, PRM1-1, POWER MODULES |
3,448 | 41.43 |
立即询盘 |
Box | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Chassis Mount | 11500pF @ 5V, 1MHz | - | 20 mA @ 30 V | 30 V | 240A | -55°C ~ 150°C | 510 mV @ 240 A | ||||
|
|
240NQ045R-1240A, 45V, PRM1-1, POWER MODULES |
4,327 | 41.43 |
立即询盘 |
Box | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Chassis Mount | 8000pF @ 5V, 1MHz | - | 20 mA @ 45 V | 45 V | 240A | -55°C ~ 150°C | 610 mV @ 240 A | ||||
|
|
241NQ045R-1240A, 45V, PRM1-1, POWER MODULES |
2,292 | 41.43 |
立即询盘 |
Box | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Chassis Mount | 8600pF @ 5V, 1MHz | - | 20 mA @ 45 V | 45 V | 240A | -55°C ~ 175°C | 690 mV @ 240 A | ||||
|
SDUR860DIODE GEN PURP 600V TO220AC |
12,943 | 0.77 |
立即询盘 |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 50 ns | 5 µA @ 600 V | 600 V | - | -55°C ~ 150°C | 1.7 V @ 8 A | |||
|
|
S3D03065FDIODE SCHOTTKY SILICON CARBIDE S |
9,040 | 1.70 |
立即询盘 |
Datasheet |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 179pF @ 0V, 1MHz | 0 ns | 5 µA @ 650 V | 650 V | 3A | -55°C ~ 175°C | 1.7 V @ 3 A | |||
|

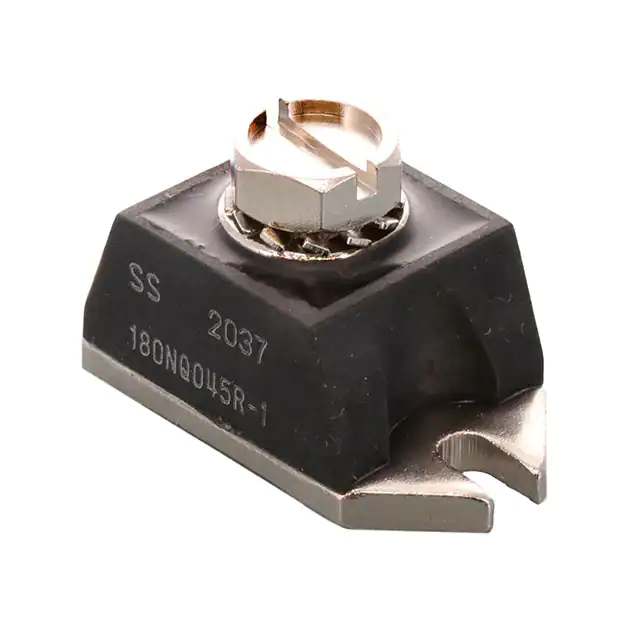

180NQ045R-1180A, 45V, PRM1-1, POWER MODULES |
1,478 | 41.99 |
立即询盘 |
Box | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Chassis Mount | 5800pF @ 5V, 1MHz | - | 15 mA @ 45 V | 45 V | 180A | -55°C ~ 150°C | 600 mV @ 180 A | ||||
|

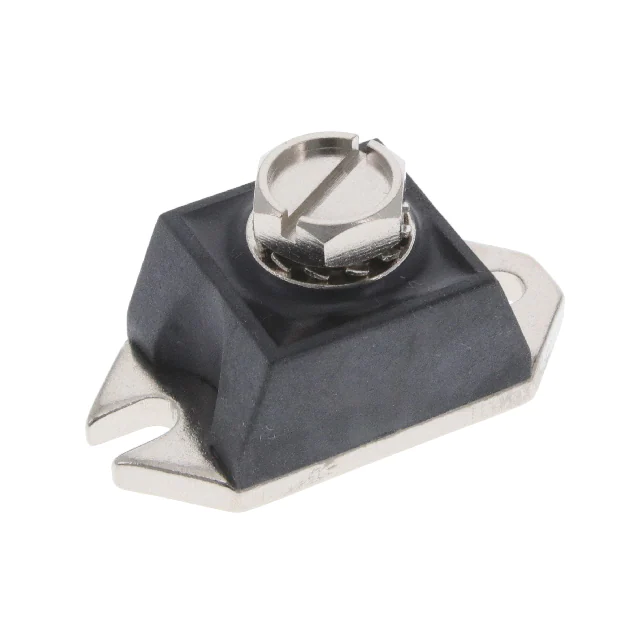

182NQ030R-1180A, 30V, PRM1-1, POWER MODULES |
3,515 | 41.99 |
立即询盘 |
Box | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Chassis Mount | 7000pF @ 5V, 1MHz | - | 15 mA @ 30 V | 30 V | 180A | -55°C ~ 150°C | 510 mV @ 180 A | ||||
|
SDURB1020TRDIODE GEN PURP 200V D2PAK |
10,872 | 0.77 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 60pF @ 5V, 1MHz | 35 ns | 15 µA @ 200 V | 200 V | - | -55°C ~ 150°C | 1.15 V @ 10 A | |||
|
|
249NQ150R-1240A, 150V, PRM1-1, POWER MODULE |
4,140 | 42.14 |
立即询盘 |
Box | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Chassis Mount | 4700pF @ 5V, 1MHz | - | 6 mA @ 150 V | 150 V | 240A | -55°C ~ 175°C | 1.07 V @ 240 A | ||||
|
ST12100STRDIODE SCHOTTKY 100V 12A TO277B |
10,542 | 0.77 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 660pF @ 5V, 1MHz | - | 300 µA @ 100 V | 100 V | 12A | -55°C ~ 150°C | 700 mV @ 12 A | |||
|
|
S3D03065ADIODE SCHOTTKY SILICON CARBIDE S |
7,956 | 1.74 |
立即询盘 |
Datasheet |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 179pF @ 0V, 1MHz | 0 ns | 5 µA @ 650 V | 650 V | 3A | -55°C ~ 175°C | 1.7 V @ 3 A | |||
|
|
SDUR15Q60WTB600V FRD,15A,PACKAGE TO-247AC |
7,890 | 1.78 |
立即询盘 |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 40 ns | 20 µA @ 600 V | 600 V | 15A | -55°C ~ 150°C | 2 V @ 15 A | |||
|
|
S4D02120ADIODE SCHOTTKY SILICON CARBIDE S |
8,467 | 1.99 |
立即询盘 |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 116pF @ 0V, 1MHz | 0 ns | 10 µA @ 1200 V | 1200 V | 2A | -55°C ~ 175°C | 1.8 V @ 2 A |
