| 图片 | 型号 | 库存 | 价格 | 数量 | 规格书 | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LNR1J153MSENCAP ALUM 15000UF 20% 63V SCREW |
3,712 | 16.22 |
立即询盘 |
Datasheet |
Bulk | LNR | Active | 15000 µF | ±20% | 63 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.5 A @ 120 Hz | 6.325 A @ 10 kHz | - | 0.500 (12.70mm) | 1.378 Dia (35.00mm) | 4.055 (103.00mm) | - | Chassis Mount |
|
|
LNR1A104MSENCAP ALUM 100000UF 20% 10V SCREW |
4,845 | 16.33 |
立即询盘 |
Datasheet |
Bulk | LNR | Active | 100000 µF | ±20% | 10 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8.8 A @ 120 Hz | 10.12 A @ 10 kHz | - | 0.500 (12.70mm) | 1.378 Dia (35.00mm) | 4.055 (103.00mm) | - | Chassis Mount |
|
|
LNR2E152MSENCAP ALUM 1500UF 20% 250V SCREW |
1,059 | 16.40 |
立即询盘 |
Datasheet |
Bulk | LNR | Active | 1500 µF | ±20% | 250 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 3 A @ 120 Hz | 3.6 A @ 10 kHz | - | 0.500 (12.70mm) | 1.378 Dia (35.00mm) | 4.055 (103.00mm) | - | Chassis Mount |
|
|
LQR2G681MSECBBCAP ALUM 680UF 20% 400V SCREW |
3,631 | 16.46 |
立即询盘 |
Datasheet |
Bulk | LQR | Active | 680 µF | ±20% | 400 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 3.2 A @ 120 Hz | 4.48 A @ 10 kHz | - | 0.500 (12.70mm) | 1.378 Dia (35.00mm) | 3.268 (83.00mm) | - | Chassis Mount |
|
|
LQR2G681MSECBNCAP ALUM 680UF 20% 400V SCREW |
4,364 | 16.46 |
立即询盘 |
Datasheet |
Bulk | LQR | Active | 680 µF | ±20% | 400 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 3.2 A @ 120 Hz | 4.48 A @ 10 kHz | - | 0.500 (12.70mm) | 1.378 Dia (35.00mm) | 3.268 (83.00mm) | - | Chassis Mount |
|
|
LNR2D222MSENCAP ALUM 2200UF 20% 200V SCREW |
2,388 | 16.54 |
立即询盘 |
Datasheet |
Bulk | LNR | Active | 2200 µF | ±20% | 200 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 3.5 A @ 120 Hz | 4.2 A @ 10 kHz | - | 0.500 (12.70mm) | 1.378 Dia (35.00mm) | 4.055 (103.00mm) | - | Chassis Mount |
|

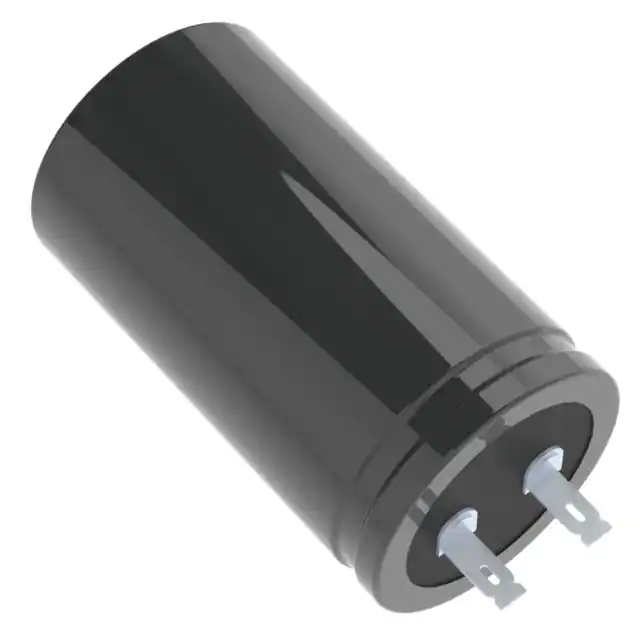

LKG1J153MKNFCAP ALUM 15000UF 20% 63V SOLDER |
1,967 | 16.74 |
立即询盘 |
Datasheet |
Bulk | LKG | Active | 15000 µF | ±20% | 63 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 5.6 A @ 120 Hz | - | - | 0.551 (14.00mm) | 1.575 Dia (40.00mm) | 2.795 (71.00mm) | - | Through Hole |
|
LKG1J682MKNSCAP ALUM 6800UF 20% 63V SLD LUG |
3,786 | 16.74 |
立即询盘 |
Datasheet |
Bulk | LKG | Active | 6800 µF | ±20% | 63 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 6.1 A @ 120 Hz | - | - | 0.551 (14.00mm) | 1.575 Dia (40.00mm) | 4.055 (103.00mm) | - | Through Hole |
|
|
LNR1V473MSENCAP ALUM 47000UF 20% 35V SCREW |
2,329 | 16.85 |
立即询盘 |
Datasheet |
Bulk | LNR | Active | 47000 µF | ±20% | 35 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8.2 A @ 120 Hz | 9.43 A @ 10 kHz | - | 0.500 (12.70mm) | 1.378 Dia (35.00mm) | 4.843 (123.00mm) | - | Chassis Mount |
|
|
LNR2C332MSENCAP ALUM 3300UF 20% 160V SCREW |
4,659 | 17.04 |
立即询盘 |
Datasheet |
Bulk | LNR | Active | 3300 µF | ±20% | 160 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 4.7 A @ 120 Hz | 5.64 A @ 10 kHz | - | 0.500 (12.70mm) | 1.378 Dia (35.00mm) | 4.843 (123.00mm) | - | Chassis Mount |
|
|
LNR2A682MSENCAP ALUM 6800UF 20% 100V SCREW |
1,979 | 17.10 |
立即询盘 |
Datasheet |
Bulk | LNR | Active | 6800 µF | ±20% | 100 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.5 A @ 120 Hz | 5.175 A @ 10 kHz | - | 0.500 (12.70mm) | 1.378 Dia (35.00mm) | 4.055 (103.00mm) | - | Chassis Mount |
|
|
LNT2W331MSECBNCAP ALUM 330UF 20% 450V SCREW |
2,648 | 17.10 |
立即询盘 |
Datasheet |
Bulk | LNT | Active | 330 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.4 A @ 120 Hz | 3.36 A @ 10 kHz | - | 0.500 (12.70mm) | 1.378 Dia (35.00mm) | 4.055 (103.00mm) | - | Chassis Mount |
|
LKG1H153MKNCAP ALUM 15000UF 20% 50V SOLDER |
2,064 | 17.46 |
立即询盘 |
Datasheet |
Bulk | LKG | Active | 15000 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 6.1 A @ 120 Hz | - | - | 0.551 (14.00mm) | 1.575 Dia (40.00mm) | 3.268 (83.00mm) | - | Through Hole |
|
|
LNR1C104MSENCAP ALUM 100000UF 20% 16V SCREW |
1,295 | 17.50 |
立即询盘 |
Datasheet |
Bulk | LNR | Active | 100000 µF | ±20% | 16 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 10.6 A @ 120 Hz | 12.19 A @ 10 kHz | - | 0.500 (12.70mm) | 1.378 Dia (35.00mm) | 4.843 (123.00mm) | - | Chassis Mount |
|
|
LNR1E683MSENCAP ALUM 68000UF 20% 25V SCREW |
3,832 | 17.53 |
立即询盘 |
Datasheet |
Bulk | LNR | Active | 68000 µF | ±20% | 25 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 9.4 A @ 120 Hz | 10.81 A @ 10 kHz | - | 0.500 (12.70mm) | 1.378 Dia (35.00mm) | 4.843 (123.00mm) | - | Chassis Mount |
|
|
LQR2G821MSECBBCAP ALUM 820UF 20% 400V SCREW |
4,983 | 17.54 |
立即询盘 |
Datasheet |
Bulk | LQR | Active | 820 µF | ±20% | 400 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 4.1 A @ 120 Hz | 5.74 A @ 10 kHz | - | 0.500 (12.70mm) | 1.378 Dia (35.00mm) | 4.055 (103.00mm) | - | Chassis Mount |
|
|
LQR2G821MSECBNCAP ALUM 820UF 20% 400V SCREW |
2,771 | 17.54 |
立即询盘 |
Datasheet |
Bulk | LQR | Active | 820 µF | ±20% | 400 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 4.1 A @ 120 Hz | 5.74 A @ 10 kHz | - | 0.500 (12.70mm) | 1.378 Dia (35.00mm) | 4.055 (103.00mm) | - | Chassis Mount |
|
|
LNR1K153MSENCAP ALUM 15000UF 20% 80V SCREW |
4,854 | 18.01 |
立即询盘 |
Datasheet |
Bulk | LNR | Active | 15000 µF | ±20% | 80 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6 A @ 120 Hz | 6.9 A @ 10 kHz | - | 0.500 (12.70mm) | 1.378 Dia (35.00mm) | 4.843 (123.00mm) | - | Chassis Mount |
|

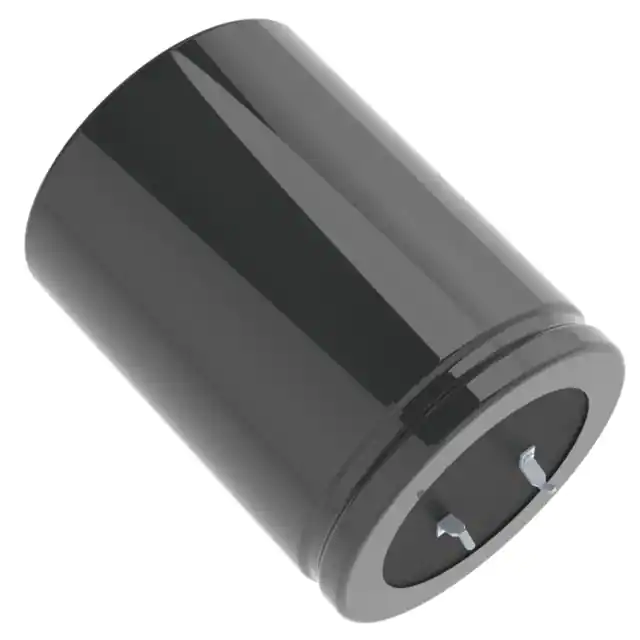

LGM2W821MELC45CAP ALUM 820UF 20% 450V SNAP |
2,342 | 15.70 |
立即询盘 |
Datasheet |
Bulk | LGM | Active | 820 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.6 A @ 120 Hz | - | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.870 (47.50mm) | - | Through Hole |
|
|
LQR2W681MSECBBCAP ALUM 680UF 20% 450V SCREW |
4,959 | 18.09 |
立即询盘 |
Datasheet |
Bulk | LQR | Active | 680 µF | ±20% | 450 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 3.5 A @ 120 Hz | 4.9 A @ 10 kHz | - | 0.500 (12.70mm) | 1.378 Dia (35.00mm) | 4.055 (103.00mm) | - | Chassis Mount |
