| 图片 | 型号 | 库存 | 价格 | 数量 | 规格书 | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LKX2D222MESC50CAP ALUM 2200UF 20% 200V SNAP |
9,762 | 9.15 |
立即询盘 |
Datasheet |
Bulk | LKX | Active | 2200 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Audio | 3.48 A @ 120 Hz | 5.22 A @ 50 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 2.047 (52.00mm) | - | Through Hole |
|
LKG1J682MKNCAP ALUM 6800UF 20% 63V SLD LUG |
1,164 | 10.80 |
立即询盘 |
Datasheet |
Bulk | LKG | Active | 6800 µF | ±20% | 63 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 4.3 A @ 120 Hz | - | - | 0.551 (14.00mm) | 1.378 Dia (35.00mm) | 2.795 (71.00mm) | - | Through Hole |
|
LGM2W471MELB40CAP ALUM 470UF 20% 450V SNAP |
7,763 | 9.56 |
立即询盘 |
Datasheet |
Bulk | LGM | Active | 470 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1 A @ 120 Hz | - | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.673 (42.50mm) | - | Through Hole |
|
LLG2G102MELC50CAP ALUM 1000UF 20% 400V SNAP |
5,645 | 9.44 |
立即询盘 |
Datasheet |
Bulk | LLG | Active | 1000 µF | ±20% | 400 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 3.3 A @ 120 Hz | 4.719 A @ 50 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 2.047 (52.00mm) | - | Through Hole |
|
LKS1K103MESCCAP ALUM 10000UF 20% 80V SNAP |
6,123 | 9.49 |
立即询盘 |
Datasheet |
Bulk | LKS | Active | 10000 µF | ±20% | 80 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 4.7 A @ 120 Hz | - | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.969 (50.00mm) | - | Through Hole |
|
|
LLG2D332MELC50CAP ALUM 3300UF 20% 200V SNAP |
9,162 | 9.69 |
立即询盘 |
Datasheet |
Bulk | LLG | Active | 3300 µF | ±20% | 200 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.42 A @ 120 Hz | 6.63 A @ 50 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 2.047 (52.00mm) | - | Through Hole |
|
LGM2W471MELC30CAP ALUM 470UF 20% 450V SNAP |
9,133 | 9.86 |
立即询盘 |
Datasheet |
Bulk | LGM | Active | 470 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1 A @ 120 Hz | - | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.280 (32.50mm) | - | Through Hole |
|
|
LKX2G681MESC50CAP ALUM 680UF 20% 400V SNAP |
3,444 | 10.17 |
立即询盘 |
Datasheet |
Bulk | LKX | Active | 680 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | Audio | 2.12 A @ 120 Hz | 3.0316 A @ 50 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 2.047 (52.00mm) | - | Through Hole |
|
|
LKX2W561MESC50CAP ALUM 560UF 20% 450V SNAP |
1,269 | 10.41 |
立即询盘 |
Datasheet |
Bulk | LKX | Active | 560 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | Audio | 1.99 A @ 120 Hz | 2.8457 A @ 50 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 2.047 (52.00mm) | - | Through Hole |
|

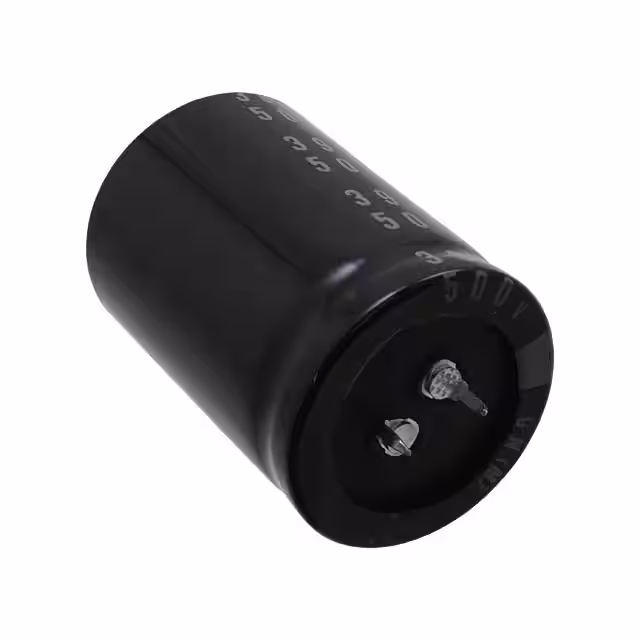

LGN2H391MELC50CAP ALUM 390UF 20% 500V SNAP |
1,848 | 10.51 |
立即询盘 |
Datasheet |
Bulk | LGN | Active | 390 µF | ±20% | 500 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.3 A @ 120 Hz | 1.859 A @ 50 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 2.047 (52.00mm) | - | Through Hole |
|
LKG1H103MKNCAP ALUM 10000UF 20% 50V SOLDER |
2,682 | 12.35 |
立即询盘 |
Datasheet |
Bulk | LKG | Active | 10000 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 4.6 A @ 120 Hz | - | - | 0.551 (14.00mm) | 1.378 Dia (35.00mm) | 3.268 (83.00mm) | - | Through Hole |
|
LNT1A333MSENCAP ALUM 33000UF 20% 10V SCREW |
1,099 | 12.47 |
立即询盘 |
Datasheet |
Bulk | LNT | Active | 33000 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.8 A @ 120 Hz | 7.2 A @ 10 kHz | - | 0.500 (12.70mm) | 1.378 Dia (35.00mm) | 3.268 (83.00mm) | - | Chassis Mount |
|
|
LNT2C102MSENCAP ALUM 1000UF 20% 160V SCREW |
4,045 | 12.65 |
立即询盘 |
Datasheet |
Bulk | LNT | Active | 1000 µF | ±20% | 160 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.6 A @ 120 Hz | 1.92 A @ 10 kHz | - | 0.500 (12.70mm) | 1.378 Dia (35.00mm) | 3.268 (83.00mm) | - | Chassis Mount |
|
|
LNR1A473MSENCAP ALUM 47000UF 20% 10V SCREW |
2,760 | 12.74 |
立即询盘 |
Datasheet |
Bulk | LNR | Active | 47000 µF | ±20% | 10 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6 A @ 120 Hz | 6.9 A @ 10 kHz | - | 0.500 (12.70mm) | 1.378 Dia (35.00mm) | 3.268 (83.00mm) | - | Chassis Mount |
|
LGM2W561MELB45CAP ALUM 560UF 20% 450V SNAP |
2,132 | 10.96 |
立即询盘 |
Datasheet |
Bulk | LGM | Active | 560 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.2 A @ 120 Hz | - | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.870 (47.50mm) | - | Through Hole |
|
|
LNT1V153MSENCAP ALUM 15000UF 20% 35V SCREW |
1,261 | 12.85 |
立即询盘 |
Datasheet |
Bulk | LNT | Active | 15000 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 5.1 A @ 120 Hz | 7.65 A @ 10 kHz | - | 0.500 (12.70mm) | 1.378 Dia (35.00mm) | 3.268 (83.00mm) | - | Chassis Mount |
|
|
LNR1A683MSENCAP ALUM 68000UF 20% 10V SCREW |
4,835 | 12.91 |
立即询盘 |
Datasheet |
Bulk | LNR | Active | 68000 µF | ±20% | 10 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.2 A @ 120 Hz | 8.28 A @ 10 kHz | - | 0.500 (12.70mm) | 1.378 Dia (35.00mm) | 3.268 (83.00mm) | - | Chassis Mount |
|
|
LNT1C333MSENCAP ALUM 33000UF 20% 16V SCREW |
4,632 | 12.95 |
立即询盘 |
Datasheet |
Bulk | LNT | Active | 33000 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 5.2 A @ 120 Hz | 7.8 A @ 10 kHz | - | 0.500 (12.70mm) | 1.378 Dia (35.00mm) | 3.268 (83.00mm) | - | Chassis Mount |
|
|
LNT2D102MSENCAP ALUM 1000UF 20% 200V SCREW |
1,374 | 12.99 |
立即询盘 |
Datasheet |
Bulk | LNT | Active | 1000 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.7 A @ 120 Hz | 2.04 A @ 10 kHz | - | 0.500 (12.70mm) | 1.378 Dia (35.00mm) | 3.268 (83.00mm) | - | Chassis Mount |
|
|
LNT2A222MSENCAP ALUM 2200UF 20% 100V SCREW |
1,140 | 13.13 |
立即询盘 |
Datasheet |
Bulk | LNT | Active | 2200 µF | ±20% | 100 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.4 A @ 120 Hz | 3.6 A @ 10 kHz | - | 0.500 (12.70mm) | 1.378 Dia (35.00mm) | 3.268 (83.00mm) | - | Chassis Mount |
