型号	库存	数量	规格书	Packaging	Series	ProductStatus	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	OperatingTemperature	Polarization	Ratings	Applications	RippleCurrent@LowFrequency	RippleCurrent@HighFrequency	Impedance	LeadSpacing	Size/Dimension	Height-Seated(Max)	SurfaceMountLandSize	MountingType

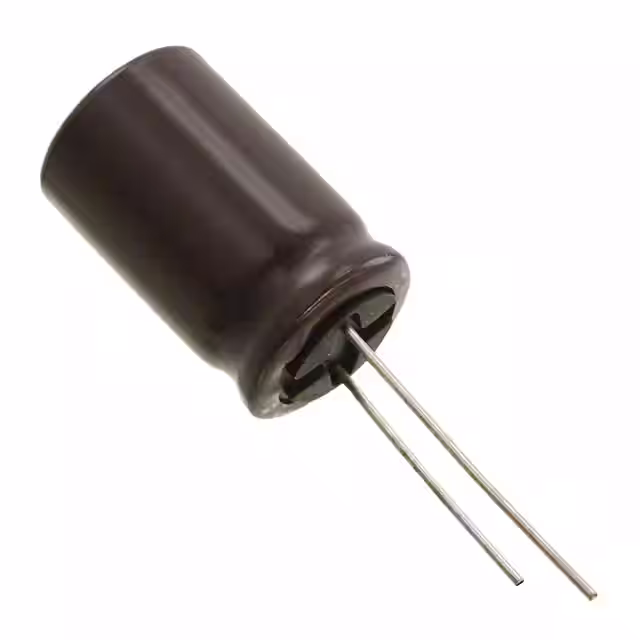

UPB2V470MHD CAP ALUM 47UF 20% 350V RADIAL Nichicon	3,525	立即询盘	Datasheet	Bulk	UPB	Obsolete	47 µF	±20%	350 V	-	5000 Hrs @ 105°C	-25°C ~ 105°C	-	-	General Purpose	325 mA @ 120 Hz	650 mA @ 100 kHz	-	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.043 (26.50mm)	-	Through Hole
UPB2V680MHD CAP ALUM 68UF 20% 350V RADIAL Nichicon	3,874	立即询盘	Datasheet	Bulk	UPB	Obsolete	68 µF	±20%	350 V	-	5000 Hrs @ 105°C	-25°C ~ 105°C	-	-	General Purpose	400 mA @ 120 Hz	800 mA @ 100 kHz	-	0.295 (7.50mm)	0.709 Dia (18.00mm)	1.043 (26.50mm)	-	Through Hole
UPB2W100MHD CAP ALUM 10UF 20% 450V RADIAL Nichicon	2,794	立即询盘	Datasheet	Bulk	UPB	Obsolete	10 µF	±20%	450 V	-	5000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	150 mA @ 120 Hz	300 mA @ 100 kHz	-	0.197 (5.00mm)	0.492 Dia (12.50mm)	0.846 (21.50mm)	-	Through Hole

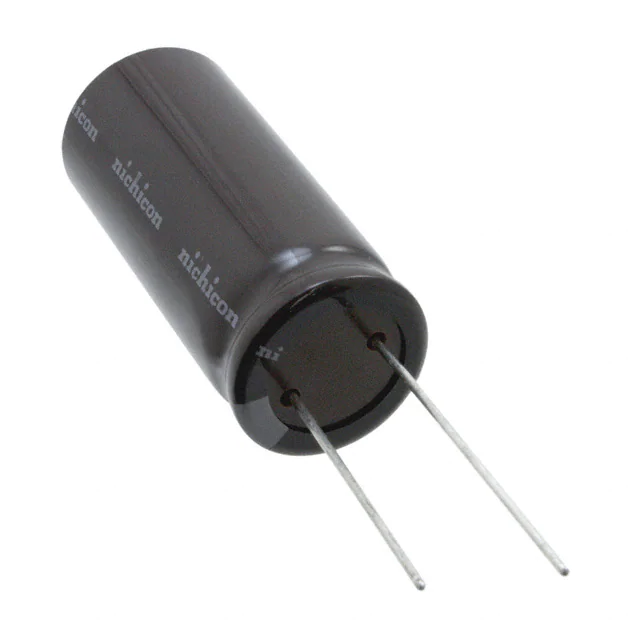

UPB2W121MRD CAP ALUM 120UF 20% 450V RADIAL Nichicon	2,347	立即询盘	Datasheet	Bulk	UPB	Obsolete	120 µF	±20%	450 V	-	5000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	700 mA @ 120 Hz	1.4 A @ 100 kHz	-	0.394 (10.00mm)	0.866 Dia (22.00mm)	2.047 (52.00mm)	-	Through Hole
UPB2W121MRD6 CAP ALUM 120UF 20% 450V RADIAL Nichicon	3,355	立即询盘	Datasheet	Bulk	UPB	Obsolete	120 µF	±20%	450 V	-	5000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	700 mA @ 120 Hz	1.4 A @ 100 kHz	-	0.492 (12.50mm)	0.984 Dia (25.00mm)	1.654 (42.00mm)	-	Through Hole
UPB2W151MRD CAP ALUM 150UF 20% 450V RADIAL Nichicon	3,735	立即询盘	Datasheet	Bulk	UPB	Obsolete	150 µF	±20%	450 V	-	5000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	800 mA @ 120 Hz	1.6 A @ 100 kHz	-	0.492 (12.50mm)	0.984 Dia (25.00mm)	2.047 (52.00mm)	-	Through Hole
UPB2W220MHD CAP ALUM 22UF 20% 450V RADIAL Nichicon	2,607	立即询盘	Datasheet	Bulk	UPB	Obsolete	22 µF	±20%	450 V	-	5000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	275 mA @ 120 Hz	550 mA @ 100 kHz	-	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.043 (26.50mm)	-	Through Hole

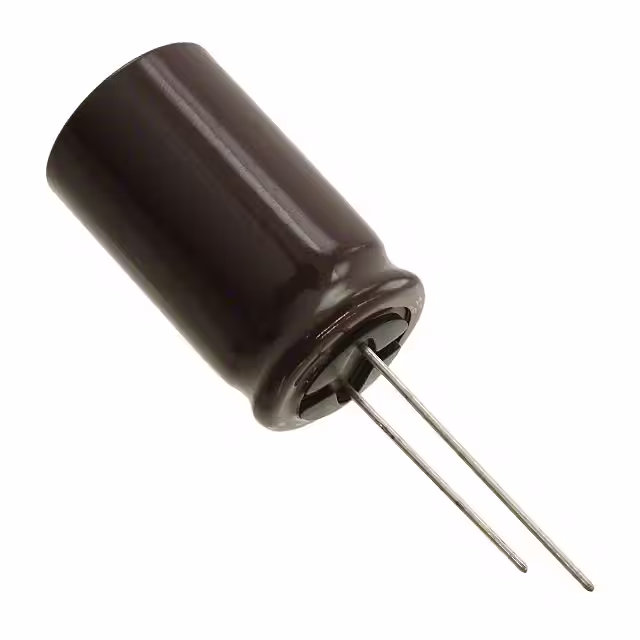

UPB2W330MHD CAP ALUM 33UF 20% 450V RADIAL Nichicon	3,831	立即询盘	Datasheet	Bulk	UPB	Obsolete	33 µF	±20%	450 V	-	5000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	350 mA @ 120 Hz	700 mA @ 100 kHz	-	0.295 (7.50mm)	0.709 Dia (18.00mm)	1.043 (26.50mm)	-	Through Hole

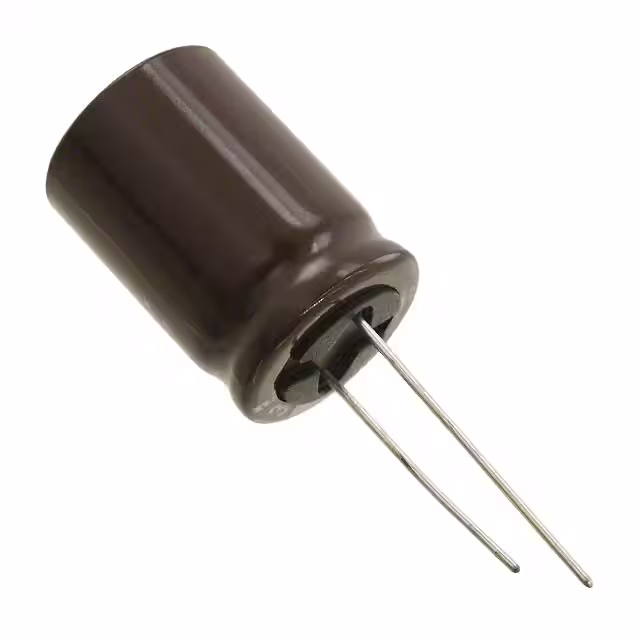

UPB2W470MHD CAP ALUM 47UF 20% 450V RADIAL Nichicon	3,336	立即询盘	Datasheet	Bulk	UPB	Obsolete	47 µF	±20%	450 V	-	5000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	425 mA @ 120 Hz	850 mA @ 100 kHz	-	0.295 (7.50mm)	0.709 Dia (18.00mm)	1.299 (33.00mm)	-	Through Hole
UPB2W560MHD CAP ALUM 56UF 20% 450V RADIAL Nichicon	3,185	立即询盘	Datasheet	Bulk	UPB	Obsolete	56 µF	±20%	450 V	-	5000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	475 mA @ 120 Hz	950 mA @ 100 kHz	-	0.295 (7.50mm)	0.709 Dia (18.00mm)	1.457 (37.00mm)	-	Through Hole
UPB2W680MHD CAP ALUM 68UF 20% 450V RADIAL Nichicon	3,917	立即询盘	Datasheet	Bulk	UPB	Obsolete	68 µF	±20%	450 V	-	5000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	500 mA @ 120 Hz	1 A @ 100 kHz	-	0.295 (7.50mm)	0.709 Dia (18.00mm)	1.634 (41.50mm)	-	Through Hole

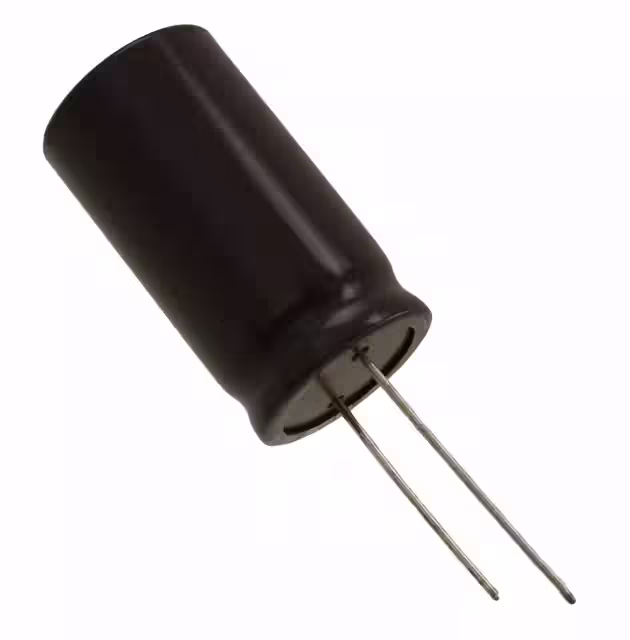

UPB2W820MRD CAP ALUM 82UF 20% 450V RADIAL Nichicon	2,030	立即询盘	Datasheet	Bulk	UPB	Obsolete	82 µF	±20%	450 V	-	5000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	550 mA @ 120 Hz	1.1 A @ 100 kHz	-	0.394 (10.00mm)	0.866 Dia (22.00mm)	1.654 (42.00mm)	-	Through Hole
UPJ1H010MDD CAP ALUM 1UF 20% 50V RADIAL Nichicon	2,401	立即询盘	Datasheet	Bulk	UPJ	Obsolete	1 µF	±20%	50 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	18 mA @ 120 Hz	36 mA @ 10 kHz	14 Ohms	0.079 (2.00mm)	0.197 Dia (5.00mm)	0.472 (12.00mm)	-	Through Hole
UPJ1H1R5MDD CAP ALUM 1.5UF 20% 50V RADIAL Nichicon	3,914	立即询盘	Datasheet	Bulk	UPJ	Obsolete	1.5 µF	±20%	50 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	22 mA @ 120 Hz	45 mA @ 10 kHz	9.8 Ohms	0.079 (2.00mm)	0.197 Dia (5.00mm)	0.472 (12.00mm)	-	Through Hole
UPJ1HR47MDD CAP ALUM 0.47UF 20% 50V RADIAL Nichicon	2,369	立即询盘	Datasheet	Bulk	UPJ	Obsolete	0.47 µF	±20%	50 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	11 mA @ 120 Hz	22 mA @ 10 kHz	31 Ohms	0.079 (2.00mm)	0.197 Dia (5.00mm)	0.472 (12.00mm)	-	Through Hole
UPJ1HR68MDD CAP ALUM 0.68UF 20% 50V RADIAL Nichicon	2,101	立即询盘	Datasheet	Bulk	UPJ	Obsolete	0.68 µF	±20%	50 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	14 mA @ 120 Hz	28 mA @ 10 kHz	21 Ohms	0.079 (2.00mm)	0.197 Dia (5.00mm)	0.472 (12.00mm)	-	Through Hole
UPJ2A010MDD CAP ALUM 1UF 20% 100V RADIAL Nichicon	3,399	立即询盘	Datasheet	Bulk	UPJ	Obsolete	1 µF	±20%	100 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	13 mA @ 120 Hz	27 mA @ 10 kHz	17 Ohms	0.079 (2.00mm)	0.197 Dia (5.00mm)	0.472 (12.00mm)	-	Through Hole
UPJ2A1R5MDD CAP ALUM 1.5UF 20% 100V RADIAL Nichicon	2,690	立即询盘	Datasheet	Bulk	UPJ	Obsolete	1.5 µF	±20%	100 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	17 mA @ 120 Hz	35 mA @ 10 kHz	10 Ohms	0.079 (2.00mm)	0.197 Dia (5.00mm)	0.472 (12.00mm)	-	Through Hole
UPJ2AR47MDD CAP ALUM 0.47UF 20% 100V RADIAL Nichicon	3,255	立即询盘	Datasheet	Bulk	UPJ	Obsolete	0.47 µF	±20%	100 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	8 mA @ 120 Hz	17 mA @ 10 kHz	43 Ohms	0.079 (2.00mm)	0.197 Dia (5.00mm)	0.472 (12.00mm)	-	Through Hole
UPJ2AR68MDD CAP ALUM 0.68UF 20% 100V RADIAL Nichicon	2,204	立即询盘	Datasheet	Bulk	UPJ	Obsolete	0.68 µF	±20%	100 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	11 mA @ 120 Hz	23 mA @ 10 kHz	23 Ohms	0.079 (2.00mm)	0.197 Dia (5.00mm)	0.472 (12.00mm)	-	Through Hole
