型号	库存	数量	规格书	Packaging	Series	ProductStatus	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	OperatingTemperature	Polarization	Ratings	Applications	RippleCurrent@LowFrequency	RippleCurrent@HighFrequency	Impedance	LeadSpacing	Size/Dimension	Height-Seated(Max)	SurfaceMountLandSize	MountingType
UPB2D331MHD CAP ALUM 330UF 20% 200V RADIAL Nichicon	2,581	立即询盘	Datasheet	Bulk	UPB	Obsolete	330 µF	±20%	200 V	-	5000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	1.05 A @ 120 Hz	2.1 A @ 100 kHz	-	0.295 (7.50mm)	0.709 Dia (18.00mm)	1.634 (41.50mm)	-	Through Hole

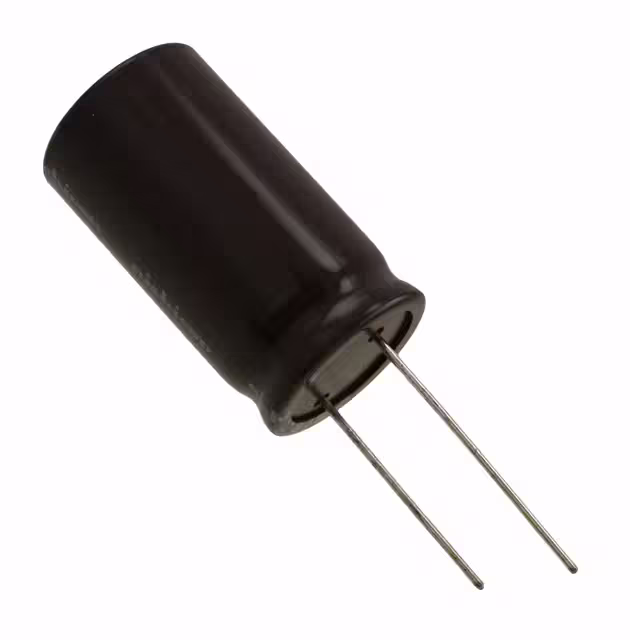

UPB2D391MRD CAP ALUM 390UF 20% 200V RADIAL Nichicon	3,486	立即询盘	Datasheet	Bulk	UPB	Obsolete	390 µF	±20%	200 V	-	5000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	1.15 A @ 120 Hz	2.3 A @ 100 kHz	-	0.394 (10.00mm)	0.866 Dia (22.00mm)	1.654 (42.00mm)	-	Through Hole
UPB2D470MHD CAP ALUM 47UF 20% 200V RADIAL Nichicon	3,687	立即询盘	Datasheet	Bulk	UPB	Obsolete	47 µF	±20%	200 V	-	5000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	300 mA @ 120 Hz	600 mA @ 100 kHz	-	0.197 (5.00mm)	0.492 Dia (12.50mm)	0.846 (21.50mm)	-	Through Hole

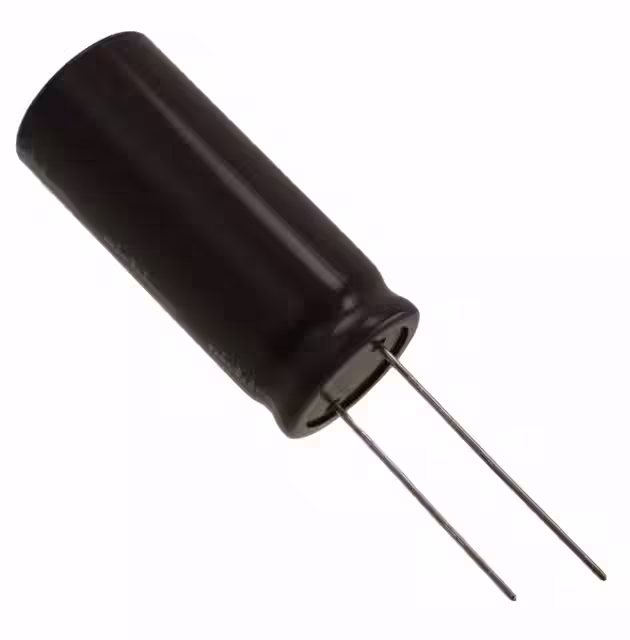

UPB2D561MRD CAP ALUM 560UF 20% 200V RADIAL Nichicon	3,974	立即询盘	Datasheet	Bulk	UPB	Obsolete	560 µF	±20%	200 V	-	5000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	1.35 A @ 120 Hz	2.7 A @ 100 kHz	-	0.394 (10.00mm)	0.866 Dia (22.00mm)	2.047 (52.00mm)	-	Through Hole
UPB2D561MRD6 CAP ALUM 560UF 20% 200V RADIAL Nichicon	2,812	立即询盘	Datasheet	Bulk	UPB	Obsolete	560 µF	±20%	200 V	-	5000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	1.35 A @ 120 Hz	2.7 A @ 100 kHz	-	0.492 (12.50mm)	0.984 Dia (25.00mm)	1.654 (42.00mm)	-	Through Hole
UPB2D680MHD CAP ALUM 68UF 20% 200V RADIAL Nichicon	2,136	立即询盘	Datasheet	Bulk	UPB	Obsolete	68 µF	±20%	200 V	-	5000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	375 mA @ 120 Hz	750 mA @ 100 kHz	-	0.197 (5.00mm)	0.492 Dia (12.50mm)	1.043 (26.50mm)	-	Through Hole
UPB2D681MRD CAP ALUM 680UF 20% 200V RADIAL Nichicon	2,244	立即询盘	Datasheet	Bulk	UPB	Obsolete	680 µF	±20%	200 V	-	5000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	1.5 A @ 120 Hz	3 A @ 100 kHz	-	0.492 (12.50mm)	0.984 Dia (25.00mm)	2.047 (52.00mm)	-	Through Hole
UPB2E101MHD CAP ALUM 100UF 20% 250V RADIAL Nichicon	2,811	立即询盘	Datasheet	Bulk	UPB	Obsolete	100 µF	±20%	250 V	-	5000 Hrs @ 105°C	-25°C ~ 105°C	-	-	General Purpose	600 mA @ 120 Hz	1.2 A @ 100 kHz	-	0.295 (7.50mm)	0.709 Dia (18.00mm)	1.043 (26.50mm)	-	Through Hole
UPB2E151MHD CAP ALUM 150UF 20% 250V RADIAL Nichicon	3,323	立即询盘	Datasheet	Bulk	UPB	Obsolete	150 µF	±20%	250 V	-	5000 Hrs @ 105°C	-25°C ~ 105°C	-	-	General Purpose	750 mA @ 120 Hz	1.5 A @ 100 kHz	-	0.295 (7.50mm)	0.709 Dia (18.00mm)	1.299 (33.00mm)	-	Through Hole
UPB2E181MHD CAP ALUM 180UF 20% 250V RADIAL Nichicon	2,182	立即询盘	Datasheet	Bulk	UPB	Obsolete	180 µF	±20%	250 V	-	5000 Hrs @ 105°C	-25°C ~ 105°C	-	-	General Purpose	850 mA @ 120 Hz	1.7 A @ 100 kHz	-	0.295 (7.50mm)	0.709 Dia (18.00mm)	1.457 (37.00mm)	-	Through Hole
UPB2E220MHD CAP ALUM 22UF 20% 250V RADIAL Nichicon	2,941	立即询盘	Datasheet	Bulk	UPB	Obsolete	22 µF	±20%	250 V	-	5000 Hrs @ 105°C	-25°C ~ 105°C	-	-	General Purpose	300 mA @ 120 Hz	600 mA @ 100 kHz	-	0.197 (5.00mm)	0.492 Dia (12.50mm)	0.846 (21.50mm)	-	Through Hole
UPB2E221MHD CAP ALUM 220UF 20% 250V RADIAL Nichicon	2,157	立即询盘	Datasheet	Bulk	UPB	Obsolete	220 µF	±20%	250 V	-	5000 Hrs @ 105°C	-25°C ~ 105°C	-	-	General Purpose	950 mA @ 120 Hz	1.9 A @ 100 kHz	-	0.295 (7.50mm)	0.709 Dia (18.00mm)	1.634 (41.50mm)	-	Through Hole

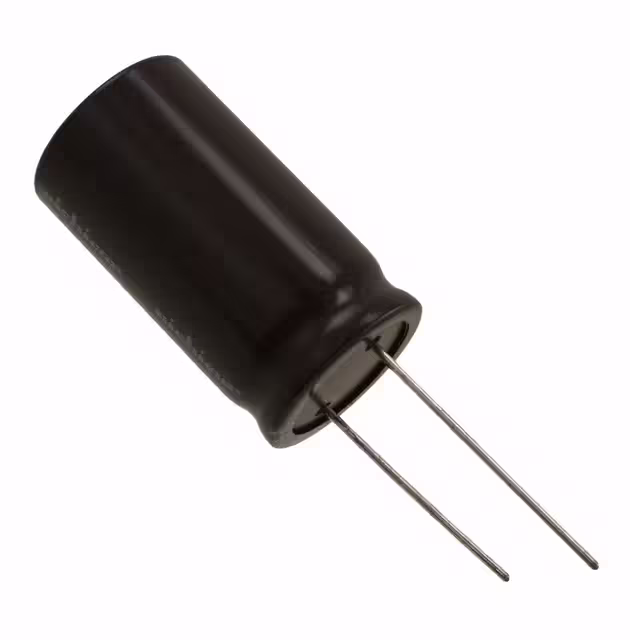

UPB2E271MRD CAP ALUM 270UF 20% 250V RADIAL Nichicon	3,966	立即询盘	Datasheet	Bulk	UPB	Obsolete	270 µF	±20%	250 V	-	5000 Hrs @ 105°C	-25°C ~ 105°C	-	-	General Purpose	1.05 A @ 120 Hz	2.1 A @ 100 kHz	-	0.394 (10.00mm)	0.866 Dia (22.00mm)	1.654 (42.00mm)	-	Through Hole

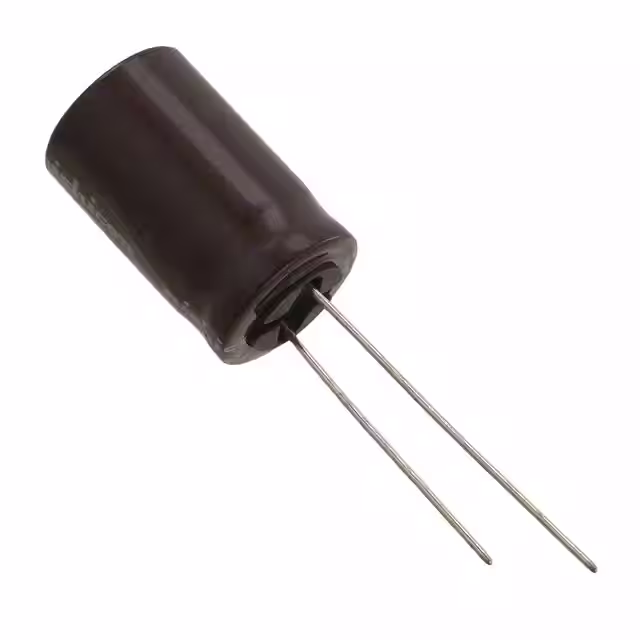

UPB2E330MHD CAP ALUM 33UF 20% 250V RADIAL Nichicon	3,356	立即询盘	Datasheet	Bulk	UPB	Obsolete	33 µF	±20%	250 V	-	5000 Hrs @ 105°C	-25°C ~ 105°C	-	-	General Purpose	300 mA @ 120 Hz	600 mA @ 100 kHz	-	0.197 (5.00mm)	0.492 Dia (12.50mm)	0.846 (21.50mm)	-	Through Hole

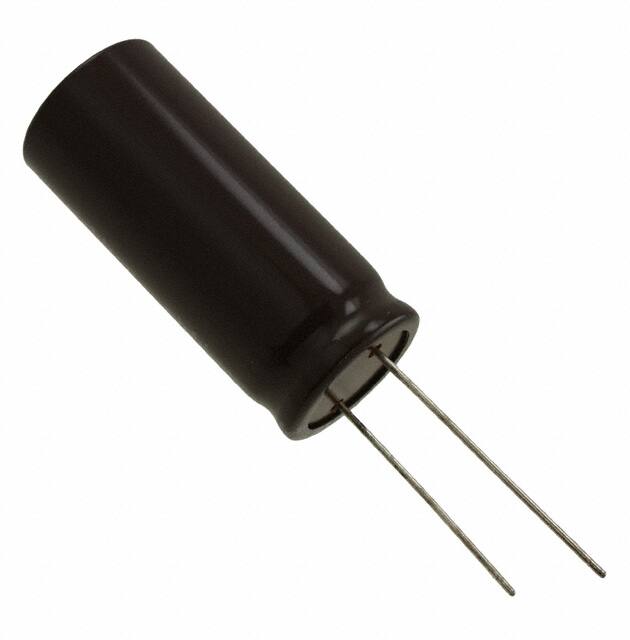

UPB2E391MRD CAP ALUM 390UF 20% 250V RADIAL Nichicon	2,881	立即询盘	Datasheet	Bulk	UPB	Obsolete	390 µF	±20%	250 V	-	5000 Hrs @ 105°C	-25°C ~ 105°C	-	-	General Purpose	1.15 A @ 120 Hz	2.3 A @ 100 kHz	-	0.394 (10.00mm)	0.866 Dia (22.00mm)	2.047 (52.00mm)	-	Through Hole

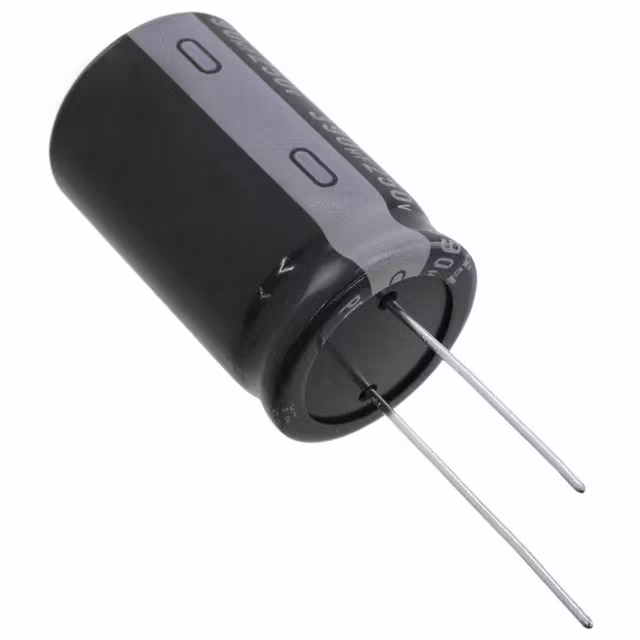

UPB2E391MRD6 CAP ALUM 390UF 20% 250V RADIAL Nichicon	2,340	立即询盘	Datasheet	Bulk	UPB	Obsolete	390 µF	±20%	250 V	-	5000 Hrs @ 105°C	-25°C ~ 105°C	-	-	General Purpose	1.15 A @ 120 Hz	2.3 A @ 100 kHz	-	0.492 (12.50mm)	0.984 Dia (25.00mm)	1.654 (42.00mm)	-	Through Hole
UPB2E470MHD CAP ALUM 47UF 20% 250V RADIAL Nichicon	3,056	立即询盘	Datasheet	Bulk	UPB	Obsolete	47 µF	±20%	250 V	-	5000 Hrs @ 105°C	-25°C ~ 105°C	-	-	General Purpose	350 mA @ 120 Hz	700 mA @ 100 kHz	-	0.197 (5.00mm)	0.492 Dia (12.50mm)	1.043 (26.50mm)	-	Through Hole
UPB2E471MRD CAP ALUM 470UF 20% 250V RADIAL Nichicon	2,261	立即询盘	Datasheet	Bulk	UPB	Obsolete	470 µF	±20%	250 V	-	5000 Hrs @ 105°C	-25°C ~ 105°C	-	-	General Purpose	1.4 A @ 120 Hz	2.8 A @ 100 kHz	-	0.492 (12.50mm)	0.984 Dia (25.00mm)	2.047 (52.00mm)	-	Through Hole
UPB2E680MHD CAP ALUM 68UF 20% 250V RADIAL Nichicon	2,138	立即询盘	Datasheet	Bulk	UPB	Obsolete	68 µF	±20%	250 V	-	5000 Hrs @ 105°C	-25°C ~ 105°C	-	-	General Purpose	500 mA @ 120 Hz	1 A @ 100 kHz	-	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.043 (26.50mm)	-	Through Hole
UPB2G100MPD CAP ALUM 10UF 20% 400V RADIAL Nichicon	3,906	立即询盘	Datasheet	Bulk	UPB	Obsolete	10 µF	±20%	400 V	-	5000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	125 mA @ 120 Hz	250 mA @ 100 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.846 (21.50mm)	-	Through Hole
