| 图片 | 型号 | 库存 | 价格 | 数量 | 规格书 | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
50THV33M6.3X8CAP ALUM 33UF 20% 50V SMD |
14,237 | 0.77 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | THV | Active | 33 µF | ±20% | 50 V | 900mOhm @ 100kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 67.5 mA @ 120 Hz | 150 mA @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
|
16THV47M6.3X8CAP ALUM 47UF 20% 16V SMD |
12,459 | 0.79 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | THV | Active | 47 µF | ±20% | 16 V | 700mOhm @ 100kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 100 mA @ 120 Hz | 200 mA @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
6.3SEV330M8X6.5CAP ALUM 330UF 20% 6.3V SMD |
13,612 | 0.83 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SEV | Active | 330 µF | ±20% | 6.3 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 210 mA @ 120 Hz | 252 mA @ 10 kHz | - | - | 0.315 Dia (8.00mm) | 0.256 (6.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
6.3SGV470M8X10.5CAP ALUM 470UF 20% 6.3V SMD |
11,183 | 0.83 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SGV | Active | 470 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 210 mA @ 120 Hz | 252 mA @ 10 kHz | - | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
200PX22MEFCT810X16CAP ALUM 22UF 20% 200V RADIAL |
11,268 | 0.84 |
立即询盘 |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | PX | Active | 22 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 105 mA @ 120 Hz | 157.5 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.689 (17.50mm) | - | Through Hole |
|
35SEV220M10X10.5CAP ALUM 220UF 20% 35V SMD |
12,479 | 0.85 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SEV | Active | 220 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 570 mA @ 120 Hz | 684 mA @ 10 kHz | - | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
50SKV100M8X10.5CAP ALUM 100UF 20% 50V SMD |
14,581 | 0.85 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SKV | Active | 100 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 200 mA @ 120 Hz | 240 mA @ 10 kHz | - | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
16SEV330M8X10.5CAP ALUM 330UF 20% 16V SMD |
13,955 | 0.85 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SEV | Active | 330 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 330 mA @ 120 Hz | - | - | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
16SGV330M10X10.5CAP ALUM 330UF 20% 16V SMD |
13,993 | 0.91 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SGV | Active | 330 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 440 mA @ 120 Hz | - | - | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
10ZLJ820MT810X12.5CAP ALUM 820UF 20% 10V RADIAL |
12,947 | 0.67 |
立即询盘 |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | ZLJ | Active | 820 µF | ±20% | 10 V | - | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.02 A @ 120 Hz | 1.7 A @ 100 kHz | 53 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.551 (14.00mm) | - | Through Hole |
|
|
25SKV330M10X10.5CAP ALUM 330UF 20% 25V SMD |
13,145 | 0.92 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SKV | Active | 330 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 450 mA @ 120 Hz | - | - | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
35ZL680MEFCG412.5X20CAP ALUM 680UF 20% 35V RADIAL |
10,927 | 0.94 |
立即询盘 |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | ZL | Active | 680 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.298 A @ 120 Hz | 2.36 A @ 100 kHz | 21 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | - | Through Hole |
|
|
16SEV470M10X10.5CAP ALUM 470UF 20% 16V SMD |
13,722 | 0.94 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SEV | Active | 470 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 690 mA @ 120 Hz | 828 mA @ 10 kHz | - | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
6.3SGV1000M10X10.5CAP ALUM 1000UF 20% 6.3V SMD |
11,200 | 0.95 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SGV | Active | 1000 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 495 mA @ 120 Hz | 594 mA @ 10 kHz | - | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
16TLV680M10X10.5CAP ALUM 680UF 20% 16V SMD |
10,725 | 0.99 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TLV | Active | 680 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 510 mA @ 120 Hz | 850 mA @ 100 kHz | 80 mOhms | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|

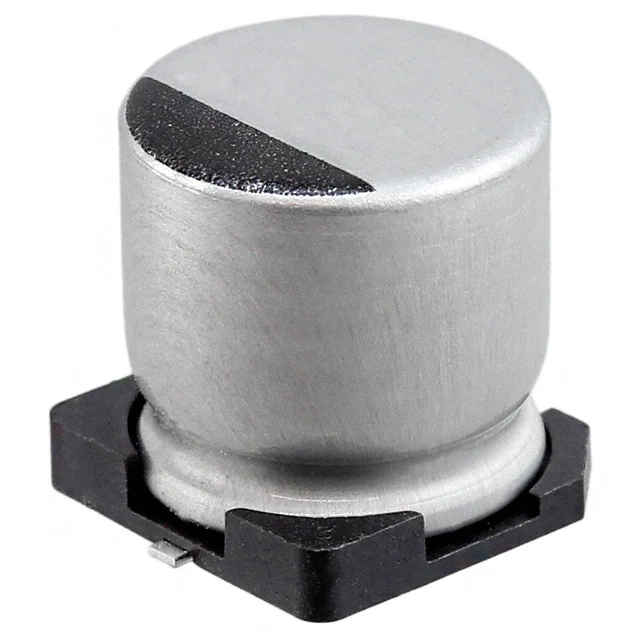

25TXV220M10X10.5CAP ALUM 220UF 20% 25V SMD |
6,974 | 1.00 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TXV | Active | 220 µF | ±20% | 25 V | 100mOhm | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 252 mA @ 120 Hz | 420 mA @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
25TXV330M10X10.5CAP ALUM 330UF 20% 25V SMD |
7,808 | 1.01 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TXV | Active | 330 µF | ±20% | 25 V | 200mOhm | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 180 mA @ 120 Hz | 300 mA @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|

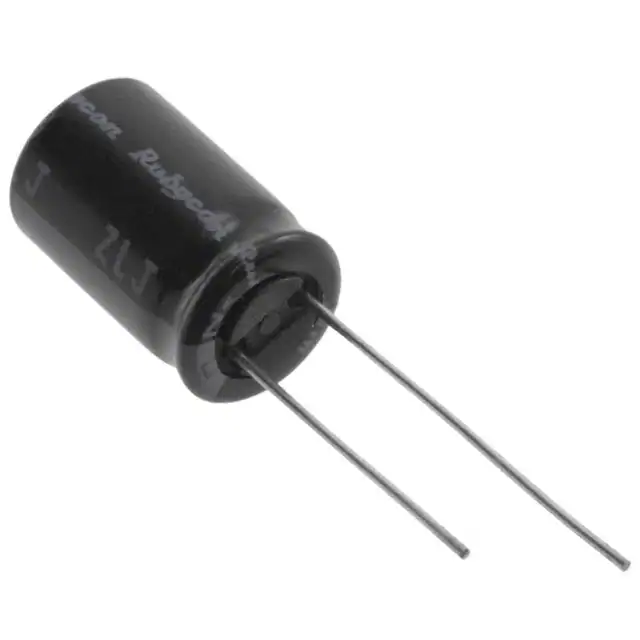

35ZLJ390MT810X16CAP ALUM 390UF 20% 35V RADIAL |
10,475 | 0.78 |
立即询盘 |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | ZLJ | Active | 390 µF | ±20% | 35 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.1 A @ 120 Hz | 2 A @ 100 kHz | 38 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.689 (17.50mm) | - | Through Hole |
|
|
63SGV22M8X10.5CAP ALUM 22UF 20% 63V SMD |
14,446 | 0.79 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SGV | Active | 22 µF | ±20% | 63 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 55 mA @ 120 Hz | 82.5 mA @ 10 kHz | - | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|

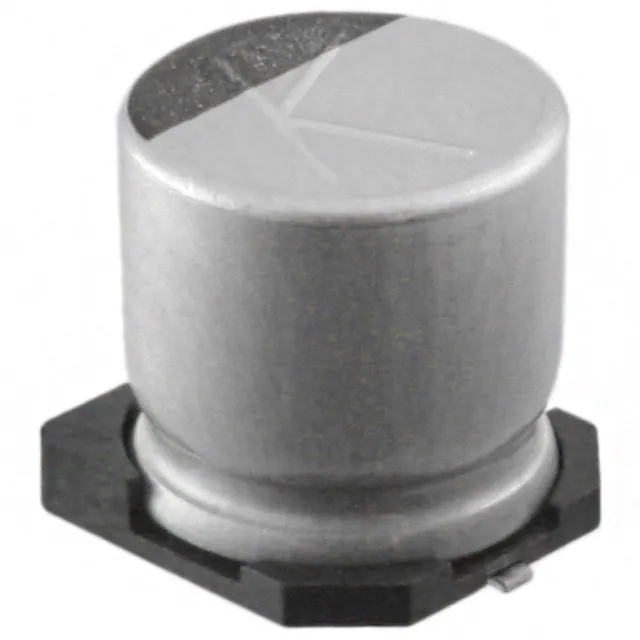

25TZV470M10X10.5CAP ALUM 470UF 20% 25V SMD |
10,886 | 0.81 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TZV | Active | 470 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 510 mA @ 120 Hz | 850 mA @ 100 kHz | 90 mOhms | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
