| 图片 | 型号 | 库存 | 价格 | 数量 | 规格书 | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

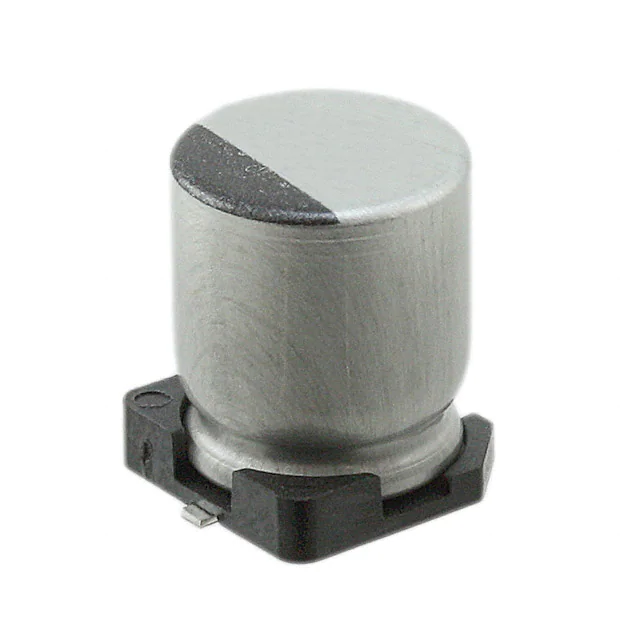

25TZV100M6.3X8CAP ALUM 100UF 20% 25V SMD |
10,413 | 0.48 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TZV | Active | 100 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 150 mA @ 120 Hz | 300 mA @ 100 kHz | 340 mOhms | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|

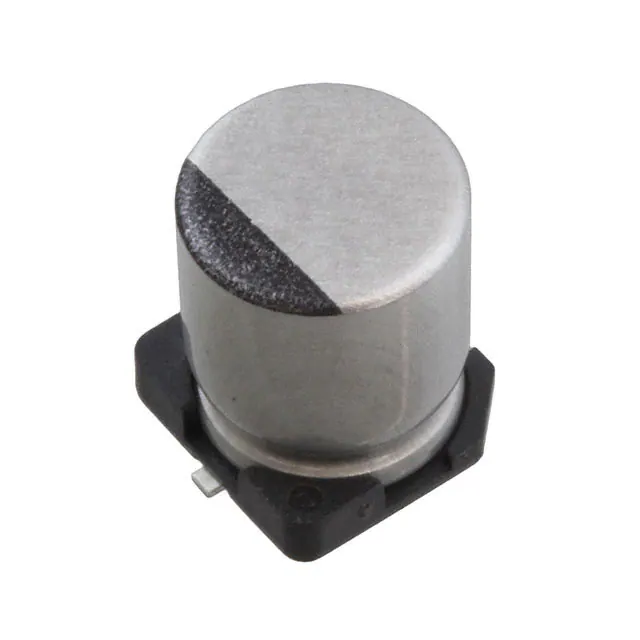

50SEV33M6.3X8CAP ALUM 33UF 20% 50V SMD |
11,105 | 0.60 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SEV | Active | 33 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 95 mA @ 120 Hz | 142.5 mA @ 10 kHz | - | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
25YXG330MEFCT810X12.5CAP ALUM 330UF 20% 25V RADIAL |
12,052 | 0.60 |
立即询盘 |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | YXG | Active | 330 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 475.75 mA @ 120 Hz | - | 80 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.551 (14.00mm) | - | Through Hole |
|
25YXF330MEFCT810X12.5CAP ALUM 330UF 20% 25V RADIAL |
11,950 | 0.60 |
立即询盘 |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | YXF | Active | 330 µF | ±20% | 25 V | - | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 406 mA @ 120 Hz | 580 mA @ 100 kHz | 160 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.551 (14.00mm) | - | Through Hole |
|
35TZV22M6.3X6.1CAP ALUM 22UF 20% 35V SMD |
11,889 | 0.60 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TZV | Active | 22 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 80 mA @ 120 Hz | 250 mA @ 100 kHz | 360 mOhms | - | 0.248 Dia (6.30mm) | 0.240 (6.10mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
6.3SJV100M6.3X6.1CAP ALUM 100UF 20% 6.3V SMD |
14,180 | 0.64 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SJV | Active | 100 µF | ±20% | 6.3 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 69 mA @ 120 Hz | 82.8 mA @ 10 kHz | - | - | 0.248 Dia (6.30mm) | 0.240 (6.10mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
6.3WXA1000MEFCT810X9CAP ALUM 1000UF 20% 6.3V RADIAL |
10,690 | 0.64 |
立即询盘 |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | WXA | Active | 1000 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 460 mA @ 120 Hz | 552 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | - | Through Hole |
|

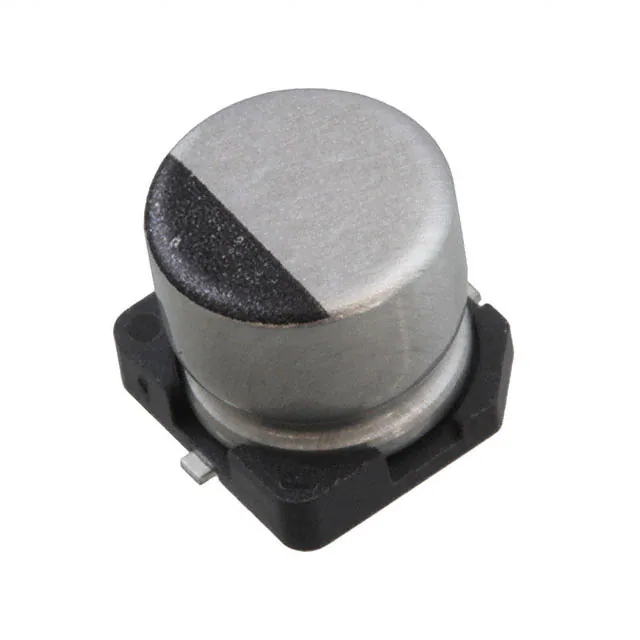

50SLV10M6.3X6.1CAP ALUM 10UF 20% 50V SMD |
14,186 | 0.65 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SLV | Active | 10 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 32 mA @ 120 Hz | - | - | - | 0.248 Dia (6.30mm) | 0.240 (6.10mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
|
35SLV22M6.3X6.1CAP ALUM 22UF 20% 35V SMD |
12,676 | 0.65 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SLV | Active | 22 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 44 mA @ 120 Hz | - | - | - | 0.248 Dia (6.30mm) | 0.240 (6.10mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
35TXV22M6.3X6.1CAP ALUM 22UF 20% 35V SMD |
10,559 | 0.66 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TXV | Active | 22 µF | ±20% | 35 V | 1Ohm | 1000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 31.5 mA @ 120 Hz | 70 mA @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.240 (6.10mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|

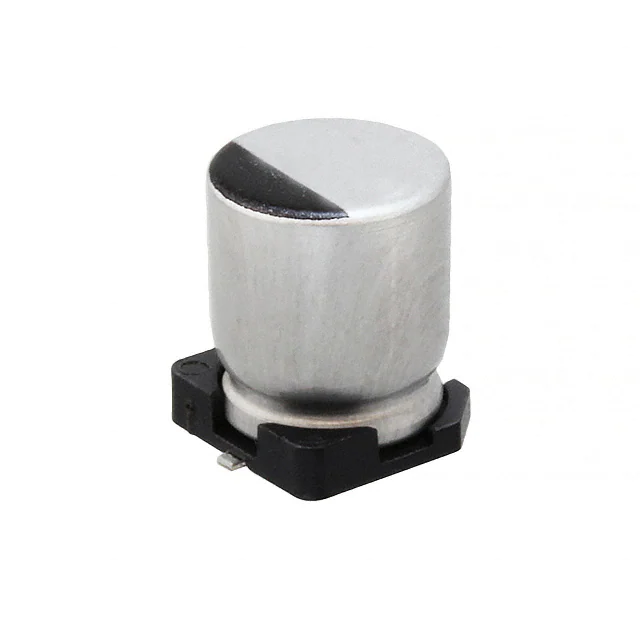

25SGV47M6.3X8CAP ALUM 47UF 20% 25V SMD |
14,733 | 0.67 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SGV | Active | 47 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 79 mA @ 120 Hz | 118.5 mA @ 10 kHz | - | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
25SGV100M8X10.5CAP ALUM 100UF 20% 25V SMD |
14,813 | 0.68 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SGV | Active | 100 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 180 mA @ 120 Hz | 216 mA @ 10 kHz | - | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
6.3SGV220M6.3X8CAP ALUM 220UF 20% 6.3V SMD |
14,270 | 0.68 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SGV | Active | 220 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 121 mA @ 120 Hz | 145.2 mA @ 10 kHz | - | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
10TXV220M6.3X8CAP ALUM 220UF 20% 10V SMD |
14,090 | 0.70 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TXV | Active | 220 µF | ±20% | 10 V | 700mOhm | 1000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 66 mA @ 120 Hz | 110 mA @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
|
35SEV47M6.3X8CAP ALUM 47UF 20% 35V SMD |
12,764 | 0.71 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SEV | Active | 47 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 105 mA @ 120 Hz | 157.5 mA @ 10 kHz | - | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
|
16SLV47M6.3X6.1CAP ALUM 47UF 20% 16V SMD |
10,985 | 0.72 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SLV | Active | 47 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 50 mA @ 120 Hz | 75 mA @ 10 kHz | - | - | 0.248 Dia (6.30mm) | 0.240 (6.10mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|

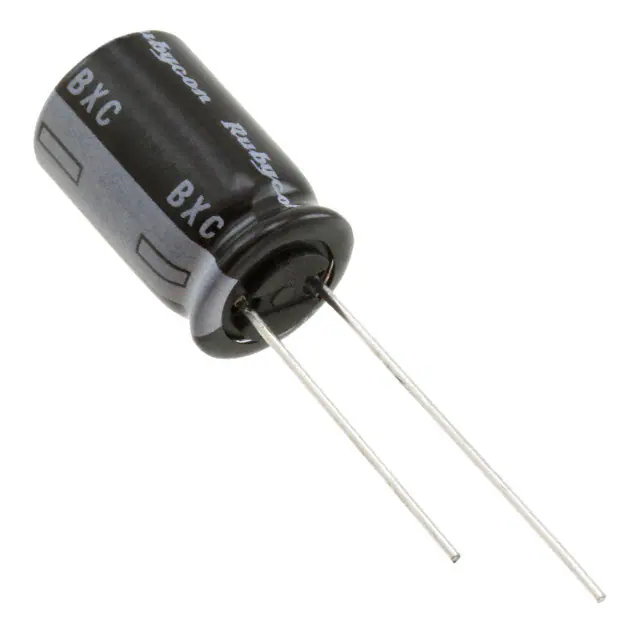

400BXC1MEFCT810X12.5CAP ALUM 1UF 20% 400V RADIAL |
10,401 | 0.73 |
立即询盘 |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | BXC | Active | 1 µF | ±20% | 400 V | - | 8000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 14 mA @ 120 Hz | 70 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.571 (14.50mm) | - | Through Hole |
|

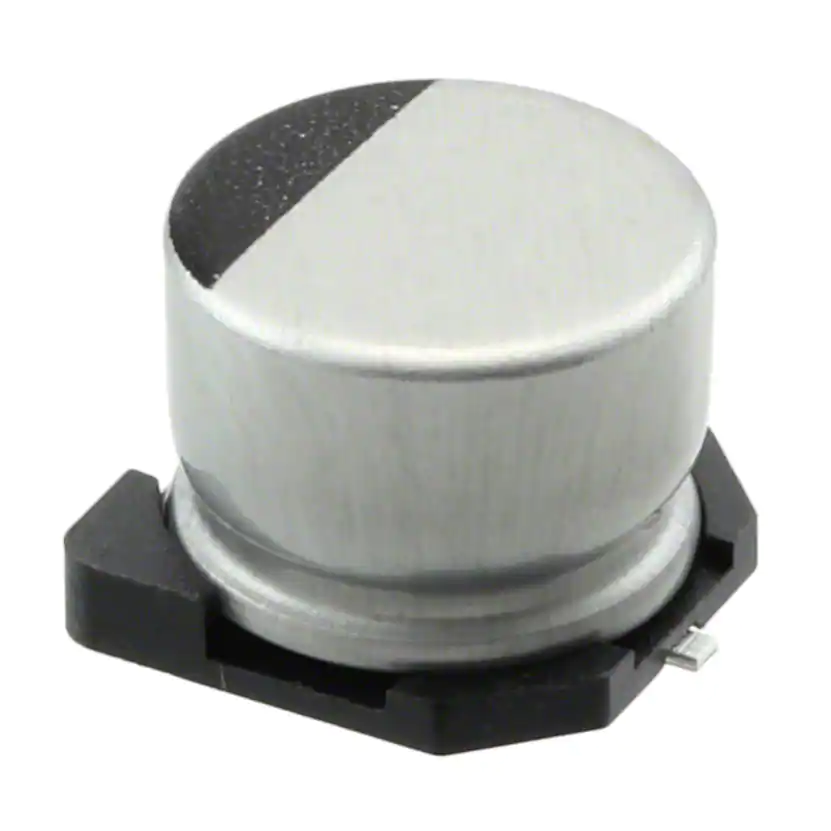

35SGV33M8X6.5CAP ALUM 33UF 20% 35V SMD |
11,916 | 0.75 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SGV | Active | 33 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 84 mA @ 120 Hz | 126 mA @ 10 kHz | - | - | 0.315 Dia (8.00mm) | 0.256 (6.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
25YXG330MEFCT78X11.5CAP ALUM 330UF 20% 25V RADIAL |
13,150 | 0.58 |
立即询盘 |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | YXG | Active | 330 µF | ±20% | 25 V | - | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
35TRV10M6.3X6.1CAP ALUM 10UF 20% 35V SMD |
10,379 | 0.59 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TRV | Active | 10 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 63 mA @ 120 Hz | 140 mA @ 100 kHz | 1 Ohms | - | 0.248 Dia (6.30mm) | 0.240 (6.10mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
