| 图片 | 型号 | 库存 | 价格 | 数量 | 规格书 | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAL213821101E3CAP ALUM 100UF 20% 50V AXIAL |
9,412 | 3.73 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | 138 AML | Active | 100 µF | ±20% | 50 V | 1.3Ohm @ 100kHz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Automotive | 230 mA @ 100 Hz | - | 300 mOhms | - | 0.394 Dia x 0.709 L (10.00mm x 18.00mm) | - | - | Through Hole |
|
|
MAL213828221E3CAP ALUM 220UF 20% 63V AXIAL |
5,258 | 3.59 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | 138 AML | Active | 220 µF | ±20% | 63 V | 500mOhm @ 100kHz | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Automotive | 560 mA @ 100 Hz | - | 290 mOhms | - | 0.492 Dia x 1.181 L (12.50mm x 30.00mm) | - | - | Through Hole |
|
MAL204225109E3CAP ALUM 10UF 350V AXIAL |
6,443 | 3.66 |
立即询盘 |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | 042 ASH | Active | 10 µF | -10%, +50% | 350 V | 15Ohm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 150 mA @ 100 Hz | - | 10 Ohms | - | 0.492 Dia x 1.181 L (12.50mm x 30.00mm) | - | - | Through Hole |
|
MAL216051101E3CAP ALUM 100UF 20% 50V RADIAL |
9,305 | 1.94 |
立即询盘 |
Datasheet |
Bulk | 160 RLA | Active | 100 µF | ±20% | 50 V | - | 1000 Hrs @ 150°C | -55°C ~ 150°C | Polar | AEC-Q200 | Automotive | 135 mA @ 100 Hz | - | 260 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.689 (17.50mm) | - | Through Hole |
|
|
MAL204226109E3CAP ALUM 10UF 400V AXIAL |
9,769 | 3.91 |
立即询盘 |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | 042 ASH | Active | 10 µF | -10%, +50% | 400 V | 7.5Ohm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 150 mA @ 100 Hz | - | 4.6 Ohms | - | 0.492 Dia x 1.181 L (12.50mm x 30.00mm) | - | - | Through Hole |
|

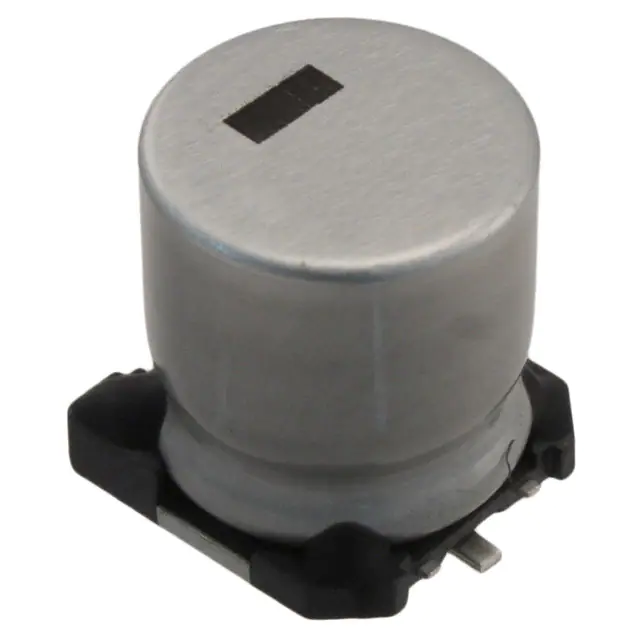

MAL215099013E3CAP ALUM 680UF 20% 35V SMD |
7,781 | 3.54 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | 150 CRZ | Active | 680 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 1.007 A @ 100 kHz | 60 mOhms | - | 0.492 Dia (12.50mm) | 0.650 (16.50mm) | 0.492 L x 0.492 W (12.50mm x 12.50mm) | Surface Mount |
|
MAL215099114E3CAP ALUM 680UF 20% 50V SMD |
8,475 | 3.69 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | 150 CRZ | Active | 680 µF | ±20% | 50 V | - | 10000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 621 mA @ 100 Hz | - | 85 mOhms | - | 0.630 Dia (16.00mm) | 0.748 (19.00mm) | 0.630 L x 0.630 W (16.00mm x 16.00mm) | Surface Mount |
|
MAL213669101E3CAP ALUM 100UF 20% 100V RADIAL |
7,311 | 2.41 |
立即询盘 |
Datasheet |
Bulk | 136 RVI | Active | 100 µF | ±20% | 100 V | - | 7000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 280 mA @ 100 Hz | - | 150 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | - | Through Hole |
|
MAL215267109E3CAP ALUM 10UF 20% 450V RADIAL |
7,464 | 2.60 |
立即询盘 |
Datasheet |
Bulk | 152 RMH | Active | 10 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 90 mA @ 100 Hz | - | 10 Ohms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | - | Through Hole |
|

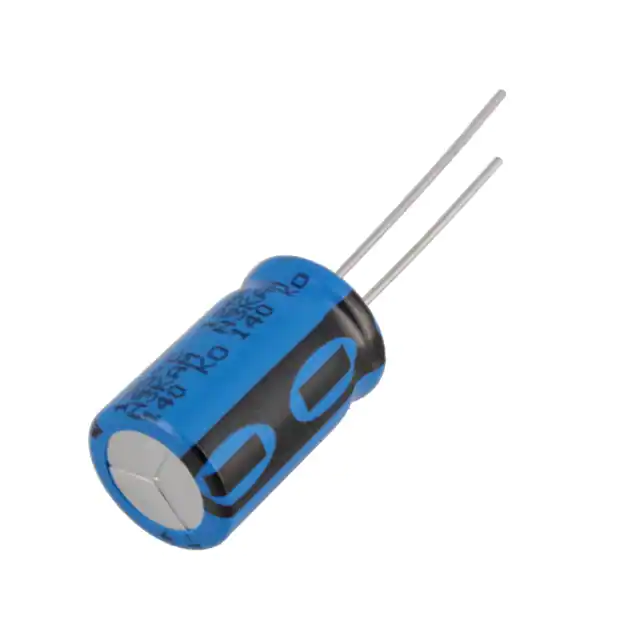

MAL214050471E3CAP ALUM 470UF 20% 35V RADIAL |
6,971 | 2.60 |
立即询盘 |
Datasheet |
Bulk | 140 RTM | Active | 470 µF | ±20% | 35 V | - | 3000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 780 mA @ 100 Hz | - | 73 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | - | Through Hole |
|
|
MAL215056222E3CAP ALUM 2200UF 20% 25V RADIAL |
6,105 | 3.62 |
立即询盘 |
Datasheet |
Bulk | 150 RMI | Active | 2200 µF | ±20% | 25 V | - | 7000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.398 A @ 100 Hz | - | 28 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
MAL212516102E3CAP ALUM 1000UF 20% 25V AXIAL |
5,858 | 3.63 |
立即询盘 |
Box | 125 ALS | Active | 1000 µF | ±20% | 25 V | 212mOhm @ 100Hz | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 490 mA @ 100 Hz | 637 mA @ 10 kHz | 260 mOhms | - | 0.394 Dia x 1.181 L (10.00mm x 30.00mm) | - | - | Through Hole | |
|
MAL212616681E3CAP ALUM 680UF 20% 25V AXIAL |
7,983 | 3.67 |
立即询盘 |
Datasheet |
Bulk | 126 ALX | Active | 680 µF | ±20% | 25 V | 278mOhm @ 100Hz | 8000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | Automotive | 490 mA @ 100 Hz | 588 mA @ 10 kHz | 119 mOhms | - | 0.394 Dia x 1.181 L (10.00mm x 30.00mm) | - | - | Through Hole |
|
|
MAL212615102E3CAP ALUM 1000UF 20% 16V AXIAL |
5,617 | 3.67 |
立即询盘 |
Datasheet |
Bulk | 126 ALX | Active | 1000 µF | ±20% | 16 V | 231mOhm @ 100Hz | 8000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | Automotive | 510 mA @ 100 Hz | 612 mA @ 10 kHz | 108 mOhms | - | 0.394 Dia x 1.181 L (10.00mm x 30.00mm) | - | - | Through Hole |
|
MAL214658471E3CAP ALUM 470UF 20% 63V RADIAL |
8,352 | 4.57 |
立即询盘 |
Datasheet |
Bulk | 146 RTI | Active | 470 µF | ±20% | 63 V | - | 4000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | - | 1.5 A @ 100 kHz | 55 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
MAL215849472E3CAP ALUM 4700UF 20% 100V SNAP |
1,376 | 21.32 |
立即询盘 |
Datasheet |
Bulk | 158 PUL-SI | Active | 4700 µF | ±20% | 100 V | 78mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.29 A @ 100 Hz | - | 73 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 2.047 (52.00mm) | - | Through Hole |
|
MAL210619472E3CAP ALUM 4700UF 100V SCREW |
2,479 | 51.65 |
立即询盘 |
Datasheet |
Bulk | 106 PED-ST | Active | 4700 µF | -10%, +30% | 100 V | 22mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 10.1 A @ 100 Hz | - | 12 mOhms | 0.874 (22.20mm) | 1.969 Dia (50.00mm) | 3.535 (89.80mm) | - | Chassis Mount |
|
MAL210119103E3CAP ALUM 10000UF 20% 100V SCREW |
1,288 | 51.92 |
立即询盘 |
Datasheet |
Bulk | 101 PHR-ST | Active | 10000 µF | ±20% | 100 V | 21mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 10.5 A @ 100 Hz | 13.65 A @ 10 kHz | 15 mOhms | 0.874 (22.20mm) | 1.969 Dia (50.00mm) | 3.299 (83.80mm) | - | Chassis Mount |
|

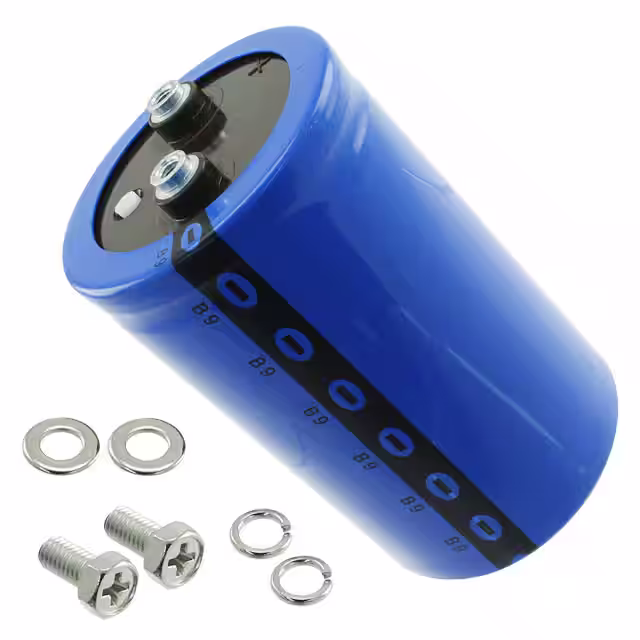

MAL210117104E3CAP ALUM 100000UF 20% 40V SCREW |
3,774 | 75.05 |
立即询盘 |
Datasheet |
Bulk | 101 PHR-ST | Active | 100000 µF | ±20% | 40 V | 7mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | 24.96 A @ 10 kHz | 6 mOhms | 1.122 (28.50mm) | 2.559 Dia (65.00mm) | 4.134 (105.00mm) | - | Chassis Mount |
|

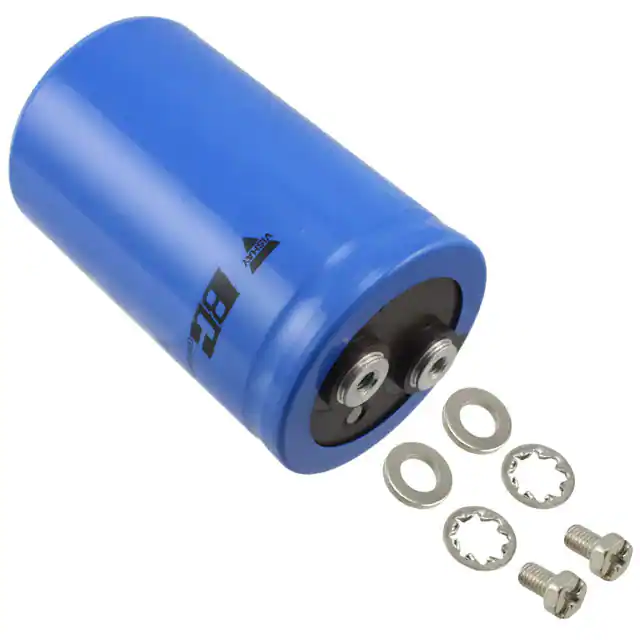

MAL210437152E3CAP ALUM 1500UF 20% 450V SCREW |
4,829 | 89.00 |
立即询盘 |
Datasheet |
Bulk | 104 PHL-ST | Active | 1500 µF | ±20% | 450 V | 77mOhm | 5000 Hrs @ 105°C | -40°C ~ 105°C | - | - | General Purpose | - | 10.95 A @ 10 kHz | 44 mOhms | 1.122 (28.50mm) | 2.559 Dia (65.00mm) | 4.339 (110.20mm) | - | Chassis Mount |
