| 图片 | 型号 | 库存 | 价格 | 数量 | 规格书 | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAL202190532E3CAP ALUM 100UF 20% 100V AXIAL |
6,061 | 3.82 |
立即询盘 |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | 021 ASM | Active | 100 µF | ±20% | 100 V | 1.3Ohm | 2500 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | 420 mA @ 10 kHz | 900 mOhms | - | 0.394 Dia x 0.984 L (10.00mm x 25.00mm) | - | - | Through Hole |
|
|
MAL202190589E3CAP ALUM 2200UF 20% 6.3V AXIAL |
5,551 | 3.82 |
立即询盘 |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | 021 ASM | Active | 2200 µF | ±20% | 6.3 V | 210mOhm | 2500 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | 852 mA @ 10 kHz | 160 mOhms | - | 0.394 Dia x 0.984 L (10.00mm x 25.00mm) | - | - | Through Hole |
|
MAL211835331E3CAP ALUM 330UF 20% 16V AXIAL |
6,278 | 4.06 |
立即询盘 |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | 118 AHT | Active | 330 µF | ±20% | 16 V | 1.21Ohm | 4000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | Automotive | - | 244.8 mA @ 10 kHz | 1.2 Ohms | - | 0.394 Dia x 0.709 L (10.00mm x 18.00mm) | - | - | Through Hole |
|
MAL203855682E3CAP ALUM 6800UF 20% 16V RADIAL |
8,940 | 4.13 |
立即询盘 |
Datasheet |
Bulk | 038 RSU | Last Time Buy | 6800 µF | ±20% | 16 V | - | 3500 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | 2.898 A @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.299 (33.00mm) | - | Through Hole |
|

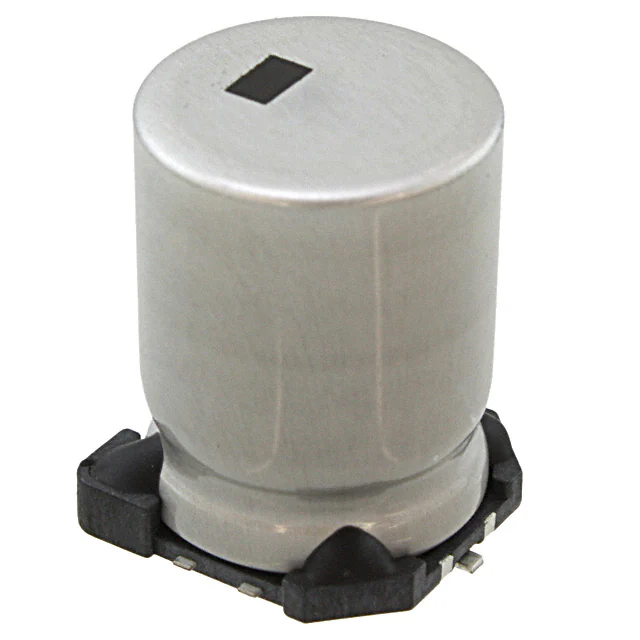

MAL216099605E3CAP ALUM 1500UF 20% 25V SMD |
8,368 | 4.17 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | 160 CLA | Active | 1500 µF | ±20% | 25 V | - | 2000 Hrs @ 150°C | -55°C ~ 150°C | Polar | AEC-Q200 | Automotive | - | 1.05 A @ 100 kHz | 35 mOhms | - | 0.630 Dia (16.00mm) | 0.866 (22.00mm) | 0.654 L x 0.654 W (16.60mm x 16.60mm) | Surface Mount |
|
|
MAL202126222E3CAP ALUM 2200UF 20% 25V AXIAL |
7,591 | 4.98 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | 021 ASM | Active | 2200 µF | ±20% | 25 V | 132mOhm @ 100Hz | 8000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.18 A @ 100 Hz | - | 70 mOhms | - | 0.591 Dia x 1.181 L (15.00mm x 30.00mm) | - | - | Through Hole |
|
MAL203859102E3CAP ALUM 1000UF 20% 100V RADIAL |
7,903 | 4.65 |
立即询盘 |
Datasheet |
Bulk | 038 RSU | Last Time Buy | 1000 µF | ±20% | 100 V | - | 3500 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | 3.254 A @ 10 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
|
MAL203851222E3CAP ALUM 2200UF 20% 50V RADIAL |
6,572 | 4.73 |
立即询盘 |
Datasheet |
Bulk | 038 RSU | Last Time Buy | 2200 µF | ±20% | 50 V | - | 3500 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | 2.168 A @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.299 (33.00mm) | - | Through Hole |
|
|
MAL203858222E3CAP ALUM 2200UF 20% 63V RADIAL |
6,152 | 4.80 |
立即询盘 |
Datasheet |
Bulk | 038 RSU | Last Time Buy | 2200 µF | ±20% | 63 V | - | 3500 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | 2.242 A @ 10 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
|
MAL212028221E3CAP ALUM 220UF 20% 63V AXIAL |
9,755 | 5.74 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | 120 ATC | Active | 220 µF | ±20% | 63 V | 149mOhm | 8000 Hrs @ 125°C | -40°C ~ 125°C | - | AEC-Q200 | Automotive | - | 2.15 A @ 10 kHz | 126 mOhms | - | 0.492 Dia x 1.181 L (12.50mm x 30.00mm) | - | - | Through Hole |
|

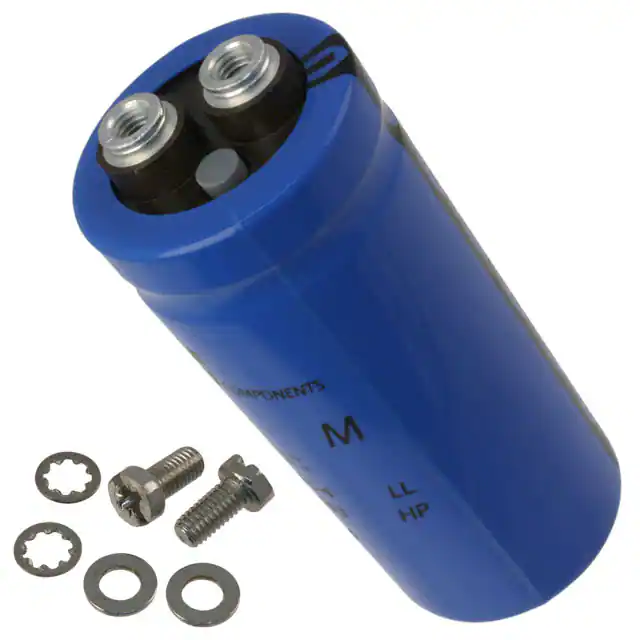

MAL210118103E3CAP ALUM 10000UF 20% 63V SCREW |
3,598 | 37.34 |
立即询盘 |
Datasheet |
Bulk | 101 PHR-ST | Active | 10000 µF | ±20% | 63 V | 27mOhm | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | 10.53 A @ 10 kHz | 19 mOhms | 0.504 (12.80mm) | 1.378 Dia (35.00mm) | 3.150 (80.00mm) | - | Chassis Mount |
|
MAL210618333E3CAP ALUM 33000UF 63V SCREW |
1,005 | 95.85 |
立即询盘 |
Datasheet |
Bulk | 106 PED-ST | Active | 33000 µF | -10%, +30% | 63 V | 8mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 23.5 A @ 100 Hz | - | 8 mOhms | 1.122 (28.50mm) | 2.559 Dia (65.00mm) | 4.402 (111.80mm) | - | Chassis Mount |
|
MAL215097902E3CAP ALUM 10UF 20% 100V SMD |
7,341 | 2.10 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | 150 CRZ | Active | 10 µF | ±20% | 100 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | - | 800 mOhms | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.394 L x 0.394 W (10.00mm x 10.00mm) | Surface Mount |
|
MAL203138101E3CAP ALUM 100UF 63V AXIAL |
6,861 | 2.80 |
立即询盘 |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | 031 AS | Active | 100 µF | -10%, +50% | 63 V | 1.28Ohm @ 100Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 300 mA @ 100 Hz | - | 550 mOhms | - | 0.394 Dia x 0.984 L (10.00mm x 25.00mm) | - | - | Through Hole |
|
|
MAL215375471E3CAP ALUM 470UF 20% 16V SMD |
7,401 | 2.57 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | 153 CRV | Active | 470 µF | ±20% | 16 V | 250mOhm @ 100kHz | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 370 mA @ 100 Hz | - | - | - | 0.394 Dia (10.00mm) | 0.563 (14.30mm) | 0.409 L x 0.409 W (10.40mm x 10.40mm) | Surface Mount |
|
|
MAL202128101E3CAP ALUM 100UF 20% 63V AXIAL |
5,990 | 2.94 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | 021 ASM | Active | 100 µF | ±20% | 63 V | 1.3Ohm @ 100Hz | 2500 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 250 mA @ 100 Hz | - | 550 mOhms | - | 0.315 Dia x 0.709 L (8.00mm x 18.00mm) | - | - | Through Hole |
|
MAL219051101E3CAP ALUM 100UF 20% 50V RADIAL |
7,203 | 1.41 |
立即询盘 |
Datasheet |
Bulk | 190 RTL | Active | 100 µF | ±20% | 50 V | - | 2500 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 280 mA @ 100 Hz | 560 mA @ 100 kHz | 175 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.531 (13.50mm) | - | Through Hole |
|
MAL213651101E3CAP ALUM 100UF 20% 50V RADIAL |
5,733 | 1.55 |
立即询盘 |
Datasheet |
Bulk | 136 RVI | Active | 100 µF | ±20% | 50 V | - | 4000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 240 mA @ 100 Hz | - | 200 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.531 (13.50mm) | - | Through Hole |
|
MAL213825221E3CAP ALUM 220UF 20% 16V AXIAL |
5,342 | 3.34 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | 138 AML | Active | 220 µF | ±20% | 16 V | 1.2Ohm @ 100kHz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Automotive | 230 mA @ 100 Hz | - | 350 mOhms | - | 0.315 Dia x 0.709 L (8.00mm x 18.00mm) | - | - | Through Hole |
|
MAL215060221E3CAP ALUM 220UF 20% 35V RADIAL |
7,583 | 1.62 |
立即询盘 |
Datasheet |
Bulk | 150 RMI | Active | 220 µF | ±20% | 35 V | - | 4000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 474.5 mA @ 100 Hz | - | 97 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.512 (13.00mm) | - | Through Hole |
