| 图片 | 型号 | 库存 | 价格 | 数量 | 规格书 | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DAT71275-HRRELAY REED 7.5KV 12V SPST-NO |
2,518 | 46.89 |
立即询盘 |
Datasheet |
Bulk | D-HR | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 2 A | 5000VAC, 5000VDC - Max | 80 mA | Non Latching | - | PC Pin | - | 9 VDC | 1.25 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|
DAT72405F-HRRELAY REED 5KV 24V SPST-NO |
3,073 | 47.41 |
立即询盘 |
Datasheet |
Bulk | D-HR | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 2 A | 3500VAC, 3500VDC - Max | 30.8 mA | Non Latching | - | PC Pin, Wire Leads | - | 20 VDC | 4 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|
|
DAT71205PURELAY REED SPST-NO 5KV 12V |
2,815 | 47.41 |
立即询盘 |
Datasheet |
Bulk | DA | Active | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 2 A | 3500VAC, 3500VDC - Max | 80 mA | Non Latching | - | Solder Turret | - | 9 VDC | 1.25 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|
DAT200-24RELAY REED SPST-NO 3A 24V |
3,854 | 53.97 |
立即询盘 |
Datasheet |
Bulk | D200 | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 3 A | 2500VAC, 2500VDC - Max | 31 mA | Non Latching | - | PC Pin | - | 20 VDC | 4 VDC | 6 ms | 1 ms | -20°C ~ 70°C |
|
|
DBR70575-HRRELAY REED 7.5KV 5V SPST-NC |
1,826 | 54.27 |
立即询盘 |
Datasheet |
Bulk | D-HR | Active | Through Hole | 5VDC | SPST-NC (1 Form B) | 3 A | 1000VAC, 1000VDC - Max | 132 mA | Non Latching | - | PC Pin | - | 3.7 VDC | 0.5 VDC | 2 ms | 3 ms | -20°C ~ 70°C |
|

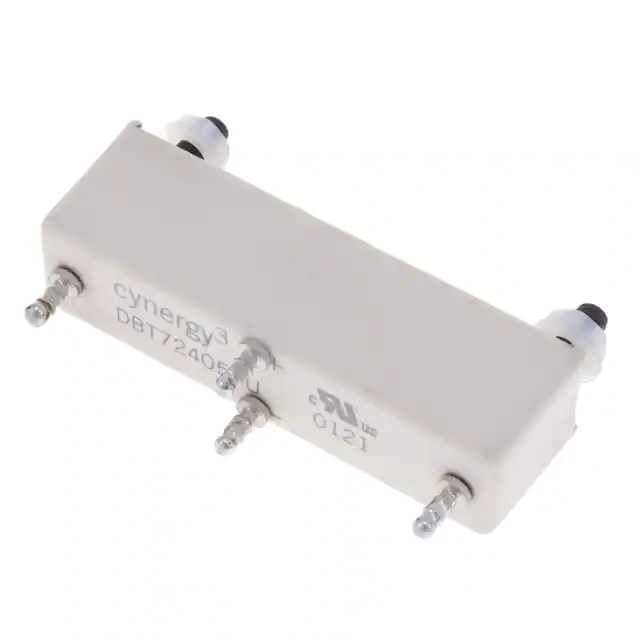

DBT72405PURELAY REED SPST-NC 5KV 24V |
4,570 | 55.44 |
立即询盘 |
Bulk | DB | Active | Chassis Mount | 24VDC | SPST-NC (1 Form B) | 2 A | 3500VAC, 3500VDC - Max | 25.9 mA | Non Latching | - | Solder Turret | - | 20 VDC | 4 VDC | 2 ms | 3 ms | -20°C ~ 70°C | |
|
DAT71210URELAY REED SPST-NO 2A 12V |
4,371 | 56.29 |
立即询盘 |
Datasheet |
Bulk | DA | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 2 A | 7000VAC, 7000VDC - Max | 80 mA | Non Latching | - | PC Pin | - | 9 VDC | 1.25 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|
|
DAT71275F-HRRELAY REED 7.5KV 12V SPST-NO |
3,145 | 57.58 |
立即询盘 |
Datasheet |
Bulk | D-HR | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 2 A | 5000VAC, 5000VDC - Max | 80 mA | Non Latching | - | PC Pin, Wire Leads | - | 9 VDC | 1.25 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|
DAR70510PRELAY REED SPST-NO 3A 5V |
1,611 | 57.62 |
立即询盘 |
Datasheet |
Tray | DA | Active | Chassis Mount | 5VDC | SPST-NO (1 Form A) | 3 A | 1000VAC, 1000VDC - Max | 179 mA | Non Latching | - | Solder Turret | - | 3.7 VDC | 0.5 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|
DAR72410SRELAY REED SPST-NO 3A 24V |
1,622 | 57.62 |
立即询盘 |
Datasheet |
Tray | DA | Active | Chassis Mount | 24VDC | SPST-NO (1 Form A) | 3 A | 1000VAC, 1000VDC - Max | 30.7 mA | Non Latching | - | Quick Connect - 0.250 (6.3mm) | - | 20 VDC | 4 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|

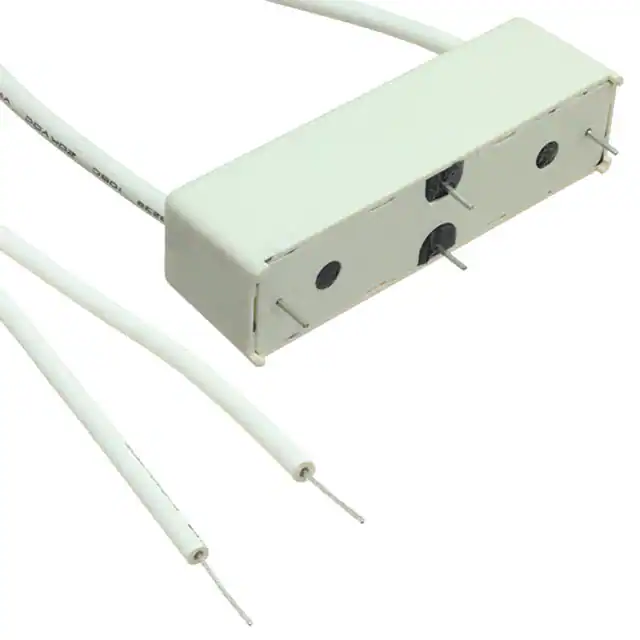

DAT70510FRELAY REED SPST-NO 2A 5V |
2,277 | 60.09 |
立即询盘 |
Datasheet |
Tray | DA | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 2 A | 7000VAC, 7000VDC - Max | 179 mA | Non Latching | - | PC Pin, Wire Leads | - | 3.7 VDC | 0.5 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|

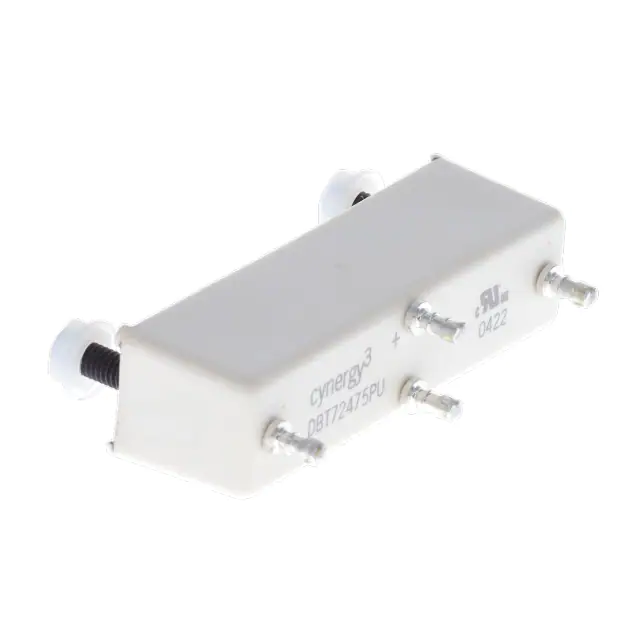

DBT72475PURELAY REED SPST-NC 7.5KV 24V |
3,774 | 67.31 |
立即询盘 |
Datasheet |
Bulk | DB | Active | Chassis Mount | 24VDC | SPST-NC (1 Form B) | 2 A | 5000VAC, 5000VDC - Max | 25.9 mA | Non Latching | - | Solder Turret | - | 20 VDC | 4 VDC | 2 ms | 3 ms | -20°C ~ 70°C |
|
|
DBT71210URELAY REED SPST-NC 2A 12V |
1,308 | 68.01 |
立即询盘 |
Datasheet |
Bulk | DB | Active | Through Hole | 12VDC | SPST-NC (1 Form B) | 2 A | 7000VAC, 7000VDC - Max | 50 mA | Non Latching | - | PC Pin | - | 9 VDC | 1.25 VDC | 2 ms | 3 ms | -20°C ~ 70°C |
|
|
DAT72410FURELAY REED SPST-NO 2A 24V |
2,217 | 69.12 |
立即询盘 |
Datasheet |
Bulk | DA | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 2 A | 7000VAC, 7000VDC - Max | 30.7 mA | Non Latching | - | PC Pin, Wire Leads | - | 20 VDC | 4 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|
|
DBT72410PRELAY REED SPST-NC 2A 24V |
2,162 | 70.30 |
立即询盘 |
Datasheet |
Bulk | DB | Active | Chassis Mount | 24VDC | SPST-NC (1 Form B) | 2 A | 7000VAC, 7000VDC - Max | 25.9 mA | Non Latching | - | Solder Turret | - | 20 VDC | 4 VDC | 2 ms | 3 ms | -20°C ~ 70°C |
|

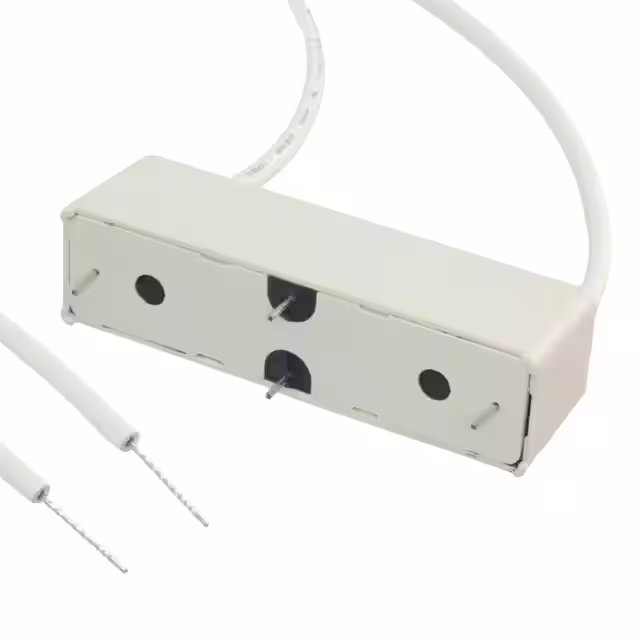

DBT71210FURELAY REED SPST-NC 2A 12V |
3,115 | 80.85 |
立即询盘 |
Datasheet |
Bulk | DB | Active | Through Hole | 12VDC | SPST-NC (1 Form B) | 2 A | 7000VAC, 7000VDC - Max | 50 mA | Non Latching | - | PC Pin, Wire Leads | - | 9 VDC | 1.25 VDC | 2 ms | 3 ms | -20°C ~ 70°C |
|
DAT71215-HRRELAY REED SPST-NO 2A 12V |
1,619 | 81.93 |
立即询盘 |
Datasheet |
Tray | D-HR | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 2 A | 10000VAC, 10000VDC - Max | 126 mA | Non Latching | - | PC Pin | - | 9 VDC | 1.25 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|
|
DAT72415-HRRELAY REED SPST-NO 2A 24V |
1,747 | 81.93 |
立即询盘 |
Datasheet |
Tray | D-HR | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 2 A | 10000VAC, 10000VDC - Max | 68.6 mA | Non Latching | - | PC Pin | - | 20 VDC | 4 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|
|
DAT71215PRELAY REED SPST-NO 2A 12V |
2,881 | 82.40 |
立即询盘 |
Datasheet |
Tray | DA | Active | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 2 A | 10000VAC, 10000VDC - Max | 126 mA | Non Latching | - | Solder Turret | - | 9 VDC | 1.25 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|
24HV1A100HV REED RELAY SPST NO 10KV 24V |
4,163 | 84.19 |
立即询盘 |
Datasheet |
Bulk | XXHV | Active | Chassis Mount | 24VDC | SPST-NO (1 Form A) | 3 A | 5000VDC - Max | 60 mA | Non Latching | - | Solder Turret | - | 19 VDC | 2 VDC | - | - | - |
