| 图片 | 型号 | 库存 | 价格 | 数量 | 规格书 | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

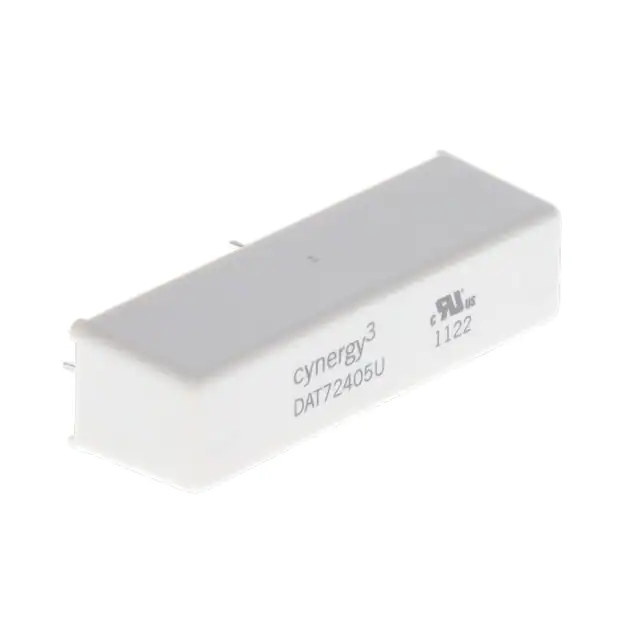

DAT72405URELAY REED SPST-NO 5KV 24V |
3,382 | 38.62 |
立即询盘 |
Datasheet |
Bulk | DA | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 2 A | 3500VAC, 3500VDC - Max | 30.8 mA | Non Latching | - | PC Pin | - | 20 VDC | 4 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|

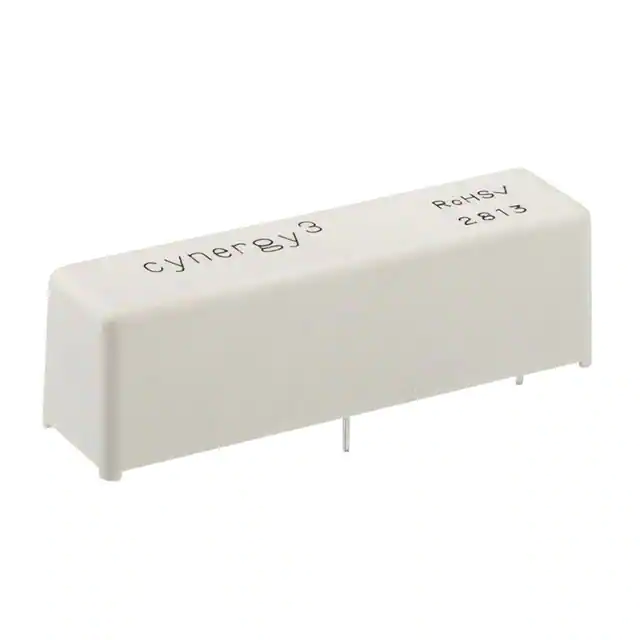

DAT71210-HRRELAY REED SPST-NO 2A 12V |
3,727 | 56.29 |
立即询盘 |
Datasheet |
Tray | D-HR | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 2 A | 7000VAC, 7000VDC - Max | 80 mA | Non Latching | - | PC Pin | - | 9 VDC | 1.25 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|
DBT72410URELAY REED SPST-NC 2A 24V |
1,511 | 68.01 |
立即询盘 |
Datasheet |
Bulk | DB | Active | Through Hole | 24VDC | SPST-NC (1 Form B) | 2 A | 7000VAC, 7000VDC - Max | 25.9 mA | Non Latching | - | PC Pin | - | 20 VDC | 4 VDC | 2 ms | 3 ms | -20°C ~ 70°C |
|
DBT72410FRELAY REED SPST-NC 2A 24V |
3,375 | 70.30 |
立即询盘 |
Datasheet |
Bulk | DB | Active | Through Hole | 24VDC | SPST-NC (1 Form B) | 2 A | 7000VAC, 7000VDC - Max | 25.9 mA | Non Latching | - | PC Pin, Wire Leads | - | 20 VDC | 4 VDC | 2 ms | 3 ms | -20°C ~ 70°C |
|
DBT72410SRELAY REED SPST-NC 2A 24V |
3,343 | 70.30 |
立即询盘 |
Datasheet |

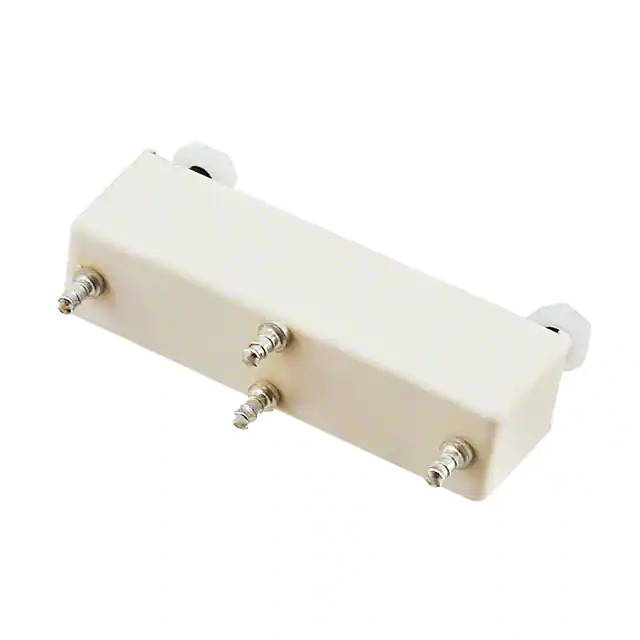

Bulk | DB | Active | Chassis Mount | 24VDC | SPST-NC (1 Form B) | 2 A | 7000VAC, 7000VDC - Max | 25.9 mA | Non Latching | - | Quick Connect - 0.250 (6.3mm) | - | 20 VDC | 4 VDC | 2 ms | 3 ms | -20°C ~ 70°C |
|
DAT72415PRELAY REED SPST-NO 2A 24V |
1,589 | 82.40 |
立即询盘 |
Datasheet |
Tray | DA | Active | Chassis Mount | 24VDC | SPST-NO (1 Form A) | 2 A | 10000VAC, 10000VDC - Max | 68.6 mA | Non Latching | - | Solder Turret | - | 20 VDC | 4 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|
S8-1204RELAY REED SPST 1A 12V |
2,733 | 13.54 |
立即询盘 |
Datasheet |
Bulk | S8 | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 350VDC - Max | 16 mA | Non Latching | - | PC Pin | - | 9.6 VDC | 2 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C |
|
S2-12PRELAY REED SPST 700MA 12V |
2,260 | 14.13 |
立即询盘 |
Datasheet |
Bulk | S2 | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 700 mA | 300VAC, 350VDC - Max | 12 mA | Non Latching | - | Axial | - | 9 VDC | 2 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C |
|
|
S2-24PRELAY REED SPST 700MA 24V |
2,101 | 14.13 |
立即询盘 |
Datasheet |
Bulk | S2 | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 700 mA | 300VAC, 350VDC - Max | 24 mA | Non Latching | - | Axial | - | 19 VDC | 4 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C |
|
|
S8-0504URELAY REED SPST 1A 5V UL |
2,328 | 15.55 |
立即询盘 |
Datasheet |
Bulk | S8 | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 350VDC - Max | 41.7 mA | Non Latching | - | PC Pin | - | 4 VDC | 1 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C |
|
|
S2-05PRELAY REED SPST 700MA 5V |
4,327 | 14.13 |
立即询盘 |
Datasheet |
Bulk | S2 | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 700 mA | 300VAC, 350VDC - Max | 31.3 mA | Non Latching | - | Axial | - | 3.7 VDC | 1 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C |
|
|
S2-05ERELAY REED SPST 1A 5V |
4,266 | 19.20 |
立即询盘 |
Datasheet |
Bulk | S2 | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 350VDC - Max | 31.3 mA | Non Latching | - | Axial | - | 3.7 VDC | 1 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C |
|

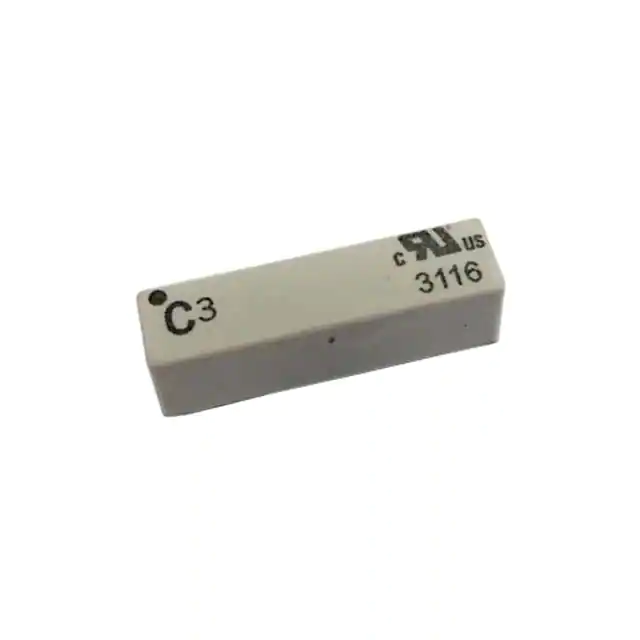

S1-0504RELAY REED 4KV SPST 5V SIP |
1,124 | 21.37 |
立即询盘 |
Datasheet |
Bulk | S1 | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 350VDC - Max | 27.8 mA | Non Latching | - | PC Pin | - | 4 VDC | 1.25 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C |
|
S1-1204MRELAY REED 4KV SPST 12V SIP SCRE |
2,869 | 22.25 |
立即询盘 |
Datasheet |
Bulk | S1 | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 350VDC - Max | 24 mA | Non Latching | EMI Shielded | PC Pin | - | 10.8 VDC | 1.25 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C |
|
|
S1-2404MRELAY REED 4KV SPST 24V SIP SCRE |
1,971 | 22.25 |
立即询盘 |
Datasheet |
Bulk | S1 | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 350VDC - Max | 24 mA | Non Latching | EMI Shielded | PC Pin | - | 16 VDC | 1.25 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C |
|
|
S1-2404DRELAY REED 4KV SPST 24V SIP W/DI |
4,248 | 22.25 |
立即询盘 |
Datasheet |
Bulk | S1 | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 350VDC - Max | 24 mA | Non Latching | Diode | PC Pin | - | 16 VDC | 1.25 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C |
|
S1-24-2ADRELAY REED TWIN N/O 1.5KV 24V |
2,326 | 23.33 |
立即询盘 |
Datasheet |
Bulk | S1 | Active | Through Hole | 24VDC | SPST-NO (1 Form A) x 2 | 500 mA | 1000VDC - Max | 12 mA | Non Latching | Diode | PC Pin | - | 18 VDC | 2.4 VDC | 0.75 ms | 0.3 ms | -40°C ~ 85°C |
|
|
S1-24-2ADMRELAY REED TWIN N/O 1.5KV 24V |
1,889 | 24.48 |
立即询盘 |
Datasheet |
Bulk | S1 | Active | Through Hole | 24VDC | SPST-NO (1 Form A) x 2 | 500 mA | 1000VDC - Max | 12 mA | Non Latching | Diode, EMI Shielded | PC Pin | - | 18 VDC | 2.4 VDC | 0.75 ms | 0.3 ms | -40°C ~ 85°C |
|
|

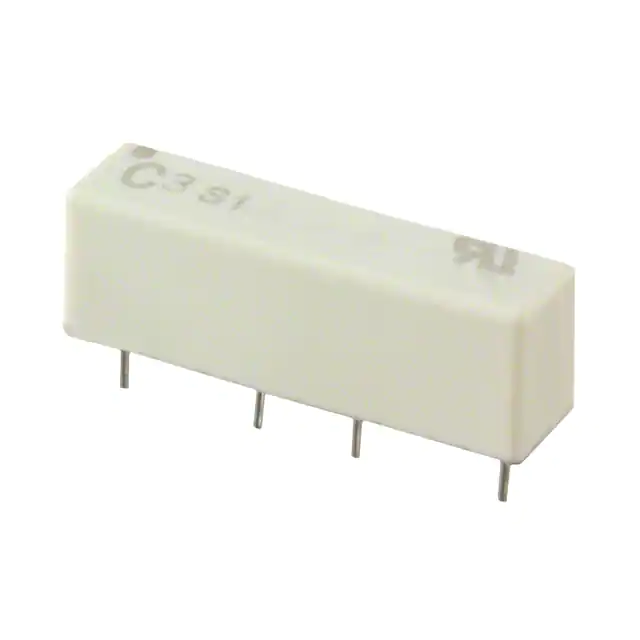

S1-05-BRELAY REED 1 N/C 1.5KV 5V |
1,467 | 25.12 |
立即询盘 |
Datasheet |
Bulk | S1 | Active | Through Hole | 5VDC | SPST-NC (1 Form B) | 500 mA | 1000VDC - Max | 6.4 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.5 VDC | - | - | -40°C ~ 85°C |
|
S1-12-BRELAY REED 1 N/C 1.5KV 12V |
4,669 | 25.12 |
立即询盘 |
Datasheet |
Bulk | S1 | Active | Through Hole | 12VDC | SPST-NC (1 Form B) | 500 mA | 1000VDC - Max | 6 mA | Non Latching | - | PC Pin | - | 9 VDC | 1.2 VDC | - | - | -40°C ~ 85°C |
