| 图片 | 型号 | 库存 | 价格 | 数量 | 规格书 | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SIL05-1A72-71LRELAY REED SPST 0.5A 5V |
7,412 | 4.28 |
立即询盘 |
Datasheet |
Tube | SIL | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.5 VDC | 0.75 VDC | 0.7 ms | 0.1 ms | -20°C ~ 70°C |
|
|
SIL12-1A72-71DRELAY REED SPST 0.5A 12V |
8,167 | 4.56 |
立即询盘 |
Datasheet |
Tube | SIL | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | Diode | PC Pin | - | 8.4 VDC | 1.8 VDC | 0.7 ms | 0.1 ms | -20°C ~ 70°C |
|
DIP12-1A72-12DRELAY REED SPST 1A 12V |
8,599 | 4.58 |
立即询盘 |
Datasheet |
Tube | DIP | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 1 A | 200VAC, 200VDC - Max | 12 mA | Non Latching | Diode | PC Pin | - | 8.4 VDC | 1.8 VDC | 0.5 ms | 0.1 ms | -20°C ~ 70°C |
|
|
SIL24-1A72-71LRELAY REED SPST 0.5A 24V |
8,495 | 4.58 |
立即询盘 |
Datasheet |
Tube | SIL | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 16.8 VDC | 3.6 VDC | 0.7 ms | 0.1 ms | -20°C ~ 70°C |
|
|
SIL24-1A72-71DRELAY REED SPST 0.5A 24V |
6,680 | 4.63 |
立即询盘 |
Datasheet |
Tube | SIL | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | Diode | PC Pin | - | 16.8 VDC | 3.6 VDC | 0.7 ms | 0.1 ms | -20°C ~ 70°C |
|

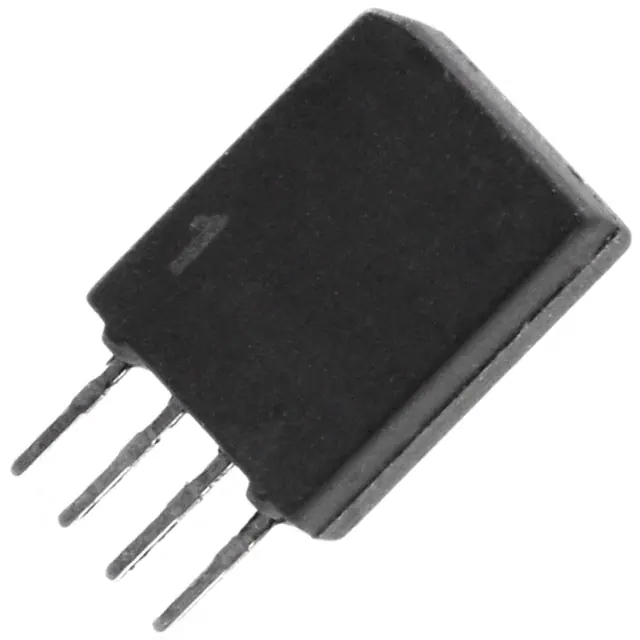

UMS05-1A80-75LRELAY REED SPST 500MA 5V |
7,912 | 6.25 |
立即询盘 |
Datasheet |
Tube | UMS | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 170VAC, 170VDC - Max | 12.5 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.5 VDC | 0.2 ms | 0.1 ms | -20°C ~ 85°C |
|
MS05-1A87-75LHRRELAY REED SPST 500MA 5V |
9,524 | 6.50 |
立即询盘 |
Datasheet |
Tube | MS | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.75 VDC | 0.5 ms | 0.1 ms | -20°C ~ 70°C |
|
|
DIP12-2A72-21DRELAY REED DPST 1A 12V |
8,882 | 6.89 |
立即询盘 |
Datasheet |
Tube | DIP | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 1 A | 200VAC, 200VDC - Max | 24 mA | Non Latching | Diode | PC Pin | - | 8.4 VDC | 1.8 VDC | 0.5 ms | 0.1 ms | -20°C ~ 70°C |
|
|
DIP12-1C90-51DRELAY REED SPDT 500MA 12V |
7,542 | 9.18 |
立即询盘 |
Datasheet |
Tube | DIP | Active | Through Hole | 12VDC | SPDT (1 Form C) | 500 mA | 175VAC, 175VDC - Max | 24 mA | Non Latching | Diode | PC Pin | - | 8.4 VDC | 1.8 VDC | 0.7 ms | 1.5 ms | -20°C ~ 70°C |
|
SHV05-1A85-78L4KRELAY REED SPST 1A 5V |
4,062 | 10.84 |
立即询盘 |
Datasheet |
Tube | SHV | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 35.7 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.5 VDC | 1.1 ms | 0.1 ms | -40°C ~ 100°C |
|
|
SHV12-1A85-78L4KRELAY REED SPST 1A 12V |
4,569 | 11.64 |
立即询盘 |
Datasheet |
Tube | SHV | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 24 mA | Non Latching | - | PC Pin | - | 8.4 VDC | 1.8 VDC | 1.1 ms | 0.1 ms | -40°C ~ 100°C |
|

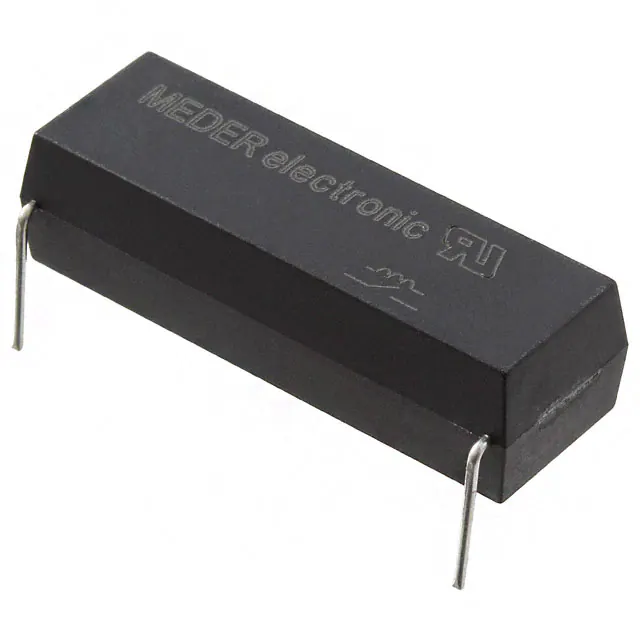

KT12-1A-40L-THTREED RELAY 1 FORM A 12V TH |
1,658 | 11.88 |
立即询盘 |
Datasheet |
Tube | KT | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 25 mA | Non Latching | - | PC Pin | Sealed - Fully | 9 VDC | 1 VDC | - | - | -40°C ~ 100°C |
|

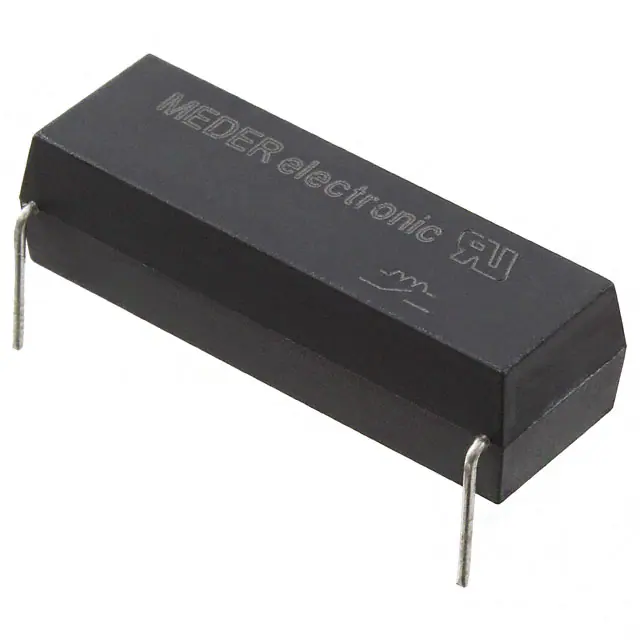

KT24-1A-40L-THTREED RELAY 1 FORM A 24V TH |
1,584 | 12.17 |
立即询盘 |
Datasheet |
Tube | KT | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 13.3 mA | Non Latching | - | PC Pin | Sealed - Fully | 16 VDC | 2.9 VDC | - | - | -40°C ~ 100°C |
|

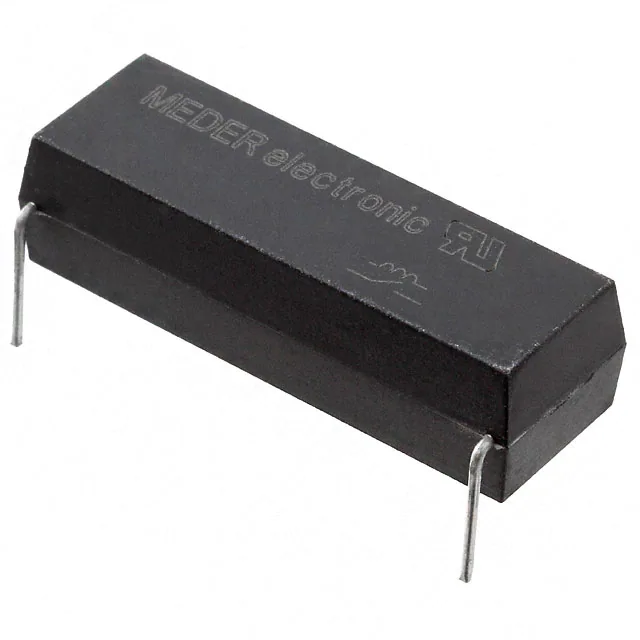

KT05-1A-40L-THTREED RELAY 1 FORM A 5V TH |
1,948 | 12.40 |
立即询盘 |
Datasheet |
Tube | KT | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 63 mA | Non Latching | - | PC Pin | Sealed - Fully | 3.5 VDC | 0.5 VDC | - | - | -40°C ~ 100°C |
|
HE24-1A83-02RELAY REED SPST 3A 24V |
1,521 | 66.35 |
立即询盘 |
Datasheet |
Tube | HE | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 3 A | 7500VAC, 7500VDC - Max | 23.1 mA | Non Latching | - | PC Pin | - | 18 VDC | 2.5 VDC | 3 ms | 1.5 ms | -20°C ~ 70°C |
|

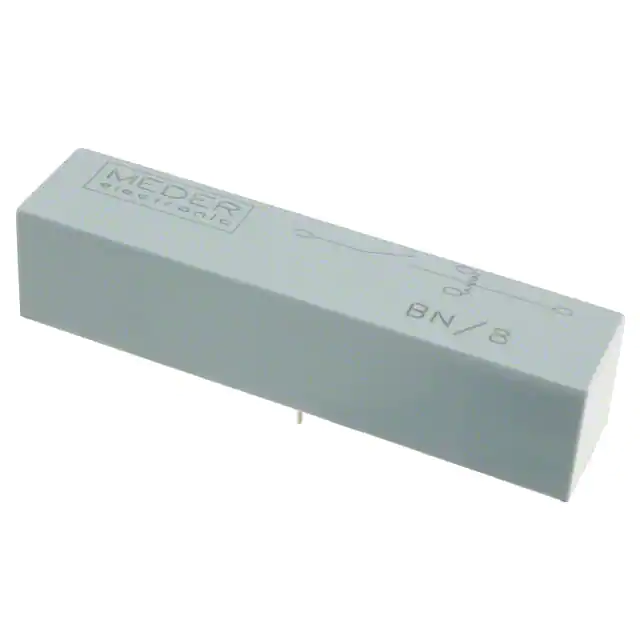

HE12-1A69-02RELAY REED SPST 3A 12V |
3,161 | 70.73 |
立即询盘 |
Datasheet |
Bulk | HE | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 3 A | 10000VAC, 10000VDC - Max | 46.2 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 3 ms | 1.5 ms | -20°C ~ 70°C |
|

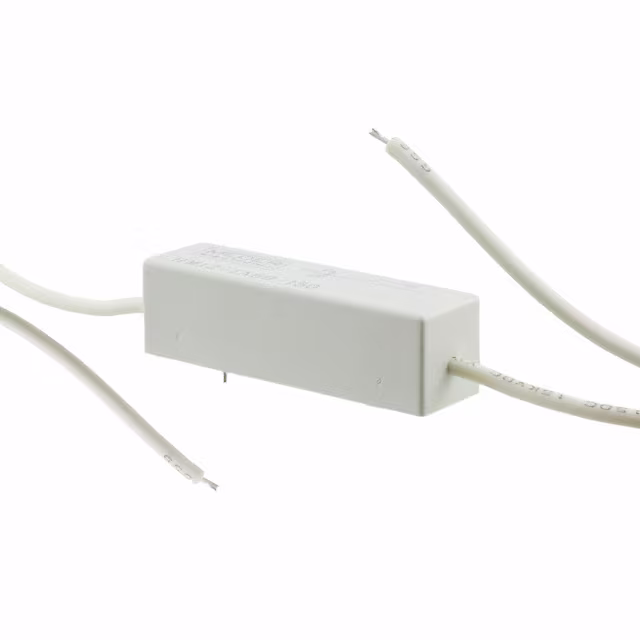

HM12-1A69-150RELAY REED SPST 3A 12V |
4,320 | 73.55 |
立即询盘 |
Datasheet |
Bulk | HM | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 3 A | 10000VAC, 10000VDC - Max | 80 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 3 ms | 1.5 ms | -20°C ~ 70°C |
|

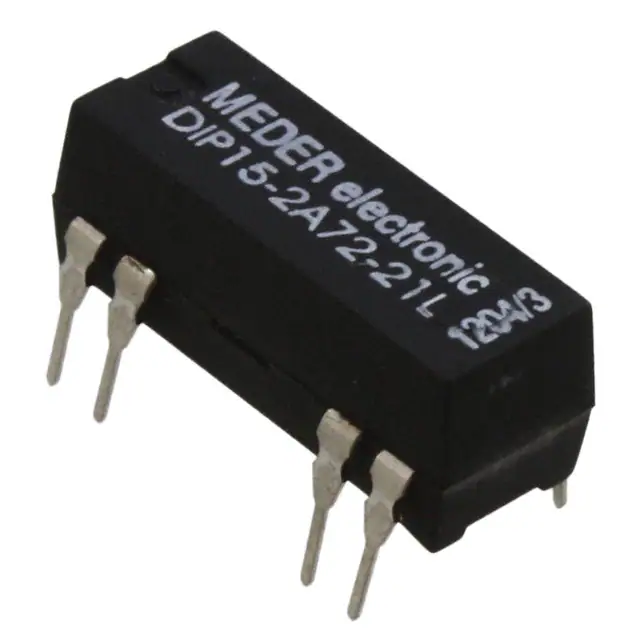

DIP15-2A72-21LRELAY REED DPST-NO 1A 15V |
8,360 | 7.34 |
立即询盘 |
Datasheet |
Tube | DIP | Active | Through Hole | 15VDC | DPST-NO (2 Form A) | 1 A | 200VDC - Max | 7.5 mA | Non Latching | - | PC Pin | Sealed - Fully | 10.5 VDC | 2.2 VDC | 0.5 ms | 0.1 ms | -20°C ~ 70°C |
|
DIP05-1A72-12LRELAY REED SPST 1A 5V |
5,907 | 2.98 |
立即询盘 |
Datasheet |
Tube | DIP | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 200VAC, 200VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.5 VDC | 0.75 VDC | 0.5 ms | 0.1 ms | -20°C ~ 70°C |
|
DIP24-1A72-12LRELAY REED SPST 1A 24V |
9,025 | 3.29 |
立即询盘 |
Datasheet |
Tube | DIP | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 1 A | 200VAC, 200VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 16.8 VDC | 3.6 VDC | 0.5 ms | 0.1 ms | -20°C ~ 70°C |
