| 图片 | 型号 | 库存 | 价格 | 数量 | 规格书 | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5501-05-1RELAY REED SPST 3A 5V |
4,951 | 50.13 |
立即询盘 |
Datasheet |
Tube | 5500 | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 3 A | 7500VAC, 7500VDC - Max | 125 mA | Non Latching | EMI Shielded | PC Pin | - | 3.75 VDC | 0.5 VDC | 3 ms | 3 ms | -20°C ~ 85°C |
|
3351-1275-126RELAY REED HV SPST 50W 3A 12V |
3,891 | 51.87 |
立即询盘 |
Datasheet |
Bulk | 3350 | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 3 A | 7500VAC, 7500VDC - Max | 68.6 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 3 ms | 3 ms | -20°C ~ 85°C |
|
DBT70510RELAY REED SPST-NC 2A 5V |
3,601 | 59.12 |
立即询盘 |
Datasheet |
Tray | DB | Active | Through Hole | 5VDC | SPST-NC (1 Form B) | 2 A | 7000VAC, 7000VDC - Max | 132 mA | Non Latching | - | PC Pin | - | 3.7 VDC | 0.5 VDC | 2 ms | 3 ms | -20°C ~ 70°C |
|
DAT72410FRELAY REED SPST-NO 2A 24V |
1,331 | 60.09 |
立即询盘 |
Datasheet |
Tray | DA | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 2 A | 7000VAC, 7000VDC - Max | 30.7 mA | Non Latching | - | PC Pin, Wire Leads | - | 20 VDC | 4 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|
3570-1331-241RELAY REED SIP SPST .5A 24V |
5,990 | 1.66 |
立即询盘 |
Datasheet |
Tube | 3570 | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 150VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 18 VDC | 2 VDC | 0.35 ms | 0.5 ms | -40°C ~ 85°C |
|
8L41-24-111RELAY REED SPDT 250MA 24V |
2,855 | 11.42 |
立即询盘 |
Datasheet |
Tube | 8L | Active | Through Hole | 24VDC | SPDT (1 Form C) | 250 mA | 100VAC, 100VDC - Max | 12 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 19.2 VDC | 2 VDC | 1 ms | 1 ms | -20°C ~ 85°C |
|
S2-03PRELAY REED SPST 250MA 3V |
1,282 | 14.13 |
立即询盘 |
Datasheet |
Bulk | S2 | Active | Through Hole | 3VDC | SPST-NO (1 Form A) | 250 mA | 140VAC, 200VDC - Max | 12 mA | Non Latching | - | Axial | - | 2.25 VDC | 0.5 VDC | 0.1 ms | 0.07 ms | -40°C ~ 85°C |
|
DIL05-2C90-63LRELAY REED DPDT 250MA 5V |
4,846 | 25.01 |
立即询盘 |
Datasheet |
Tube | DIL | Active | Through Hole | 5VDC | DPDT (2 Form C) | 250 mA | 175VAC, 175VDC - Max | 33.4 mA | Non Latching | - | PC Pin | Sealed - Fully | 3.5 VDC | 0.75 VDC | 0.7 ms | 1.5 ms | -20°C ~ 70°C |
|
DAT72405URELAY REED SPST-NO 5KV 24V |
3,382 | 38.62 |
立即询盘 |
Datasheet |
Bulk | DA | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 2 A | 3500VAC, 3500VDC - Max | 30.8 mA | Non Latching | - | PC Pin | - | 20 VDC | 4 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|
|
3351-1275-056RELAY REED HV SPST 50W 3A 5V |
1,375 | 51.87 |
立即询盘 |
Datasheet |
Bulk | 3350 | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 3 A | 7500VAC, 7500VDC - Max | 125 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.5 VDC | 3 ms | 3 ms | -20°C ~ 85°C |
|
DAT71210-HRRELAY REED SPST-NO 2A 12V |
3,727 | 56.29 |
立即询盘 |
Datasheet |
Tray | D-HR | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 2 A | 7000VAC, 7000VDC - Max | 80 mA | Non Latching | - | PC Pin | - | 9 VDC | 1.25 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|
|
DBT72410URELAY REED SPST-NC 2A 24V |
1,511 | 68.01 |
立即询盘 |
Datasheet |
Bulk | DB | Active | Through Hole | 24VDC | SPST-NC (1 Form B) | 2 A | 7000VAC, 7000VDC - Max | 25.9 mA | Non Latching | - | PC Pin | - | 20 VDC | 4 VDC | 2 ms | 3 ms | -20°C ~ 70°C |
|
|
DBT72410FRELAY REED SPST-NC 2A 24V |
3,375 | 70.30 |
立即询盘 |
Datasheet |
Bulk | DB | Active | Through Hole | 24VDC | SPST-NC (1 Form B) | 2 A | 7000VAC, 7000VDC - Max | 25.9 mA | Non Latching | - | PC Pin, Wire Leads | - | 20 VDC | 4 VDC | 2 ms | 3 ms | -20°C ~ 70°C |
|
DBT72410SRELAY REED SPST-NC 2A 24V |
3,343 | 70.30 |
立即询盘 |
Datasheet |
Bulk | DB | Active | Chassis Mount | 24VDC | SPST-NC (1 Form B) | 2 A | 7000VAC, 7000VDC - Max | 25.9 mA | Non Latching | - | Quick Connect - 0.250 (6.3mm) | - | 20 VDC | 4 VDC | 2 ms | 3 ms | -20°C ~ 70°C |
|
DAT72415PRELAY REED SPST-NO 2A 24V |
1,589 | 82.40 |
立即询盘 |
Datasheet |
Tray | DA | Active | Chassis Mount | 24VDC | SPST-NO (1 Form A) | 2 A | 10000VAC, 10000VDC - Max | 68.6 mA | Non Latching | - | Solder Turret | - | 20 VDC | 4 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|

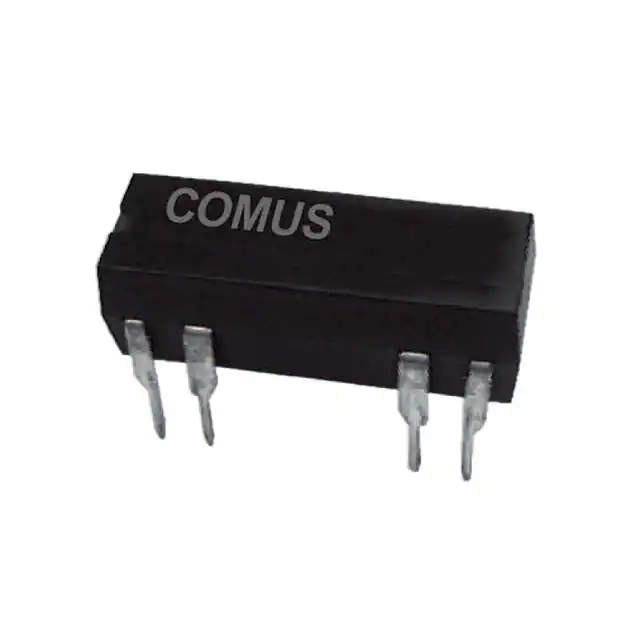

3570-1210-053RELAY REED DIP SPST .5A 5V W/DIO |
5,104 | 1.79 |
立即询盘 |
Datasheet |
Tube | 3570 | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 150VDC - Max | 10 mA | Non Latching | Diode | PC Pin | - | 3.75 VDC | 0.6 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C |
|
|
3570-1331-243RELAY REED SIP SPST .5A 24V W/DI |
7,552 | 1.79 |
立即询盘 |
Datasheet |
Tube | 3570 | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 150VDC - Max | 12 mA | Non Latching | Diode | PC Pin | - | 18 VDC | 2 VDC | 0.35 ms | 0.5 ms | -40°C ~ 85°C |
|
|
3570-1210-123RELAY REED DIP SPST .5A 12V W/DI |
7,448 | 1.84 |
立即询盘 |
Datasheet |
Tube | 3570 | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 150VDC - Max | 12 mA | Non Latching | Diode | PC Pin | - | 9 VDC | 1 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C |
|
|
3570-1210-241RELAY REED DIP SPST .5A 24V |
9,584 | 1.99 |
立即询盘 |
Datasheet |
Tube | 3570 | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 150VDC - Max | 11 mA | Non Latching | - | PC Pin | - | 18 VDC | 2 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C |
|
|
3570-1210-243RELAY REED DIP SPST .5A 24V W/DI |
5,576 | 2.14 |
立即询盘 |
Datasheet |
Tube | 3570 | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 150VDC - Max | 11 mA | Non Latching | Diode | PC Pin | - | 18 VDC | 2 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C |
