| 图片 | 型号 | 库存 | 价格 | 数量 | 规格书 | Packaging | Series | ProductStatus | NumberofChannels | Voltage-Isolation | CurrentTransferRatio(Min) | CurrentTransferRatio(Max) | TurnOn/TurnOffTime(Typ) | Rise/FallTime(Typ) | InputType | OutputType | Voltage-Output(Max) | Current-Output/Channel | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | VceSaturation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

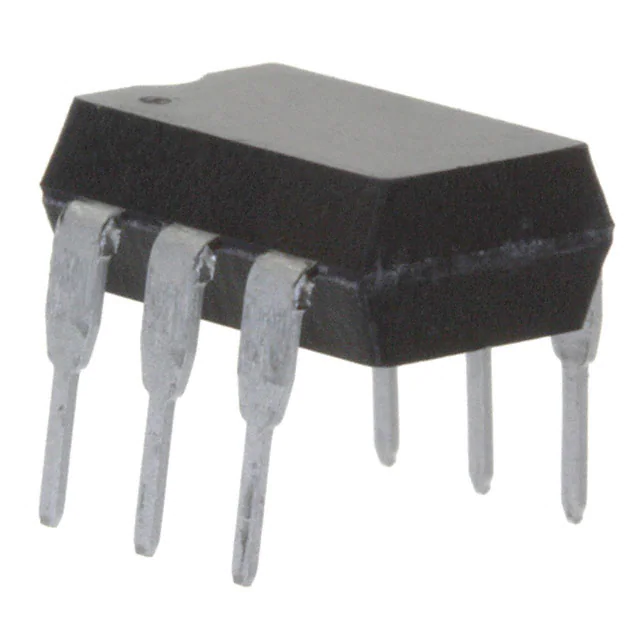

4N25OPTOISO 5KV TRANS W/BASE 6DIP |
10,371 | 0.61 |
立即询盘 |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 20% @ 10mA | - | - | 2µs, 2µs | DC | Transistor with Base | 70V | 50mA | 1.3V | 60 mA | 500mV | -55°C ~ 100°C | Through Hole |
|

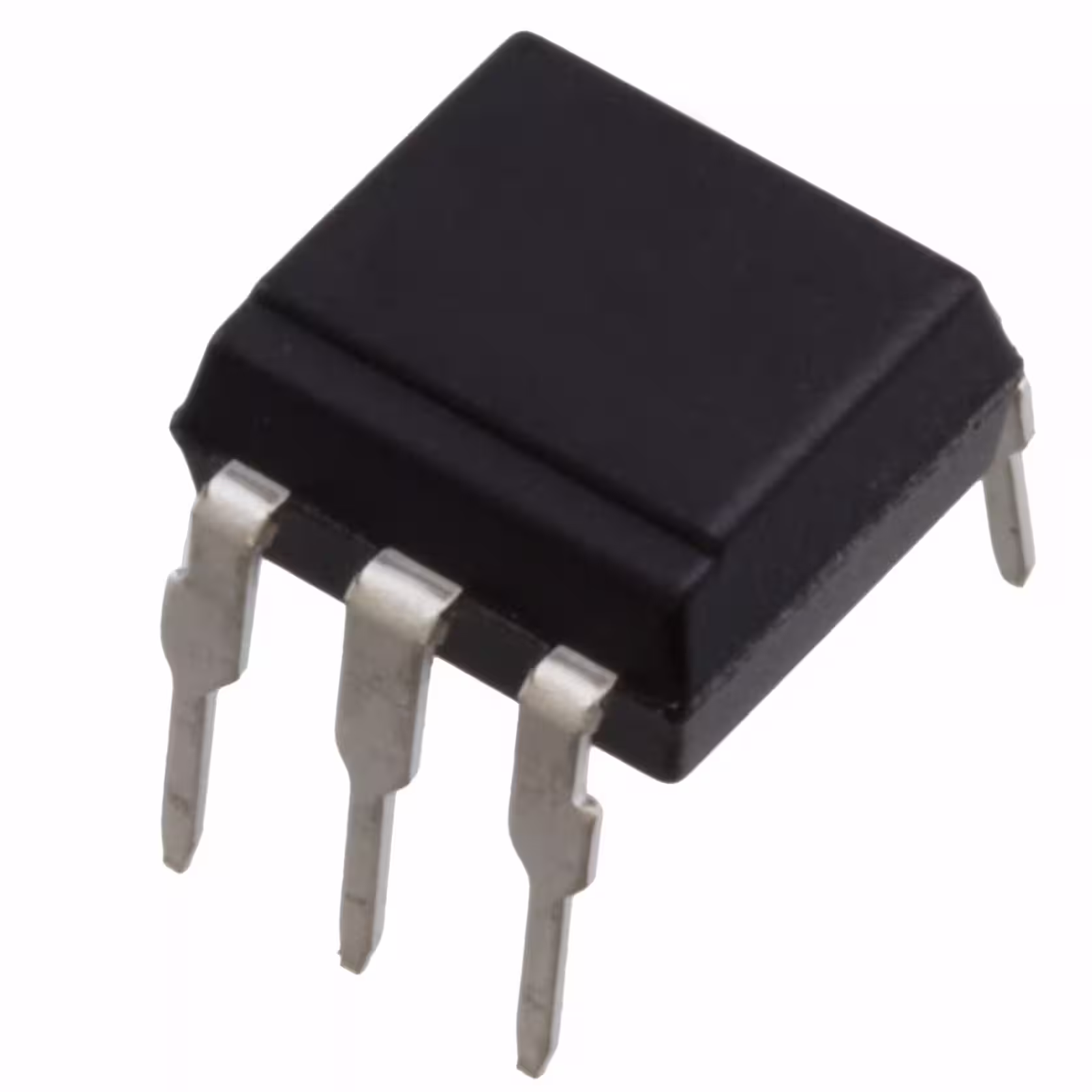

4N35-X000OPTOISO 5KV TRANS W/BASE 6DIP |
10,337 | 0.63 |
立即询盘 |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 100% @ 10mA | - | 10µs, 10µs | - | DC | Transistor with Base | 30V | 50mA | 1.2V | 60 mA | - | -55°C ~ 100°C | Through Hole |
|
SFH6343TOPTOISOLATOR 4KV TRANS 8-SOIC |
5,063 | 2.10 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 4000Vrms | 19% @ 16mA | 50% @ 16mA | 250ns, 500ns | - | DC | Transistor | 25V | 8mA | 1.6V | 25 mA | - | -55°C ~ 100°C | Surface Mount |
|

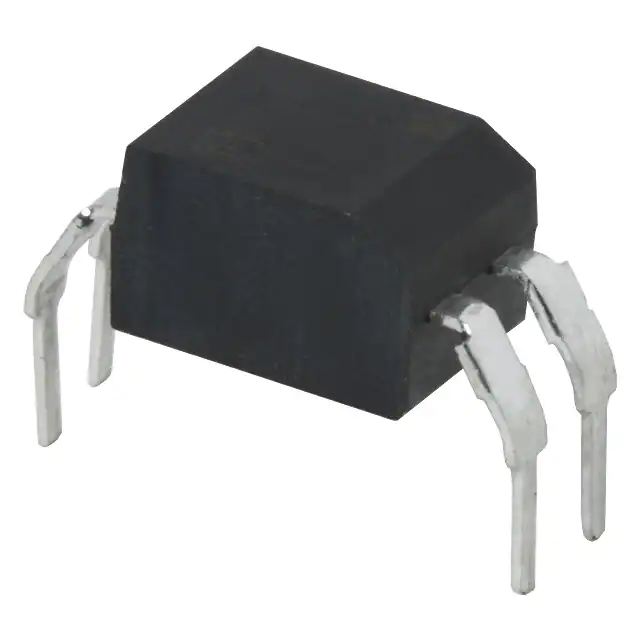

SFH615A-3OPTOISOLATOR 5.3KV TRANS 4-DIP |
14,448 | 0.80 |
立即询盘 |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 100% @ 10mA | 200% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.35V | 60 mA | 400mV | -55°C ~ 100°C | Through Hole |
|
CNY17F-3X017OPTOISOLTR 5KV TRANSISTOR 6-SMD |
14,737 | 0.80 |
立即询盘 |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 100% @ 10mA | 200% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.39V | 60 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|
CNY17F-1X016OPTOISOLTR 5KV TRANSISTOR 6-DIP |
14,261 | 0.80 |
立即询盘 |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 40% @ 10mA | 80% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.39V | 60 mA | 400mV | -55°C ~ 110°C | Through Hole |
|
|
SFH615A-4OPTOISOLATOR 5.3KV TRANS 4-DIP |
12,094 | 0.80 |
立即询盘 |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 160% @ 10mA | 320% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.35V | 60 mA | 400mV | -55°C ~ 100°C | Through Hole |
|
SFH615A-2X006OPTOISOLATOR 5.3KV TRANS 4DIP |
12,744 | 0.89 |
立即询盘 |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 63% @ 10mA | 125% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.35V | 60 mA | 400mV | -55°C ~ 100°C | Through Hole |
|
SFH615A-3X009OPTOISOLATOR 5.3KV TRANS 4SMD |
12,237 | 0.89 |
立即询盘 |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 100% @ 10mA | 200% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.35V | 60 mA | 400mV | -55°C ~ 100°C | Surface Mount |
|
|
SFH6206-1OPTOISOLATOR 5.3KV TRANS 4SMD |
12,950 | 0.94 |
立即询盘 |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 40% @ 10mA | 125% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | AC, DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 400mV | -55°C ~ 100°C | Surface Mount |
|
|
SFH620A-1OPTOISOLATOR 5.3KV TRANS 4-DIP |
13,040 | 0.94 |
立即询盘 |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 40% @ 10mA | 125% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | AC, DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 400mV | -55°C ~ 100°C | Through Hole |
|
IL300-F-X009OPTOISO 5.3KV PHVOLT 8SMD |
3,207 | 11.06 |
立即询盘 |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | - | - | - | 1µs, 1µs | DC | Photovoltaic, Linearized | 500mV | 70µA (Typ) | 1.25V | 60 mA | - | -55°C ~ 100°C | Surface Mount |
|
IL300-F-X001OPTOISO 5.3KV PHVOLT 8DIP |
4,465 | 11.19 |
立即询盘 |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | - | - | - | 1µs, 1µs | DC | Photovoltaic, Linearized | 500mV | 70µA (Typ) | 1.25V | 60 mA | - | -55°C ~ 100°C | Through Hole |
|
|
SFH6206-2OPTOISOLATOR 5.3KV TRANS 4SMD |
13,148 | 0.94 |
立即询盘 |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 63% @ 10mA | 200% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | AC, DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 400mV | -55°C ~ 100°C | Surface Mount |
|
|
MCT62HOPTOISOLTR 5.3KV 2CH TRANS 8-DIP |
10,912 | 0.94 |
立即询盘 |
Datasheet |
Tube | - | Active | 2 | 5300Vrms | 100% @ 5mA | - | 6µs, 5µs | 3µs, 4.7µs | DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 300mV | -55°C ~ 100°C | Through Hole |
|
|
SFH620A-2OPTOISOLATOR 5.3KV TRANS 4-DIP |
10,116 | 0.94 |
立即询盘 |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 63% @ 10mA | 200% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | AC, DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 400mV | -55°C ~ 100°C | Through Hole |
|
|
SFH617A-3OPTOISOLATOR 5.3KV TRANS 4DIP |
12,844 | 0.94 |
立即询盘 |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 100% @ 10mA | 200% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.35V | 60 mA | 400mV | -55°C ~ 110°C | Through Hole |
|
|
SFH620A-3OPTOISOLATOR 5.3KV TRANS 4-DIP |
13,875 | 0.94 |
立即询盘 |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 100% @ 10mA | 320% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | AC, DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 400mV | -55°C ~ 100°C | Through Hole |
|
|
SFH617A-1OPTOISOLATOR 5.3KV TRANS 4DIP |
10,840 | 0.94 |
立即询盘 |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 40% @ 10mA | 80% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.35V | 60 mA | 400mV | -55°C ~ 110°C | Through Hole |
|
|
SFH617A-2OPTOISOLATOR 5.3KV TRANS 4DIP |
12,579 | 0.94 |
立即询盘 |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 63% @ 10mA | 125% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.35V | 60 mA | 400mV | -55°C ~ 110°C | Through Hole |
