| 图片 | 型号 | 库存 | 价格 | 数量 | 规格书 | Package/Case | Packaging | Series | ProductStatus | Type | Material-Core | Inductance | Tolerance | CurrentRating(Amps) | Current-Saturation(Isat) | Shielding | DCResistance(DCR) | Q@Freq | Frequency-SelfResonant | Ratings | OperatingTemperature | InductanceFrequency-Test | Features | MountingType | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.JPG)
|

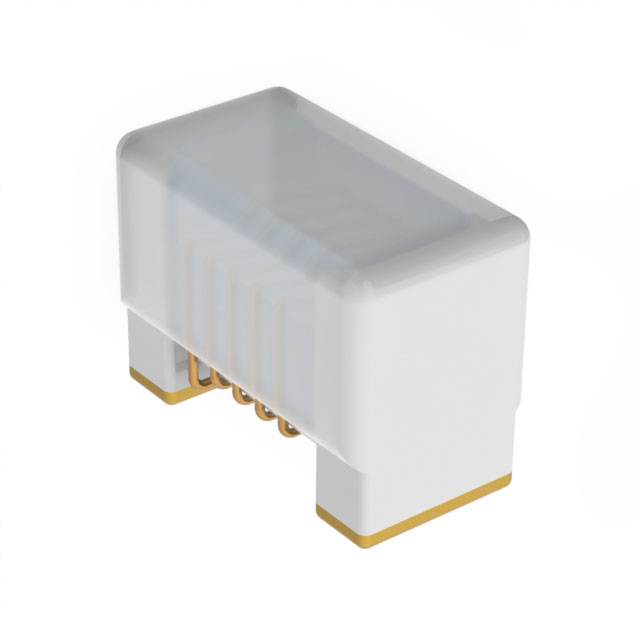

CW105550A-R12JFIXED IND 120NH 110MA 2.66OHM SM |
12,181 | 0.24 |
立即询盘 |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR),Cut Tape (CT) | CW105550A | Active | - | Ceramic | 120 nH | ±5% | 110 mA | - | Unshielded | 2.66Ohm Max | 20 @ 150MHz | 1.1GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0402 |
|
|
CW105550A-3N9JFIXED IND 3.9NH 840MA 66MOHM SMD |
13,181 | 0.24 |
立即询盘 |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR),Cut Tape (CT) | CW105550A | Active | - | Ceramic | 3.9 nH | ±5% | 840 mA | - | Unshielded | 66mOhm Max | 20 @ 250MHz | 5.8GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 |
.JPG)
|

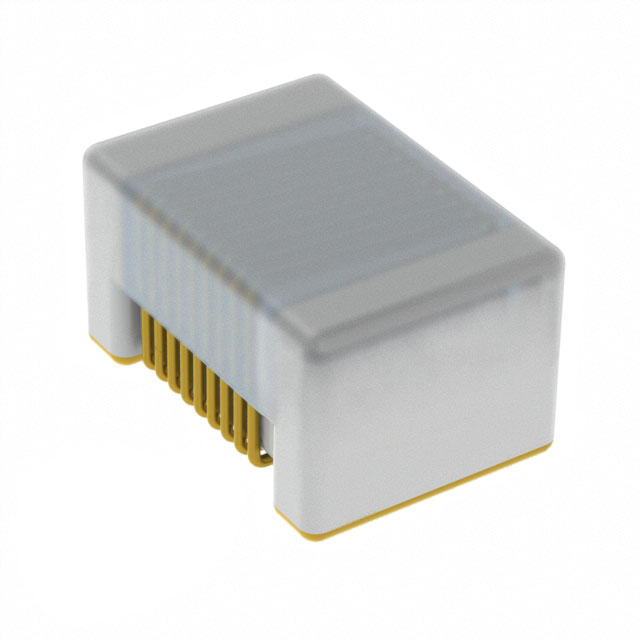

CW161009A-22NJFIXED IND 22NH 700MA 150MOHM SMD |
12,932 | 0.24 |
立即询盘 |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | CW161009A | Active | - | Ceramic | 22 nH | ±5% | 700 mA | - | Unshielded | 150mOhm Max | 35 @ 250MHz | 3GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 |
|
|
CW161009A-47NJFIXED IND 47NH 600MA 230MOHM SMD |
13,361 | 0.24 |
立即询盘 |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | CW161009A | Active | - | Ceramic | 47 nH | ±5% | 600 mA | - | Unshielded | 230mOhm Max | 35 @ 200MHz | 2GHz | AEC-Q200 | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0603 |
|
|
CW161009A-68NJFIXED IND 68NH 600MA 350MOHM SMD |
13,010 | 0.24 |
立即询盘 |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | CW161009A | Active | - | Ceramic | 68 nH | ±5% | 600 mA | - | Unshielded | 350mOhm Max | 32 @ 200MHz | 1.7GHz | AEC-Q200 | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0603 |
|

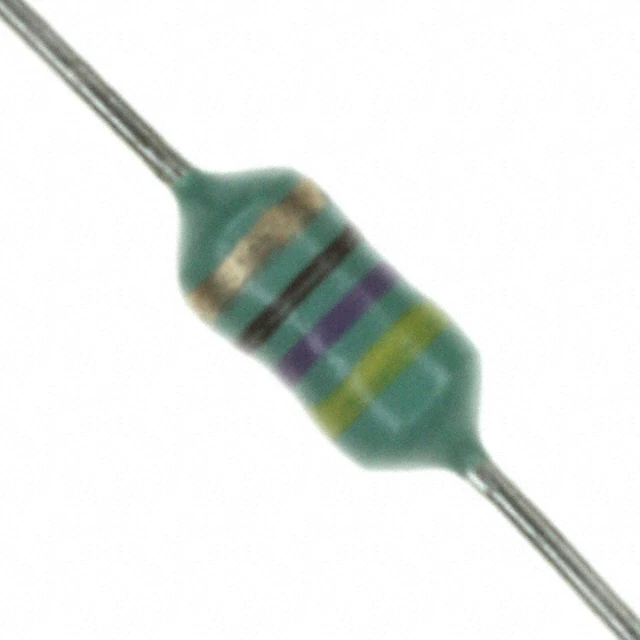

78F471J-TR-RCFIXED IND 470UH 90MA 14 OHM TH |
11,972 | 0.31 |
立即询盘 |
Datasheet |
Axial | Tape & Reel (TR),Cut Tape (CT) | 78F | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±5% | 90 mA | - | Unshielded | 14Ohm Max | 60 @ 790kHz | 2.55MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - |
|
CW100505-12NJFIXED IND 12NH 640MA 120MOHM SMD |
14,461 | 0.37 |
立即询盘 |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR),Cut Tape (CT) | CW100505 | Active | Drum Core, Wirewound | Ceramic | 12 nH | ±5% | 640 mA | - | Unshielded | 120mOhm | 26 @ 250MHz | 3.6GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) |
|
|
CW100505-5N6JFIXED IND 5.6NH 760MA 83MOHM SMD |
11,839 | 0.37 |
立即询盘 |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR),Cut Tape (CT) | CW100505 | Active | Drum Core, Wirewound | Ceramic | 5.6 nH | ±5% | 760 mA | - | Unshielded | 83mOhm | 23 @ 250MHz | 5.8GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) |
|
|
CW100505-1N0DFIXED IND 1NH 1.36A 45 MOHM SMD |
10,814 | 0.37 |
立即询盘 |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR),Cut Tape (CT) | CW100505 | Active | Drum Core, Wirewound | Ceramic | 1 nH | ±0.3nH | 1.36 A | - | Unshielded | 45mOhm | 13 @ 250MHz | 6GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) |
|
|
CW100505-3N3JFIXED IND 3.3NH 840MA 66MOHM SMD |
13,551 | 0.37 |
立即询盘 |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR),Cut Tape (CT) | CW100505 | Active | Drum Core, Wirewound | Ceramic | 3.3 nH | ±5% | 840 mA | - | Unshielded | 66mOhm | 20 @ 250MHz | 6GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) |
|
|
CW100505-33NJFIXED IND 33NH 400MA 350MOHM SMD |
10,313 | 0.37 |
立即询盘 |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR),Cut Tape (CT) | CW100505 | Active | Drum Core, Wirewound | Ceramic | 33 nH | ±5% | 400 mA | - | Unshielded | 350mOhm | 24 @ 250MHz | 2.35GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) |
|
CM322522-6R8JLFIXED IND 6.8UH 150MA 1.8OHM SMD |
14,305 | 0.32 |
立即询盘 |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | CM322522 | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±5% | 150 mA | - | Unshielded | 1.8Ohm Max | 30 @ 7.96MHz | 45MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | - |
|
|
CM322522-330KLFIXED IND 33UH 85MA 5.6 OHM SMD |
10,851 | 0.32 |
立即询盘 |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | CM322522 | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 70 mA | - | Unshielded | 5.6Ohm Max | 30 @ 2.52MHz | 17MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - |
|
|
CM322522-2R2KLFIXED IND 2.2UH 190MA 950MOHM SM |
11,340 | 0.32 |
立即询盘 |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | CM322522 | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±10% | 190 mA | - | Unshielded | 950mOhm Max | 30 @ 7.96MHz | 80MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | - |
|
|
CM322522-100JLFIXED IND 10UH 140MA 2.1 OHM SMD |
14,147 | 0.32 |
立即询盘 |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | CM322522 | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±5% | 140 mA | - | Unshielded | 2.1Ohm Max | 30 @ 2.52MHz | 36MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - |
|

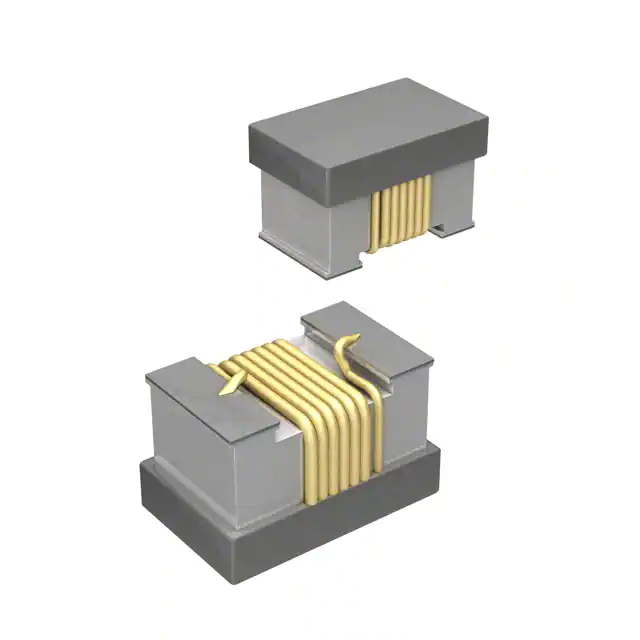

CW160808-68NJFIXED IND 68NH 600MA 340MOHM SMD |
10,040 | 0.37 |
立即询盘 |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | CW160808 | Active | Drum Core, Wirewound | Alumina | 68 nH | ±5% | 600 mA | - | Unshielded | 340mOhm | 35 @ 250MHz | 1.7GHz | - | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0603 (1608 Metric) |
|
|
CW160808-33NJFIXED IND 33NH 600MA 220MOHM SMD |
12,996 | 0.37 |
立即询盘 |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | CW160808 | Active | Drum Core, Wirewound | Alumina | 33 nH | ±5% | 600 mA | - | Unshielded | 220mOhm | 35 @ 250MHz | 2.3GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) |
|
PM0603-47NJ-RCFIXED IND 47NH 600MA 280MOHM SMD |
10,276 | 0.38 |
立即询盘 |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | PM0603 | Active | Drum Core, Wirewound | Alumina | 47 nH | ±5% | 600 mA | - | Unshielded | 280mOhm | 35 @ 250MHz | 2.1GHz | - | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0603 (1608 Metric) |
|
|
PM0603-10NJ-RCFIXED IND 10NH 700MA 130MOHM SMD |
11,831 | 0.38 |
立即询盘 |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | PM0603 | Active | Drum Core, Wirewound | Alumina | 10 nH | ±5% | 700 mA | - | Unshielded | 130mOhm | 30 @ 250MHz | 4.8GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) |
|
|
PM0603-82NJ-RCFIXED IND 82NH 400MA 540MOHM SMD |
13,329 | 0.38 |
立即询盘 |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | PM0603 | Active | Drum Core, Wirewound | Alumina | 82 nH | ±5% | 400 mA | - | Unshielded | 540mOhm | 34 @ 250MHz | 1.7GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0603 (1608 Metric) |
