| 图片 | 型号 | 库存 | 价格 | 数量 | 规格书 | Packaging | Series | ProductStatus | CoilType | CoilCurrent | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | Features | MountingType | TerminationStyle |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PC792A-1C-C2-12C-N-X40A SPDT MINI ISO RELAY 12V BRKT |
5,031 | 2.47 |
立即询盘 |
Datasheet |
Bag | - | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 2 ms | - | Chassis Mount | Quick Connect - 0.250 (6.3mm) |
|
PC785-1A-12S-R-X35A SPST ISO 280 RELAY 12V RES |
9,540 | 2.47 |
立即询盘 |
Datasheet |
Tube | - | Active | Non Latching | 127.7 mA | 12VDC | SPST-NO (1 Form A) | 35 A | 75VDC - Max | 7.2 VDC | 1.2 VDC | 5 ms | 2 ms | Resistor, Sealed - Fully | Socketable | Plug In |
|
|
PC792A-1C-C2-24C-N-X20A SPDT MINI ISO RELAY 24V BRKT |
6,119 | 2.55 |
立即询盘 |
Datasheet |
Bag | - | Active | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | 20 A | 75VDC - Max | 15.6 VDC | 2.4 VDC | 7 ms | 2 ms | - | Chassis Mount | Quick Connect - 0.250 (6.3mm) |
|
PC792A-1C-C-12S-RN-X40A SPDT SEALED MINI ISO RELAY 1 |
6,381 | 2.62 |
立即询盘 |
Datasheet |
Box | - | Active | Non Latching | 150.9 mA | 12VDC | SPDT (1 Form C) | - | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 2 ms | Resistor, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250 (6.3mm) |
|
PC775-1A-12C-D-X75 AMP SCREW TERMINAL RELAY |
3,590 | 34.84 |
立即询盘 |
Datasheet |
Bulk | - | Active | Non Latching | 240 mA | 12VDC | SPST-NO (1 Form A) | - | 32VDC - Max | 7.8 VDC | 2.4 VDC | 7 ms | 5 ms | IP54 - Dust Protected, Water Resistant | Chassis Mount | Screw Terminal |
|

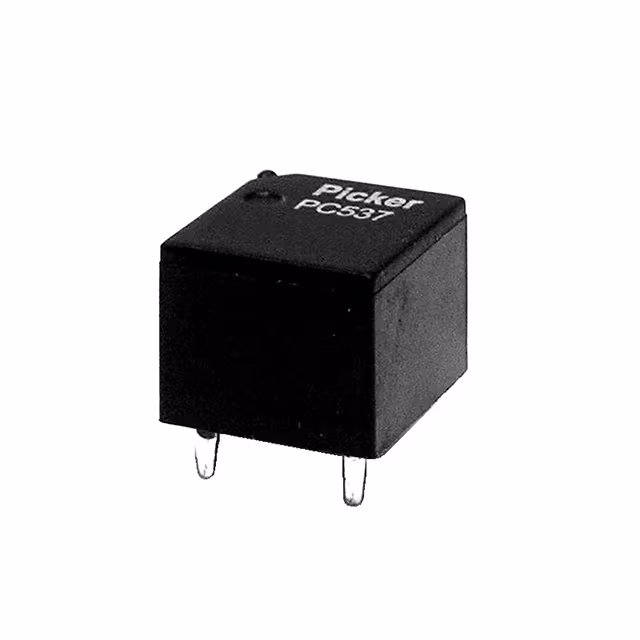

PC537-1A-12S-X30A SPST MINI AUTO PCB RELAY 12V |
13,872 | 0.72 |
立即询盘 |
Datasheet |
Tube | - | Active | Non Latching | 47.2 mA | 12VDC | SPST-NO (1 Form A) | - | 28VDC - Max | 6.9 VDC | 1.5 VDC | 4 ms | 1.5 ms | Sealed - Fully | Through Hole | PC Pin |
|

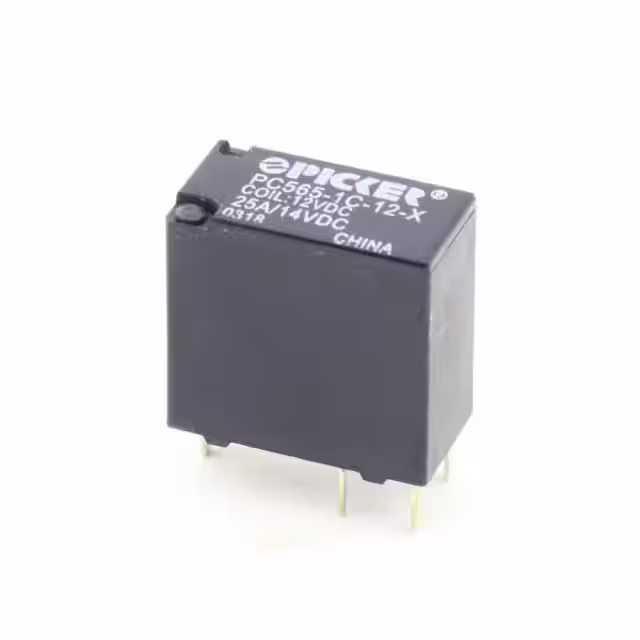

PC565-1C-12-X25A SPDT ULTRAMINI RELAY 12V |
14,389 | 0.76 |
立即询盘 |
Datasheet |
Tube | - | Active | Non Latching | 53.3 mA | 12VDC | SPDT (1 Form C) | 25 A | 16VDC - Max | 7.2 VDC | 1 VDC | 10 ms | 5 ms | Sealed - Fully | Through Hole | PC Pin |
|
|
PC537-1C-12H-X30A SPDT MINI AUTO PCB RELAY 12V |
6,686 | 1.14 |
立即询盘 |
Datasheet |
Bag | - | Active | Non Latching | 47.2 mA | 12VDC | SPDT (1 Form C) | - | 28VDC - Max | 6.9 VDC | 1.5 VDC | 4 ms | 1.5 ms | - | Through Hole | PC Pin |
|
PC822-1C-12-A-X45A SPDT MINI PCB AUTO RELAY 12V |
6,869 | 1.25 |
立即询盘 |
Datasheet |
Tube | - | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | - | 75VDC - Max | 8.4 VDC | 1.2 VDC | 5 ms | 3 ms | - | Through Hole | PC Pin |
|
PC537-1C-12S-X30A SPDT SEALED MINI AUTO PCB |
9,186 | 1.29 |
立即询盘 |
Datasheet |
Tube | - | Active | Non Latching | 47.2 mA | 12VDC | SPDT (1 Form C) | - | 28VDC - Max | 6.9 VDC | 1.5 VDC | 4 ms | 1.5 ms | Sealed - Fully | Through Hole | PC Pin |
|
PC782-1C-12S-X30A SPDT MICROISO AUTO RELAY 12V |
5,322 | 1.50 |
立即询盘 |
Datasheet |
Tube | - | Active | Non Latching | 125 mA | 12VDC | SPDT (1 Form C) | - | 75VDC - Max | 8.4 VDC | 1.2 VDC | 10 ms | 7 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - Multiple Sizes |
|
PC784-1C-12S-X35A SPDT MICRO ISO RELAY 12V |
9,053 | 1.60 |
立即询盘 |
Datasheet |
Tube | - | Active | Non Latching | 125 mA | 12VDC | SPDT (1 Form C) | 40 A | 28VDC - Max | 7.2 VDC | 1.2 VDC | 10 ms | 10 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - 0.187 (4.7mm) |
|
PC784-1C-12C-R-X35A SPDT MICRO ISO RELAY 12V RES |
9,298 | 1.63 |
立即询盘 |
Datasheet |
Tube | - | Active | Non Latching | 143 mA | 12VDC | SPDT (1 Form C) | 40 A | 28VDC - Max | 7.2 VDC | 1.2 VDC | 10 ms | 10 ms | Resistor | Socketable | Plug In, Quick Connect - 0.187 (4.7mm) |
|
PC784-1C-12S-R-X35A SPDT MICRO ISO RELAY 12V RES |
9,334 | 1.66 |
立即询盘 |
Datasheet |
Tube | - | Active | Non Latching | 143 mA | 12VDC | SPDT (1 Form C) | 40 A | 28VDC - Max | 7.2 VDC | 1.2 VDC | 10 ms | 10 ms | Resistor, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.187 (4.7mm) |
|
PC792A-1A-C-24S-N-X20A SPST MINI ISO AUTO RELAY 24V |
5,879 | 1.67 |
立即询盘 |
Datasheet |
Bag | - | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | - | 75VDC - Max | 15.6 VDC | 2.4 VDC | 7 ms | 2 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250 (6.3mm) |
|
|
PC785-1C-12S-D-X30A SPDT ISO 280 AUTO RELAY 12V |
8,065 | 1.87 |
立即询盘 |
Datasheet |
Tube | - | Active | Non Latching | 110 mA | 12VDC | SPDT (1 Form C) | - | 75VDC - Max | 7.2 VDC | 1.2 VDC | 5 ms | 2 ms | Diode, Sealed - Fully | Socketable | Plug In |
|
PC792A-1AA-C1-12S-DN-X40A DPNO MINI ISO RELAY 12V DIO |
7,690 | 1.98 |
立即询盘 |
Datasheet |
Bag | - | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 2 ms | Diode, Sealed - Fully | Chassis Mount | Plug In, Quick Connect - Multiple Sizes |
|
PC792B-1C-P-12S-D-X40A SPDT MINI ISO PCB RELAY 12V |
8,213 | 2.07 |
立即询盘 |
Datasheet |
Bag | - | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | - | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 2 ms | Diode, Sealed - Fully | Through Hole | PC Pin |
|
PC792A-1C-P-12S-X40A SPDT MINI ISO PCB RELAY 12V |
6,384 | 2.38 |
立即询盘 |
Datasheet |
Bag | - | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 2 ms | Sealed - Fully | Through Hole | PC Pin |
|
|
PC792A-1C-C-12S-N-X40A SPDT MINI ISO RELAY 12V |
8,078 | 2.45 |
立即询盘 |
Datasheet |
Bag | - | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 2 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250 (6.3mm) |
