| 图片 | 型号 | 库存 | 价格 | 数量 | 规格书 | Packaging | Series | ProductStatus | CoilType | CoilCurrent | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | Features | MountingType | TerminationStyle |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

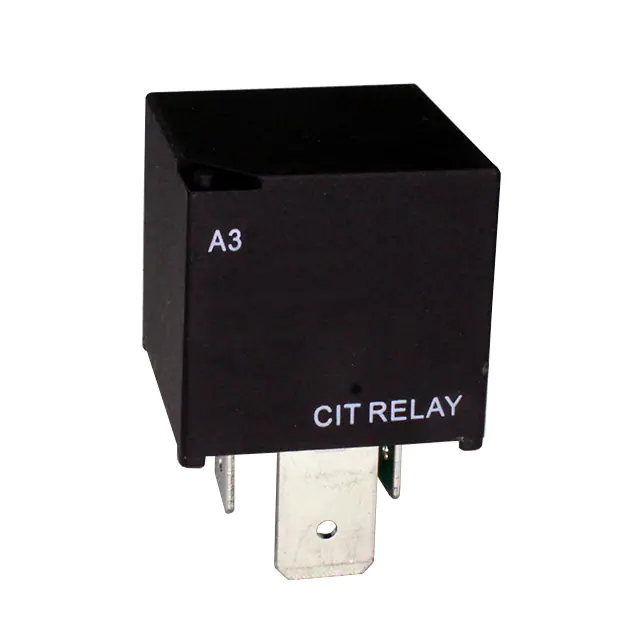

A31CCQ12VDC1D80AMP RELAY AUTOMOTIVE SPDT 1C 1 |
7,373 | 3.28 |
立即询盘 |
Datasheet |
Tray | A3 | Active | Non Latching | 150 mA | 12VDC | SPDT (1 Form C) | 60 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Diode | Socketable | Plug In, Quick Connect - 0.250 (6.3mm) |
|
|
A31CCQ12VDC1R80AMP RELAY AUTOMOTIVE SPDT 1C 1 |
8,669 | 3.28 |
立即询盘 |
Datasheet |
Tray | A3 | Active | Non Latching | 150 mA | 12VDC | SPDT (1 Form C) | 60 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Resistor | Socketable | Plug In, Quick Connect - 0.250 (6.3mm) |
|
A102CS24VDCDUAL PACKAGE RELAY AUTOMOTIVE 30 |
7,413 | 3.65 |
立即询盘 |
Datasheet |
Tube | A10 | Active | Non Latching | 20.8 mA | 24VDC | DPDT (2 Form C) | 30 A | 28VDC - Max | 16.8 VDC | 2.4 VDC | 4 ms | 1.5 ms | Sealed - Fully | Through Hole | PC Pin |
|
A2S1ASQ48VDC1.6RELAY AUTOMOTIVE QUICK CONNECT S |
9,230 | 4.11 |
立即询盘 |
Datasheet |
Tray | A2 | Active | Non Latching | 33.3 mA | 48VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 7 ms | 5 ms | Sealed - Fully | Chassis Mount | Quick Connect - 0.250 (6.3mm) |
|
|
A2S1ASQ6VDC1.6RELAY AUTOMOTIVE QUICK CONNECT S |
8,259 | 4.11 |
立即询盘 |
Datasheet |
Tray | A2 | Active | Non Latching | 266.7 mA | 6VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 4.2 VDC | 0.6 VDC | 7 ms | 5 ms | Sealed - Fully | Chassis Mount | Quick Connect - 0.250 (6.3mm) |
|
|
A2S1ASQ6VDC1.6RRELAY AUTOMOTIVE QUICK CONNECT S |
8,605 | 4.13 |
立即询盘 |
Datasheet |
Tray | A2 | Active | Non Latching | 266.7 mA | 6VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 4.2 VDC | 0.6 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250 (6.3mm) |
|
|
A2S1ASQ48VDC1.6RRELAY AUTOMOTIVE QUICK CONNECT S |
8,248 | 4.13 |
立即询盘 |
Datasheet |
Tray | A2 | Active | Non Latching | 33.3 mA | 48VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250 (6.3mm) |
|
|
A2S1ASQ6VDC1.6DRELAY AUTOMOTIVE QUICK CONNECT S |
5,428 | 4.16 |
立即询盘 |
Datasheet |
Tray | A2 | Active | Non Latching | 266.7 mA | 6VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 4.2 VDC | 0.6 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Chassis Mount | Quick Connect - 0.250 (6.3mm) |
|
|
A2S1ASQ48VDC1.6DRELAY AUTOMOTIVE QUICK CONNECT S |
5,695 | 4.31 |
立即询盘 |
Datasheet |
Tray | A2 | Active | Non Latching | 33.3 mA | 48VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Chassis Mount | Quick Connect - 0.250 (6.3mm) |
|
|
A2S1CSQ6VDC1.6RELAY AUTOMOTIVE QUICK CONNECT S |
6,287 | 4.41 |
立即询盘 |
Datasheet |
Tray | A2 | Active | Non Latching | 266.7 mA | 6VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 4.2 VDC | 0.6 VDC | 7 ms | 5 ms | Sealed - Fully | Chassis Mount | Quick Connect - 0.250 (6.3mm) |
|
|
A2S1CSQ48VDC1.9RELAY AUTOMOTIVE QUICK CONNECT S |
9,350 | 4.41 |
立即询盘 |
Datasheet |
Tray | A2 | Active | Non Latching | 39.6 mA | 48VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 7 ms | 5 ms | Sealed - Fully | Chassis Mount | Quick Connect - 0.250 (6.3mm) |
|
|
A2S1CSQ48VDC1.6RELAY AUTOMOTIVE QUICK CONNECT S |
7,889 | 4.41 |
立即询盘 |
Datasheet |
Tray | A2 | Active | Non Latching | 33.3 mA | 48VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 7 ms | 5 ms | Sealed - Fully | Chassis Mount | Quick Connect - 0.250 (6.3mm) |
|
|
A2S1CSQ6VDC1.6DRELAY AUTOMOTIVE QUICK CONNECT S |
8,319 | 4.49 |
立即询盘 |
Datasheet |
Tray | A2 | Active | Non Latching | 266.7 mA | 6VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 4.2 VDC | 0.6 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Chassis Mount | Quick Connect - 0.250 (6.3mm) |
|
|
A2S1CSQ48VDC1.6DRELAY AUTOMOTIVE QUICK CONNECT S |
7,405 | 4.64 |
立即询盘 |
Datasheet |
Tray | A2 | Active | Non Latching | 33.3 mA | 48VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Chassis Mount | Quick Connect - 0.250 (6.3mm) |
|

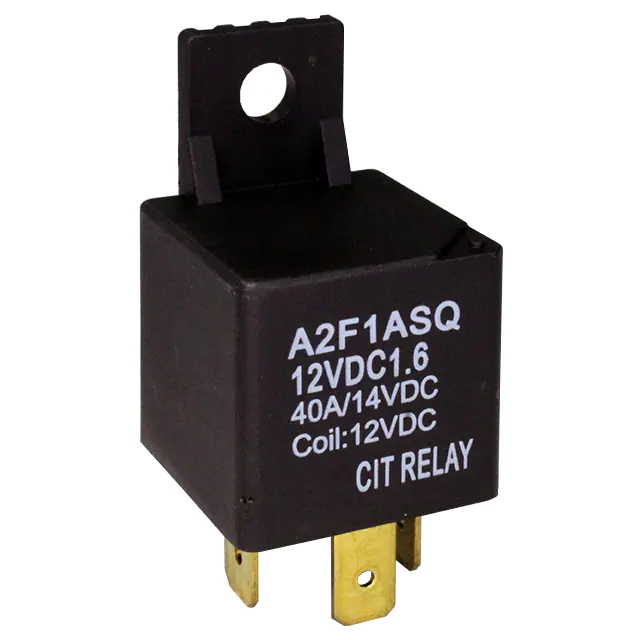

A2F1ASQ12VDC1.6RELAY AUTO FLANGED SPST 12VDC QC |
6,971 | 2.22 |
立即询盘 |
Datasheet |
Tray | A2 | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Sealed - Fully | Chassis Mount | Quick Connect - 0.250 (6.3mm) |
|

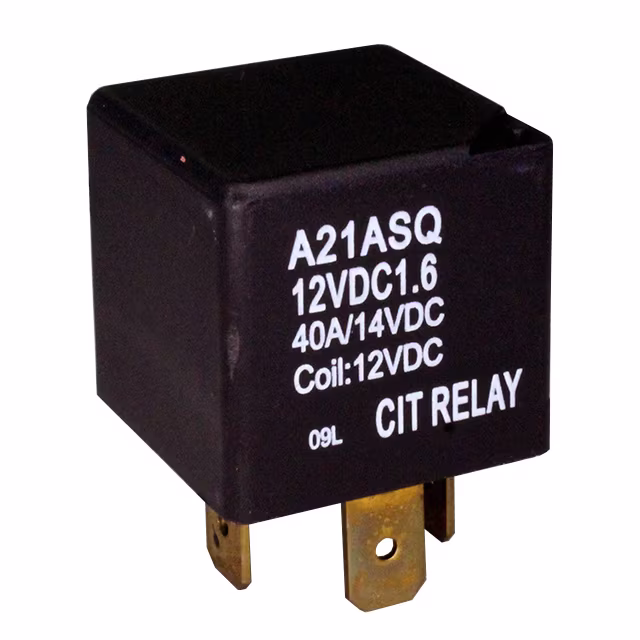

A21ASQ12VDC1.6RELAY AUTO SPST 12VDC QC |
7,682 | 2.22 |
立即询盘 |
Datasheet |
Tray | A2 | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250 (6.3mm) |
|
A21ASQ12VDC1.6RRELAY AUTO SPST 12VDC QC RESISTO |
7,494 | 2.24 |
立即询盘 |
Datasheet |
Tray | A2 | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250 (6.3mm) |
|

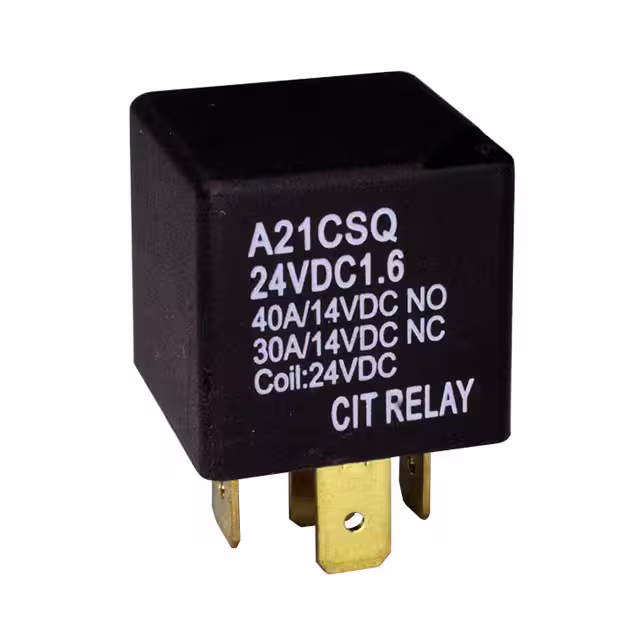

A21CSQ24VDC1.6RELAY AUTO SPDT 24VDC QC |
9,428 | 2.62 |
立即询盘 |
Datasheet |
Tray | A2 | Active | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250 (6.3mm) |
|

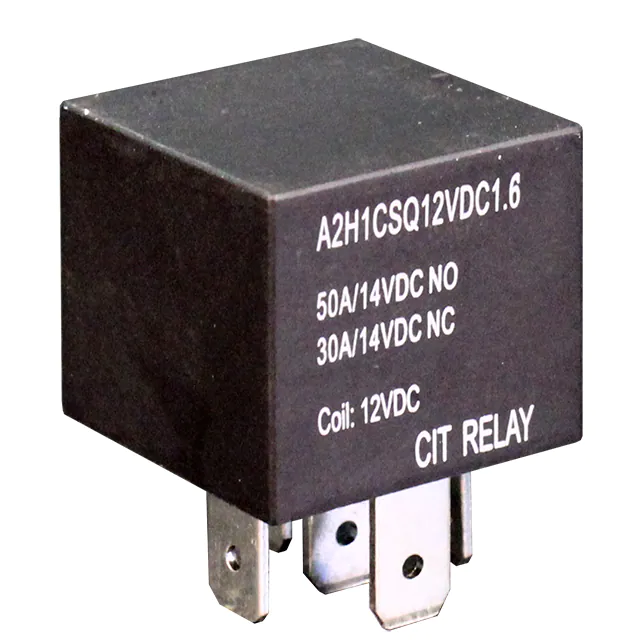

A2H1CSQ12VDC1.6RELAY QC SPDT SEALED 50A 12VDC |
9,656 | 2.62 |
立即询盘 |
Datasheet |
Tray | A2 | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 50 A | 75VDC - Max | 7.8 VDC | 1.2 VDC | 10 ms | 10 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250 (6.3mm) |
|

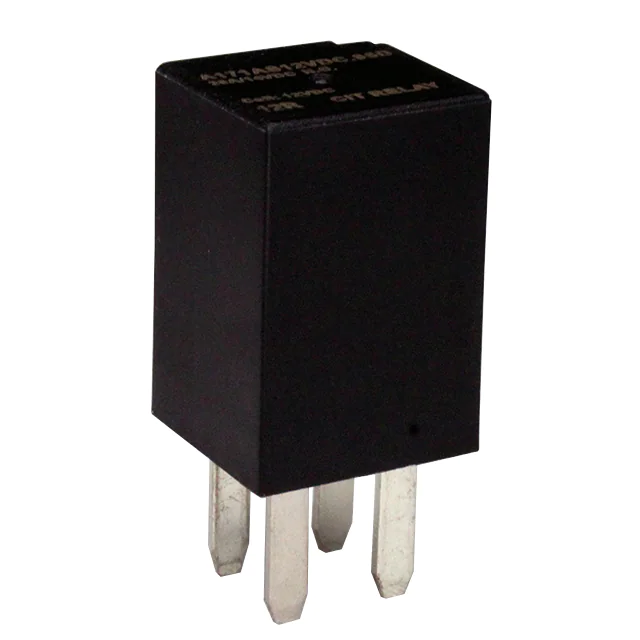

A171AS12VDC.96DRELAY AUTO SPST 20A 12VDC DIODE |
9,995 | 2.70 |
立即询盘 |
Datasheet |
Tray | A17 | Active | Non Latching | 80 mA | 12VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 9 VDC | 1.2 VDC | 10 ms | 5 ms | Diode, Sealed - Fully | Through Hole | PC Pin |
Request a Quote
