| 图片 | 型号 | 库存 | 价格 | 数量 | 规格书 | Packaging | Series | ProductStatus | CoilType | CoilCurrent | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | Features | MountingType | TerminationStyle |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3-1393303-4RELAY AUTOMOTIVE SPST-NO 60A 12V |
2,091 | 14.01 |
立即询盘 |
Datasheet |
Bulk | F4 | Active | Non Latching | - | 12VDC | SPST-NO (1 Form A) | 60 A | 12VDC - Nom | 7.2 VDC | 1.6 VDC | 7 ms | 2 ms | - | Chassis Mount | Plug In, Quick Connect - 0.250 (6.3mm) |
|
05903300RELAY12V.200A |
1,800 | 48.38 |
立即询盘 |
Datasheet |
Box | - | Active | Non Latching | - | - | - | 100 A | 12VDC | - | - | - | - | IP67 - Dust Tight, Waterproof | Chassis Mount | Stud |
|
1393315-2RELAY AUTO SPST-NO 130A 12V |
1,730 | 71.57 |
立即询盘 |
Datasheet |
Bulk | HCR 150 | Active | Non Latching | - | 12VDC | SPST-NO (1 Form A) | 130 A | 12VDC - Nom | 7.2 VDC | 1.2 VDC | 25 ms | 8 ms | - | Chassis Mount | Screw Terminal |
|

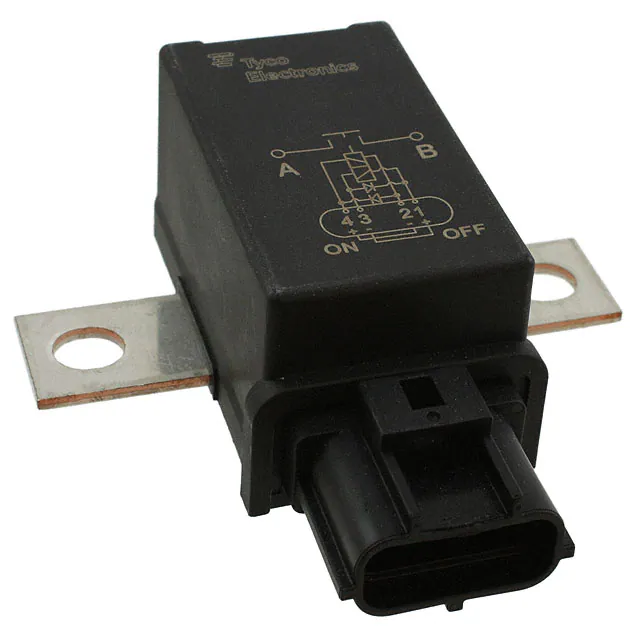

7-1414778-3RELAY AUTO SPST-NO 260A 24V |
509 | 110.03 |
立即询盘 |
Datasheet |
Bulk | V23130 | Active | Latching, Dual Coil | - | 24VDC | SPST-NO (DM) (1 Form X) | 260 A | 24VDC - Nom | 12 VDC | - | 5 ms | 5 ms | IP54 - Dust Protected, Water Resistant | Chassis Mount | Connector |
|
AEV18024WRELAY AUTOMOTIVE SPST 80A 24V |
541 | 182.65 |
立即询盘 |
Datasheet |
Bulk | AEV | Active | Non Latching | 176 mA | 24VDC | SPST-NO (1 Form A) | 80 A | 400VDC - Nom | 18 VDC | 2 VDC | 50 ms | 30 ms | - | Chassis Mount | Stud |
|
A51AS12VDC1.6RELAY AUTO SPST 12VDC PCB |
8,071 | 1.86 |
立即询盘 |
Datasheet |
Tray | A5 | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 380VAC, 75VDC - Max | 8.4 VDC | 1.2 VDC | 5 ms | 3 ms | Sealed - Fully | Through Hole | PC Pin |
|
A11ASQ12VDC1.2RELAY AUTO SPST 12VDC QC |
8,729 | 2.17 |
立即询盘 |
Datasheet |
Tube | A1 | Active | Non Latching | 100 mA | 12VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 10 ms | 7 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - 0.187 (4.7mm) |
|
A51CS24VDC1.6RELAY AUTO SPDT 24VDC PCB |
9,429 | 2.17 |
立即询盘 |
Datasheet |
Tray | A5 | Active | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | 40 A | 380VAC, 75VDC - Max | 16.8 VDC | 2.4 VDC | 5 ms | 3 ms | Sealed - Fully | Through Hole | PC Pin |
|
A2M1ASQ12VDC1.6RRELAY AUTO BRACKET SPST 12VDC QC |
5,960 | 2.23 |
立即询盘 |
Datasheet |
Tray | A2 | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250 (6.3mm) |
|
A21ASP12VDC1.6RRELAY AUTO SPST 12VDC PCB RESIST |
6,515 | 2.24 |
立即询盘 |
Datasheet |
Tray | A2 | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Through Hole | PC Pin |
|
A2F1ASQ12VDC1.6DRELAY AUTO FLANGED SPST 12VDC QC |
9,695 | 2.27 |
立即询盘 |
Datasheet |
Tray | A2 | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Chassis Mount | Quick Connect - 0.250 (6.3mm) |
|
A21ASP12VDC1.6DRELAY AUTO SPST 12VDC PCB DIODE |
8,932 | 2.27 |
立即询盘 |
Datasheet |
Tray | A2 | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Through Hole | PC Pin |
|
A21ASQ12VDC1.6DRELAY AUTO SPST 12VDC QC DIODE |
5,574 | 2.27 |
立即询盘 |
Datasheet |
Tray | A2 | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250 (6.3mm) |
|
A2F1ASQ24VDC1.6RELAY AUTO FLANGED SPST 24VDC QC |
6,074 | 2.29 |
立即询盘 |
Datasheet |
Tray | A2 | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Sealed - Fully | Chassis Mount | Quick Connect - 0.250 (6.3mm) |
|
A2M1ASQ12VDC1.6DRELAY AUTO BRACKET SPST 12VDC QC |
8,650 | 2.34 |
立即询盘 |
Datasheet |
Tray | A2 | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Chassis Mount | Quick Connect - 0.250 (6.3mm) |
|
A2F1ASQ24VDC1.6DRELAY AUTO FLANGED SPST 24VDC QC |
5,027 | 2.37 |
立即询盘 |
Datasheet |
Tray | A2 | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Chassis Mount | Quick Connect - 0.250 (6.3mm) |
|
A11CSP12VDC1.2RRELAY AUTO SPDT 12VDC PCB RESIST |
9,186 | 2.57 |
立即询盘 |
Datasheet |
Tube | A1 | Active | Non Latching | 100 mA | 12VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 10 ms | 7 ms | Resistor, Sealed - Fully | Through Hole | PC Pin |
|
A11CSQ12VDC1.2DRELAY AUTO SPDT 12VDC QC DIODE |
5,852 | 2.57 |
立即询盘 |
Datasheet |
Tube | A1 | Active | Non Latching | 100 mA | 12VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 10 ms | 7 ms | Diode, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.187 (4.7mm) |
|
A11CSP12VDC1.2DRELAY AUTO SPDT 12VDC PCB DIODE |
6,699 | 2.57 |
立即询盘 |
Datasheet |
Tube | A1 | Active | Non Latching | 100 mA | 12VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 10 ms | 7 ms | Diode, Sealed - Fully | Through Hole | PC Pin |
|
A61AS12VDC1.3RELAY AUTO SPST 30A 12VDC PCB |
5,942 | 2.60 |
立即询盘 |
Datasheet |
Tray | A6 | Active | Non Latching | 110.1 mA | 12VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 5 ms | 2 ms | Sealed - Fully | Through Hole | PC Pin |
