| 图片 | 型号 | 库存 | 价格 | 数量 | 规格书 | Packaging | Series | ProductStatus | Type | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Ratings | Applications | Features | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2SEPC2700MCAP ALUM POLY 2700UF 20% 2.5V TH |
6,114 | 2.74 |
立即询盘 |
Datasheet |
Bulk | OS-CON™, SEPC | Active | Polymer | 2700 µF | ±20% | 2.5 V | 10mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 278 mA @ 120 Hz | 5.56 A @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
20SEF560MCAP ALUM POLY 560UF 20% 20V T/H |
8,828 | 2.89 |
立即询盘 |
Datasheet |
Bulk | OS-CON™, SEF | Active | Polymer | 560 µF | ±20% | 20 V | 12mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 85 mA @ 120 Hz | 1.7 A @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
|
16SEF1000MCAP ALUM POLY 1000UF 20% 16V T/H |
5,796 | 3.03 |
立即询盘 |
Datasheet |
Bulk | OS-CON™, SEF | Active | Polymer | 1000 µF | ±20% | 16 V | 12mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 85 mA @ 120 Hz | 1.7 A @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
100SXE15MXCAP ALUM POLY 15UF 20% 100V T/H |
7,499 | 3.15 |
立即询盘 |
Datasheet |
Bulk | OS-CON™, SXE | Active | Polymer | 15 µF | ±20% | 100 V | 60mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 100 mA @ 120 Hz | 2 A @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.315 (8.00mm) | - | Through Hole |
|

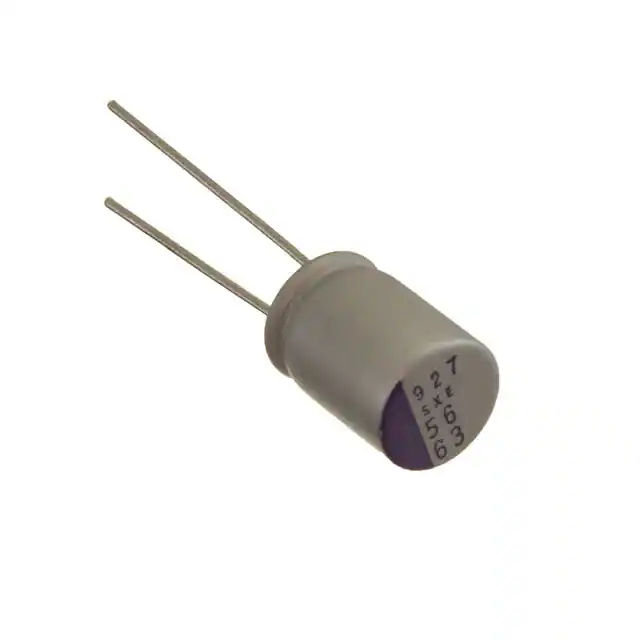

63SXE56MCAP ALUM POLY 56UF 20% 63V T/H |
5,108 | 3.62 |
立即询盘 |
Datasheet |
Bulk | OS-CON™, SXE | Active | Polymer | 56 µF | ±20% | 63 V | 25mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 147.5 mA @ 120 Hz | 2.95 A @ 100 kHz | - | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.472 (12.00mm) | - | Through Hole |
|
|
100SXE18MCAP ALUM POLY 18UF 20% 100V T/H |
8,042 | 3.63 |
立即询盘 |
Datasheet |
Bulk | OS-CON™, SXE | Active | Polymer | 18 µF | ±20% | 100 V | 30mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 150 mA @ 120 Hz | 3 A @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
|
100SXE27MCAP ALUM POLY 27UF 20% 100V T/H |
9,887 | 3.95 |
立即询盘 |
Datasheet |
Bulk | OS-CON™, SXE | Active | Polymer | 27 µF | ±20% | 100 V | 30mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 150 mA @ 120 Hz | 3 A @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.512 (13.00mm) | - | Through Hole |
 R7-Series.jpg)
|
RR70E681MDN1KXCAP ALUM POLY 680UF 20% 2.5V T/H |
11,372 | 0.88 |
立即询盘 |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | FPCAP, RR7 | Active | Polymer | 680 µF | ±20% | 2.5 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 560 mA @ 120 Hz | 5.6 A @ 100 kHz | - | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
A765KN397M0JLAE030CAP ALUM POLY 390UF 20% 6.3V SMD |
10,250 | 0.77 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | A765 | Active | Polymer | 390 µF | ±20% | 6.3 V | 30mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 161 mA @ 120 Hz | 3.22 A @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.394 (10.00mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
875105144009CAP ALUM POLY 270UF 20% 6.3V SMD |
12,135 | 0.58 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | WCAP-PSLP | Active | Polymer | 270 µF | ±20% | 6.3 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 150 mA @ 120 Hz | 3 A @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.228 (5.80mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
|
A765KN187M1ALAE020CAP ALUM POLY 180UF 20% 10V SMD |
14,925 | 0.90 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | A765 | Active | Polymer | 180 µF | ±20% | 10 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 175 mA @ 120 Hz | 3.5 A @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.394 (10.00mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
RNS0J331MDN1PHCAP ALUM POLY 330UF 20% 6.3V T/H |
13,221 | 0.89 |
立即询盘 |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | FPCAP, RNS | Active | Polymer | 330 µF | ±20% | 6.3 V | 10mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 550 mA @ 120 Hz | 5.5 A @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.551 (14.00mm) | - | Through Hole |
|
PCF0G221MCL1GSCAP ALUM POLY 220UF 20% 4V SMD |
5,311 | 1.14 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PCF | Active | Polymer | 220 µF | ±20% | 4 V | 21mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.2 A @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.276 (7.00mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
A750EK567M0GAAE018CAP ALUM POLY 560UF 20% 4V T/H |
11,333 | 0.48 |
立即询盘 |
Datasheet |
Bulk | A750 | Active | Polymer | 560 µF | ±20% | 4 V | 18mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 155 mA @ 120 Hz | 3.1 A @ 100 kHz | - | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.354 (9.00mm) | - | Through Hole |
|
A758BG187M0JAAE018CAP ALUM POLY 180UF 20% 6.3V T/H |
12,000 | 0.49 |
立即询盘 |
Datasheet |
Bulk | A758 | Active | Polymer | 180 µF | ±20% | 6.3 V | 18mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.5 A @ 100 kHz | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.315 (8.00mm) | - | Through Hole |
|
RPS0G471MCN1GSCAP ALUM POLY 470UF 20% 4V SMD |
6,893 | 1.10 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FPCAP, RPS | Active | Polymer | 470 µF | ±20% | 4 V | 22mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 380 mA @ 120 Hz | 3.8 A @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.303 (7.70mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
870025374004CAP ALUM POLY 270UF 20% 16V T/H |
11,001 | 0.86 |
立即询盘 |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | WCAP-PTG5 | Active | Polymer | 270 µF | ±20% | 16 V | 12mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 225 mA @ 120 Hz | 4.5 A @ 100 kHz | - | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.354 (9.00mm) | - | Through Hole |
|
|
A765KN128M0GLAE012CAP ALUM POLY 1200UF 20% 4V SMD |
8,533 | 1.12 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | A765 | Active | Polymer | 1200 µF | ±20% | 4 V | 12mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 175 mA @ 120 Hz | 3.5 A @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.394 (10.00mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
RNS0J821MDN1PHCAP ALUM POLY 820UF 20% 6.3V T/H |
6,985 | 1.20 |
立即询盘 |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | FPCAP, RNS | Active | Polymer | 820 µF | ±20% | 6.3 V | 10mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 550 mA @ 120 Hz | 5.5 A @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.551 (14.00mm) | - | Through Hole |
|
|
A758BG277M0GAAE020CAP ALUM POLY 270UF 20% 4V T/H |
14,005 | 0.51 |
立即询盘 |
Datasheet |
Bulk | A758 | Active | Polymer | 270 µF | ±20% | 4 V | 20mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.5 A @ 100 kHz | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.315 (8.00mm) | - | Through Hole |
