贴片铝电解电容 - 诺亚方舟半导体（深圳）有限公司

型号	库存	价格	数量	规格书	Packaging	Series	ProductStatus	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	OperatingTemperature	Polarization	Ratings	Applications	RippleCurrent@LowFrequency	RippleCurrent@HighFrequency	Impedance	LeadSpacing	Size/Dimension	Height-Seated(Max)	SurfaceMountLandSize	MountingType
UAS2D470MPD CAP ALUM 47UF 20% 200V RADIAL Nichicon	12,663	0.84	立即询盘	Datasheet	Bulk	UAS	Active	47 µF	±20%	200 V	-	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	195 mA @ 120 Hz	312 mA @ 10 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	1.063 (27.00mm)	-	Through Hole
UBX1K680MPL CAP ALUM 68UF 20% 80V RADIAL Nichicon	12,906	0.85	立即询盘	Datasheet	Bulk	UBX	Active	68 µF	±20%	80 V	-	1000 Hrs @ 150°C	-55°C ~ 150°C	Polar	-	Automotive	345 mA @ 120 Hz	690 mA @ 100 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.846 (21.50mm)	-	Through Hole

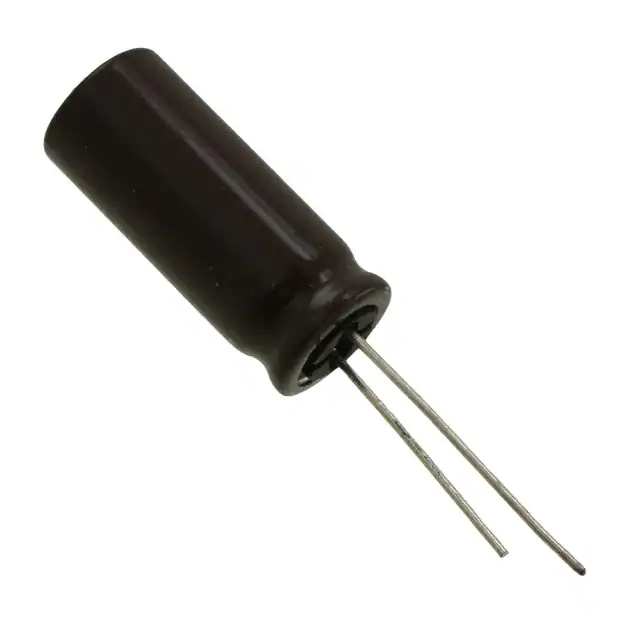

UPJ1K271MHD CAP ALUM 270UF 20% 80V RADIAL Nichicon	13,900	0.85	立即询盘	Datasheet	Bulk	UPJ	Not For New Designs	270 µF	±20%	80 V	-	5000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	667 mA @ 120 Hz	894 mA @ 10 kHz	100 mOhms	0.197 (5.00mm)	0.492 Dia (12.50mm)	1.299 (33.00mm)	-	Through Hole

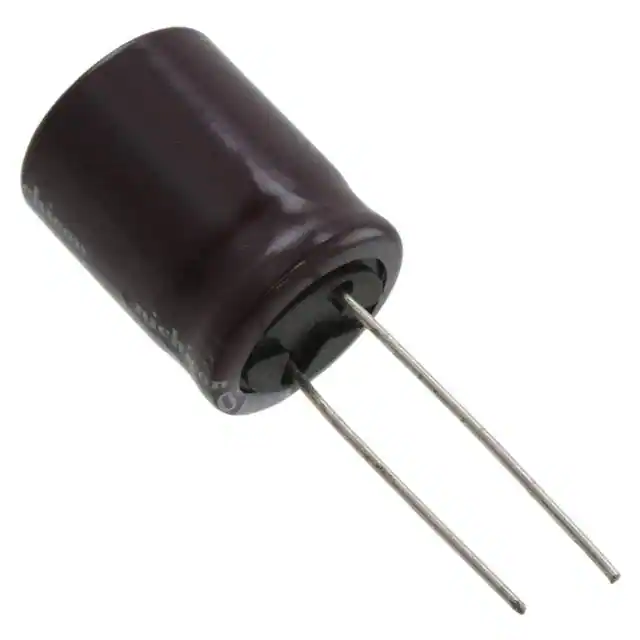

UPM1C182MHD6 CAP ALUM 1800UF 20% 16V RADIAL Nichicon	10,211	0.85	立即询盘	Datasheet	Bulk	UPM	Not For New Designs	1800 µF	±20%	16 V	-	5000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	1.53 A @ 120 Hz	1.7 A @ 10 kHz	37 mOhms	0.295 (7.50mm)	0.630 Dia (16.00mm)	0.866 (22.00mm)	-	Through Hole
UPM0J392MHD6 CAP ALUM 3900UF 20% 6.3V RADIAL Nichicon	11,908	0.85	立即询盘	Datasheet	Bulk	UPM	Not For New Designs	3900 µF	±20%	6.3 V	-	5000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	1.59 A @ 120 Hz	1.77 A @ 10 kHz	36 mOhms	0.295 (7.50mm)	0.630 Dia (16.00mm)	0.866 (22.00mm)	-	Through Hole
UVK1A682MHD CAP ALUM 6800UF 20% 10V RADIAL Nichicon	10,270	0.85	立即询盘	Datasheet	Bulk	UVK	Not For New Designs	6800 µF	±20%	10 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	2.25 A @ 120 Hz	2.5875 A @ 10 kHz	-	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.063 (27.00mm)	-	Through Hole
UPJ2E220MHD CAP ALUM 22UF 20% 250V RADIAL Nichicon	14,325	0.85	立即询盘	Datasheet	Bulk	UPJ	Not For New Designs	22 µF	±20%	250 V	-	5000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	150 mA @ 120 Hz	240 mA @ 10 kHz	-	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.043 (26.50mm)	-	Through Hole

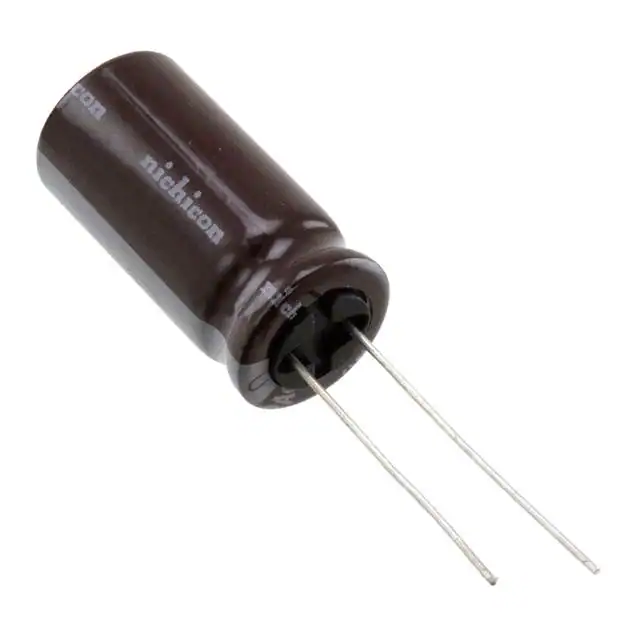

UPA0J392MHD CAP ALUM 3900UF 20% 6.3V RADIAL Nichicon	11,114	0.85	立即询盘	Datasheet	Bulk	UPA	Active	3900 µF	±20%	6.3 V	-	5000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	1.938 A @ 120 Hz	2.28 A @ 100 kHz	22 mOhms	0.197 (5.00mm)	0.492 Dia (12.50mm)	1.063 (27.00mm)	-	Through Hole
URS0J682MHD CAP ALUM 6800UF 20% 6.3V RADIAL Nichicon	12,242	0.85	立即询盘	Datasheet	Bulk	URS	Active	6800 µF	±20%	6.3 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	1.66 A @ 120 Hz	1.909 A @ 10 kHz	-	0.295 (7.50mm)	0.709 Dia (18.00mm)	0.650 (16.50mm)	-	Through Hole
UPS2F330MHD CAP ALUM 33UF 20% 315V RADIAL Nichicon	10,296	0.86	立即询盘	Datasheet	Bulk	UPS	Not For New Designs	33 µF	±20%	315 V	-	3000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	155 mA @ 120 Hz	248 mA @ 10 kHz	-	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.063 (27.00mm)	-	Through Hole
UUG2G4R7MNQ1MS CAP ALUM 4.7UF 20% 400V SMD Nichicon	11,896	0.86	立即询盘	Datasheet	Tape & Reel (TR)	UUG	Not For New Designs	4.7 µF	±20%	400 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	115 mA @ 120 Hz	184 mA @ 10 kHz	-	-	0.492 Dia (12.50mm)	0.571 (14.50mm)	0.535 L x 0.535 W (13.60mm x 13.60mm)	Surface Mount
UPX1E471MHD CAP ALUM 470UF 20% 25V RADIAL Nichicon	12,204	0.86	立即询盘	Datasheet	Bulk	UPX	Not For New Designs	470 µF	±20%	25 V	-	20000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	1.008 A @ 120 Hz	1.344 A @ 100 kHz	-	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.043 (26.50mm)	-	Through Hole
UCM1E242MNJ1MS CAP ALUM 2400UF 20% 25V SMD Nichicon	5,018	1.24	立即询盘	Datasheet	Tape & Reel (TR),Cut Tape (CT)	UCM	Active	2400 µF	±20%	25 V	-	5000 Hrs @ 105°C	-55°C ~ 105°C	Polar	AEC-Q200	Automotive	1.04 A @ 120 Hz	2.08 A @ 100 kHz	46 mOhms	-	0.492 Dia (12.50mm)	0.866 (22.00mm)	0.535 L x 0.535 W (13.60mm x 13.60mm)	Surface Mount
UHD1C272MHD CAP ALUM 2700UF 20% 16V RADIAL Nichicon	11,635	0.86	立即询盘	Datasheet	Bulk	UHD	Not For New Designs	2700 µF	±20%	16 V	-	5000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	2.632 A @ 120 Hz	3.29 A @ 100 kHz	16 mOhms	0.197 (5.00mm)	0.492 Dia (12.50mm)	1.319 (33.50mm)	-	Through Hole
UPJ2D330MHD CAP ALUM 33UF 20% 200V RADIAL Nichicon	12,337	0.86	立即询盘	Datasheet	Bulk	UPJ	Not For New Designs	33 µF	±20%	200 V	-	5000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	180 mA @ 120 Hz	288 mA @ 10 kHz	-	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.043 (26.50mm)	-	Through Hole
URZ2D470MHD6 CAP ALUM 47UF 20% 200V RADIAL Nichicon	14,200	0.86	立即询盘	Datasheet	Bulk	URZ	Active	47 µF	±20%	200 V	-	1000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	300 mA @ 120 Hz	480 mA @ 10 kHz	-	0.295 (7.50mm)	0.630 Dia (16.00mm)	0.846 (21.50mm)	-	Through Hole
UKL2A221MHD CAP ALUM 220UF 20% 100V RADIAL Nichicon	10,272	0.86	立即询盘	Datasheet	Bulk	UKL	Not For New Designs	220 µF	±20%	100 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	580 mA @ 120 Hz	870 mA @ 10 kHz	-	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.043 (26.50mm)	-	Through Hole
UHV1C332MHD CAP ALUM 3300UF 20% 16V RADIAL Nichicon	10,816	0.87	立即询盘	Datasheet	Bulk	UHV	Not For New Designs	3300 µF	±20%	16 V	-	6000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	-	3.795 A @ 100 kHz	12 mOhms	0.197 (5.00mm)	0.492 Dia (12.50mm)	1.319 (33.50mm)	-	Through Hole
URS2G220MHD CAP ALUM 22UF 20% 400V RADIAL Nichicon	11,417	0.87	立即询盘	Datasheet	Bulk	URS	Active	22 µF	±20%	400 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	280 mA @ 120 Hz	448 mA @ 10 kHz	-	0.295 (7.50mm)	0.709 Dia (18.00mm)	0.650 (16.50mm)	-	Through Hole
UEP0J222MHD1TO CAP ALUM 2200UF 20% 6.3V RADIAL Nichicon	13,936	0.87	立即询盘	Datasheet	Tape & Reel (TR)	UEP	Not For New Designs	2200 µF	±20%	6.3 V	-	1000 Hrs @ 105°C	-55°C ~ 105°C	Bi-Polar	-	General Purpose	820 mA @ 120 Hz	943 mA @ 10 kHz	-	0.197 (5.00mm)	0.492 Dia (12.50mm)	1.063 (27.00mm)	-	Through Hole

共24816记录«上一页 1... 768 769 770 771772773 774 775...1241 下一页»
