型号	库存	价格	数量	规格书	Packaging	Series	ProductStatus	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	OperatingTemperature	Polarization	Ratings	Applications	RippleCurrent@LowFrequency	RippleCurrent@HighFrequency	Impedance	LeadSpacing	Size/Dimension	Height-Seated(Max)	SurfaceMountLandSize	MountingType

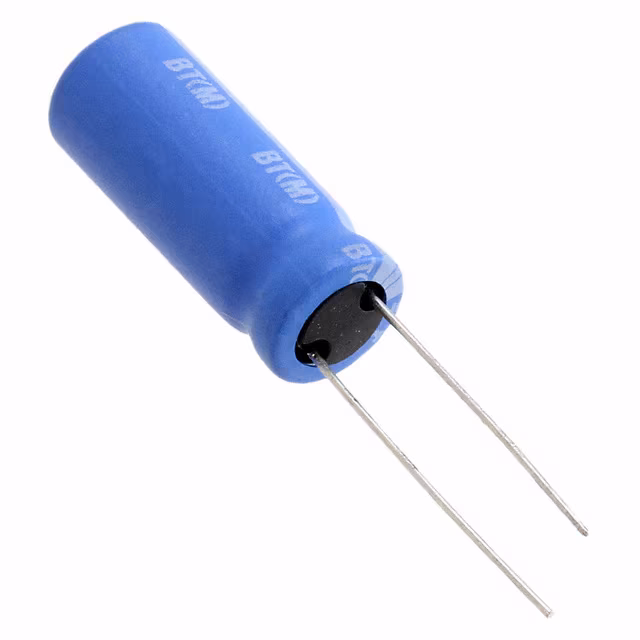

UBT2C680MHD8 CAP ALUM 68UF 20% 160V RADIAL Nichicon	11,279	0.98	立即询盘	Datasheet	Bulk	UBT	Active	68 µF	±20%	160 V	-	2000 Hrs @ 125°C	-40°C ~ 125°C	Polar	-	Automotive	245 mA @ 120 Hz	367.5 mA @ 100 kHz	-	0.197 (5.00mm)	0.492 Dia (12.50mm)	1.063 (27.00mm)	-	Through Hole
UPM0J272MHD6 CAP ALUM 2700UF 20% 6.3V RADIAL Nichicon	11,729	0.69	立即询盘	Datasheet	Bulk	UPM	Not For New Designs	2700 µF	±20%	6.3 V	-	5000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	1.35 A @ 120 Hz	1.5 A @ 10 kHz	44 mOhms	0.295 (7.50mm)	0.709 Dia (18.00mm)	0.669 (17.00mm)	-	Through Hole
UPM1A272MHD6 CAP ALUM 2700UF 20% 10V RADIAL Nichicon	14,807	0.69	立即询盘	Datasheet	Bulk	UPM	Not For New Designs	2700 µF	±20%	10 V	-	5000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	1.56 A @ 120 Hz	1.74 A @ 10 kHz	35 mOhms	0.295 (7.50mm)	0.630 Dia (16.00mm)	0.866 (22.00mm)	-	Through Hole

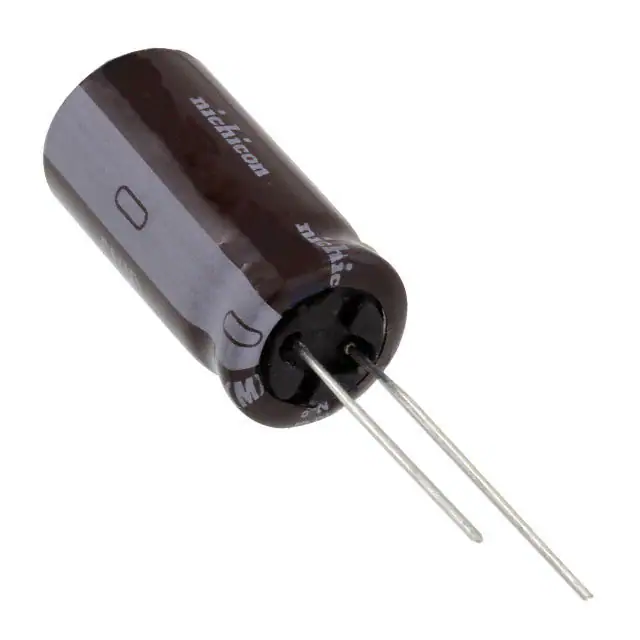

UCA2E470MHD CAP ALUM 47UF 20% 250V RADIAL Nichicon	14,725	0.69	立即询盘	Datasheet	Bulk	UCA	Not For New Designs	47 µF	±20%	250 V	-	12000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	360 mA @ 120 Hz	720 mA @ 100 kHz	-	0.197 (5.00mm)	0.492 Dia (12.50mm)	1.043 (26.50mm)	-	Through Hole
UBX1A471MPL CAP ALUM 470UF 20% 10V RADIAL Nichicon	13,115	0.69	立即询盘	Datasheet	Bulk	UBX	Active	470 µF	±20%	10 V	-	1000 Hrs @ 150°C	-55°C ~ 150°C	Polar	-	Automotive	200 mA @ 120 Hz	400 mA @ 100 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.846 (21.50mm)	-	Through Hole
UPJ1J391MHD6 CAP ALUM 390UF 20% 63V RADIAL Nichicon	11,398	0.69	立即询盘	Datasheet	Bulk	UPJ	Not For New Designs	390 µF	±20%	63 V	-	5000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	1.17 A @ 120 Hz	1.5 A @ 10 kHz	70 mOhms	0.295 (7.50mm)	0.630 Dia (16.00mm)	0.846 (21.50mm)	-	Through Hole

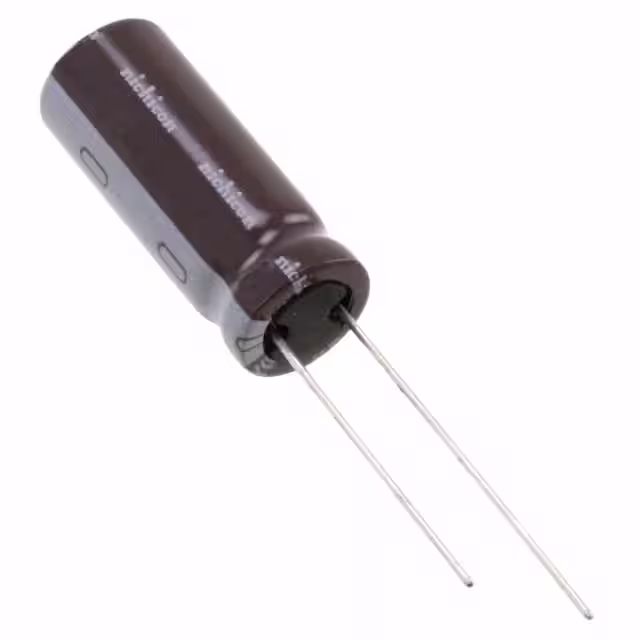

UCY2E390MPD CAP ALUM 39UF 20% 250V RADIAL Nichicon	11,363	0.70	立即询盘	Datasheet	Bulk	UCY	Active	39 µF	±20%	250 V	-	12000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	345 mA @ 120 Hz	690 mA @ 100 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	1.043 (26.50mm)	-	Through Hole
UES1C102MHM1TN CAP ALUM 1000UF 20% 16V RADIAL Nichicon	8,362	1.00	立即询盘	Datasheet	Tape & Reel (TR)	UES	Not For New Designs	1000 µF	±20%	16 V	-	1000 Hrs @ 85°C	-40°C ~ 85°C	Bi-Polar	-	Audio	-	-	-	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.043 (26.50mm)	-	Through Hole
UHV0J392MHD CAP ALUM 3900UF 20% 6.3V RADIAL Nichicon	10,563	0.70	立即询盘	Datasheet	Bulk	UHV	Not For New Designs	3900 µF	±20%	6.3 V	-	6000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	-	2.725 A @ 100 kHz	16 mOhms	0.197 (5.00mm)	0.492 Dia (12.50mm)	0.866 (22.00mm)	-	Through Hole
UBY1H821MHL CAP ALUM 820UF 20% 50V RADIAL Nichicon	7,541	1.00	立即询盘	Datasheet	Bulk	UBY	Active	820 µF	±20%	50 V	44mOhm @ 100kHz	3000 Hrs @ 135°C	-40°C ~ 135°C	Polar	-	Automotive	2.01 A @ 120 Hz	3.35 A @ 100 kHz	-	0.197 (5.00mm)	0.492 Dia (12.50mm)	1.043 (26.50mm)	-	Through Hole
UPM2A820MHD6 CAP ALUM 82UF 20% 100V RADIAL Nichicon	14,026	0.70	立即询盘	Datasheet	Bulk	UPM	Not For New Designs	82 µF	±20%	100 V	-	5000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	435 mA @ 120 Hz	-	190 mOhms	0.295 (7.50mm)	0.630 Dia (16.00mm)	0.669 (17.00mm)	-	Through Hole
UHE0J562MHD6TN CAP ALUM 5600UF 20% 6.3V RADIAL Nichicon	13,444	0.70	立即询盘	Datasheet	Tape & Reel (TR)	UHE	Not For New Designs	5600 µF	±20%	6.3 V	-	8000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	2.024 A @ 120 Hz	2.53 A @ 100 kHz	27 mOhms	0.295 (7.50mm)	0.630 Dia (16.00mm)	0.866 (22.00mm)	-	Through Hole
UPA1C222MHD3 CAP ALUM 2200UF 20% 16V RADIAL Nichicon	10,142	0.70	立即询盘	Datasheet	Bulk	UPA	Active	2200 µF	±20%	16 V	-	5000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	1.938 A @ 120 Hz	2.28 A @ 100 kHz	22 mOhms	0.197 (5.00mm)	0.492 Dia (12.50mm)	1.063 (27.00mm)	-	Through Hole
UBT2C330MPD CAP ALUM 33UF 20% 160V RADIAL Nichicon	11,470	0.70	立即询盘	Datasheet	Bulk	UBT	Active	33 µF	±20%	160 V	-	2000 Hrs @ 125°C	-40°C ~ 125°C	Polar	-	Automotive	154 mA @ 120 Hz	277.2 mA @ 100 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	1.063 (27.00mm)	-	Through Hole
UAQ2D470MHD6TO CAP ALUM 47UF 20% 200V RADIAL Nichicon	13,098	0.70	立即询盘	Datasheet	Tape & Box (TB)	UAQ	Active	47 µF	±20%	200 V	-	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	195 mA @ 120 Hz	312 mA @ 10 kHz	-	0.197 (5.00mm)	0.492 Dia (12.50mm)	0.866 (22.00mm)	-	Through Hole
UHV1C272MHD1TO CAP ALUM 2700UF 20% 16V RADIAL Nichicon	11,433	0.70	立即询盘	Datasheet	Tape & Reel (TR)	UHV	Not For New Designs	2700 µF	±20%	16 V	-	6000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	2.393 A @ 120 Hz	3.19 A @ 100 kHz	14 mOhms	0.197 (5.00mm)	0.492 Dia (12.50mm)	1.063 (27.00mm)	-	Through Hole
UBT2G220MHD8 CAP ALUM 22UF 20% 400V RADIAL Nichicon	9,958	1.01	立即询盘	Datasheet	Bulk	UBT	Active	22 µF	±20%	400 V	-	2000 Hrs @ 125°C	-25°C ~ 125°C	Polar	-	Automotive	142 mA @ 120 Hz	255.6 mA @ 100 kHz	-	0.197 (5.00mm)	0.492 Dia (12.50mm)	1.319 (33.50mm)	-	Through Hole
UHE2A181MHD6TN CAP ALUM 180UF 20% 100V RADIAL Nichicon	11,637	0.71	立即询盘	Datasheet	Tape & Reel (TR)	UHE	Not For New Designs	180 µF	±20%	100 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	721 mA @ 120 Hz	1.03 A @ 100 kHz	120 mOhms	0.295 (7.50mm)	0.709 Dia (18.00mm)	0.650 (16.50mm)	-	Through Hole
UPM1K271MHD6 CAP ALUM 270UF 20% 80V RADIAL Nichicon	13,037	0.71	立即询盘	Datasheet	Bulk	UPM	Not For New Designs	270 µF	±20%	80 V	-	5000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	920 mA @ 120 Hz	1.24 A @ 10 kHz	110 mOhms	0.295 (7.50mm)	0.630 Dia (16.00mm)	0.866 (22.00mm)	-	Through Hole
UBT2E330MHD8 CAP ALUM 33UF 20% 250V RADIAL Nichicon	5,124	1.01	立即询盘	Datasheet	Bulk	UBT	Active	33 µF	±20%	250 V	-	2000 Hrs @ 125°C	-40°C ~ 125°C	Polar	-	Automotive	171 mA @ 120 Hz	307.8 mA @ 100 kHz	-	0.197 (5.00mm)	0.492 Dia (12.50mm)	1.063 (27.00mm)	-	Through Hole

共24816记录«上一页 1... 760 761 762 763764765 766 767...1241 下一页»
