| 图片 | 型号 | 库存 | 价格 | 数量 | 规格书 | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6.3SEV47M5X5.5CAP ALUM 47UF 20% 6.3V SMD |
14,351 | 0.50 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SEV | Active | 47 µF | ±20% | 6.3 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 46 mA @ 120 Hz | - | - | - | 0.197 Dia (5.00mm) | 0.217 (5.50mm) | 0.209 L x 0.209 W (5.30mm x 5.30mm) | Surface Mount |
|

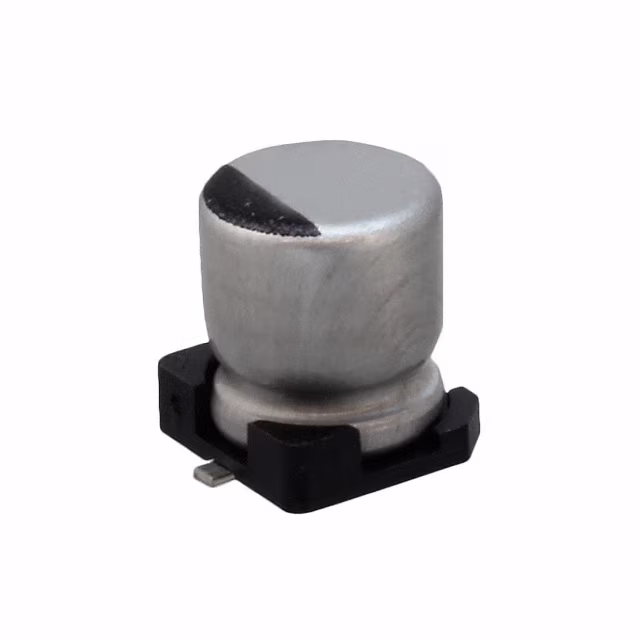

35SGV10M5X6.1CAP ALUM 10UF 20% 35V SMD |
11,736 | 0.51 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SGV | Active | 10 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 28 mA @ 120 Hz | 42 mA @ 10 kHz | - | - | 0.197 Dia (5.00mm) | 0.240 (6.10mm) | 0.209 L x 0.209 W (5.30mm x 5.30mm) | Surface Mount |
|

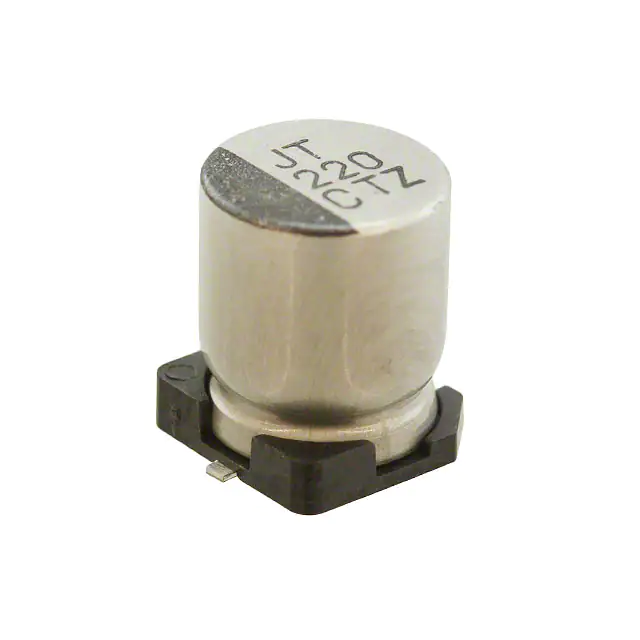

16TZV220M6.3X8CAP ALUM 220UF 20% 16V SMD |
13,105 | 0.51 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TZV | Active | 220 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 180 mA @ 120 Hz | 300 mA @ 100 kHz | 340 mOhms | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
16SKV10M4X5.5CAP ALUM 10UF 20% 16V SMD |
13,170 | 0.53 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SKV | Active | 10 µF | ±20% | 16 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 20 mA @ 120 Hz | 30 mA @ 10 kHz | - | - | 0.157 Dia (4.00mm) | 0.217 (5.50mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|
35SZV10M5X5.5CAP ALUM 10UF 20% 35V SMD |
14,025 | 0.53 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SZV | Active | 10 µF | ±20% | 35 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 52.25 mA @ 120 Hz | 95 mA @ 100 kHz | 2 Ohms | - | 0.197 Dia (5.00mm) | 0.217 (5.50mm) | 0.209 L x 0.209 W (5.30mm x 5.30mm) | Surface Mount |
|
|
6.3SZV47M5X5.5CAP ALUM 47UF 20% 6.3V SMD |
14,400 | 0.53 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SZV | Active | 47 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 66.5 mA @ 120 Hz | 95 mA @ 100 kHz | 1.8 Ohms | - | 0.197 Dia (5.00mm) | 0.217 (5.50mm) | 0.209 L x 0.209 W (5.30mm x 5.30mm) | Surface Mount |
|

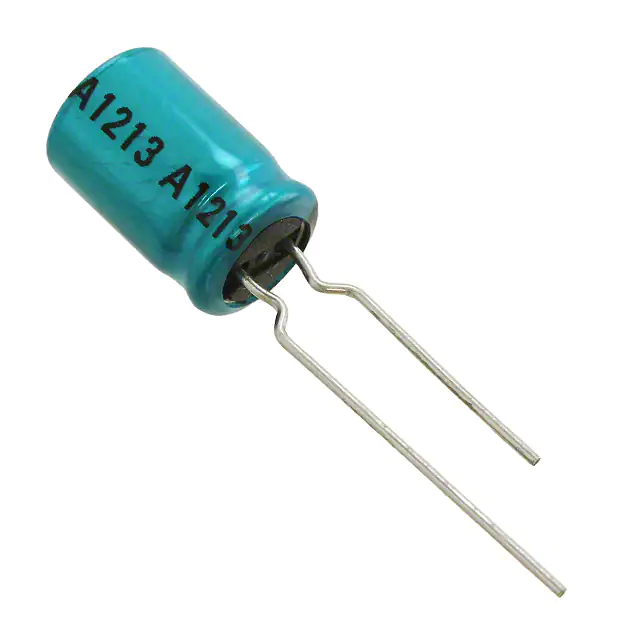

16RX30330MTA8X11.5CAP ALUM 330UF 20% 16V RADIAL |
14,522 | 0.54 |
立即询盘 |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | RX30 | Active | 330 µF | ±20% | 16 V | - | 2000 Hrs @ 130°C | -40°C ~ 130°C | Polar | AEC-Q200 | Automotive | 252 mA @ 120 Hz | 360 mA @ 100 kHz | 220 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.531 (13.50mm) | - | Through Hole |
|
16TZV10M4X6.1CAP ALUM 10UF 20% 16V SMD |
10,413 | 0.56 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TZV | Active | 10 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 28.8 mA @ 120 Hz | 90 mA @ 100 kHz | 1.35 Ohms | - | 0.157 Dia (4.00mm) | 0.240 (6.10mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|
6.3SKV220M6.3X5.5CAP ALUM 220UF 20% 6.3V SMD |
11,879 | 0.55 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SKV | Active | 220 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 74 mA @ 120 Hz | 88.8 mA @ 10 kHz | - | - | 0.248 Dia (6.30mm) | 0.217 (5.50mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
|
16TZV47M6.3X6.1CAP ALUM 47UF 20% 16V SMD |
14,765 | 0.57 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TZV | Active | 47 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 80 mA @ 120 Hz | 250 mA @ 100 kHz | 360 mOhms | - | 0.248 Dia (6.30mm) | 0.240 (6.10mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
35RX30100MT78X11.5CAP ALUM 100UF 20% 35V RADIAL |
13,410 | 0.56 |
立即询盘 |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | RX30 | Active | 100 µF | ±20% | 35 V | - | 2000 Hrs @ 130°C | -40°C ~ 130°C | Polar | AEC-Q200 | Automotive | 252 mA @ 120 Hz | 360 mA @ 100 kHz | 220 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
16SEV47M6.3X5.5CAP ALUM 47UF 20% 16V SMD |
13,607 | 0.57 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SEV | Active | 47 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 60 mA @ 120 Hz | 90 mA @ 10 kHz | - | - | 0.248 Dia (6.30mm) | 0.217 (5.50mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
50SLV4.7M5X6.1CAP ALUM 4.7UF 20% 50V SMD |
10,095 | 0.57 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SLV | Active | 4.7 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 19 mA @ 120 Hz | 28.5 mA @ 10 kHz | - | - | 0.197 Dia (5.00mm) | 0.240 (6.10mm) | 0.209 L x 0.209 W (5.30mm x 5.30mm) | Surface Mount |
|
|
6.3SEV100M6.3X5.5CAP ALUM 100UF 20% 6.3V SMD |
14,654 | 0.57 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SEV | Active | 100 µF | ±20% | 6.3 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 71 mA @ 120 Hz | 85.2 mA @ 10 kHz | - | - | 0.248 Dia (6.30mm) | 0.217 (5.50mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
35TRV33M6.3X6.1CAP ALUM 33UF 20% 35V SMD |
14,374 | 0.60 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TRV | Active | 33 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 63 mA @ 120 Hz | 140 mA @ 100 kHz | 1 Ohms | - | 0.248 Dia (6.30mm) | 0.240 (6.10mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
|
35SEV10M5X5.5CAP ALUM 10UF 20% 35V SMD |
12,710 | 0.58 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SEV | Active | 10 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 30 mA @ 120 Hz | 45 mA @ 10 kHz | - | - | 0.197 Dia (5.00mm) | 0.217 (5.50mm) | 0.209 L x 0.209 W (5.30mm x 5.30mm) | Surface Mount |
|
|
50SEV10M5X5.5CAP ALUM 10UF 20% 50V SMD |
11,708 | 0.58 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SEV | Active | 10 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 30 mA @ 120 Hz | 45 mA @ 10 kHz | - | - | 0.197 Dia (5.00mm) | 0.217 (5.50mm) | 0.209 L x 0.209 W (5.30mm x 5.30mm) | Surface Mount |
|
6.3SGV100M6.3X6.1CAP ALUM 100UF 20% 6.3V SMD |
12,307 | 0.58 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SGV | Active | 100 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 71 mA @ 120 Hz | 85.2 mA @ 10 kHz | - | - | 0.248 Dia (6.30mm) | 0.240 (6.10mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
|
25SGV33M6.3X6.1CAP ALUM 33UF 20% 25V SMD |
14,851 | 0.59 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SGV | Active | 33 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 65 mA @ 120 Hz | 97.5 mA @ 10 kHz | - | - | 0.248 Dia (6.30mm) | 0.240 (6.10mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
50YXG220MEFCT810X16CAP ALUM 220UF 20% 50V RADIAL |
11,704 | 0.63 |
立即询盘 |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | YXG | Active | 220 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 525 mA @ 120 Hz | 1.05 A @ 100 kHz | 84 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.689 (17.50mm) | - | Through Hole |
