| 图片 | 型号 | 库存 | 价格 | 数量 | 规格书 | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B43457A9688M3CAP ALUM 6800UF 20% 400V SCREW |
12,924 | 0.00 |
立即询盘 |
Datasheet |
Bulk | B43457 | Active | 6800 µF | ±20% | 400 V | 20mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 12.6 A @ 100 Hz | - | 24 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 5.677 (144.20mm) | - | Chassis, Stud Mount |
|
B43457B4478M000CAP ALUM 4700UF 20% 350V SCREW |
13,293 | 0.00 |
立即询盘 |
Datasheet |
Bulk | B43457 | Active | 4700 µF | ±20% | 350 V | 25mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 10.2 A @ 100 Hz | - | 30 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 4.201 (106.70mm) | - | Chassis, Stud Mount |
|
|
B43457B4478M003CAP ALUM 4700UF 20% 350V SCREW |
12,691 | 0.00 |
立即询盘 |
Datasheet |
Bulk | B43457 | Active | 4700 µF | ±20% | 350 V | 25mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 10.2 A @ 100 Hz | - | 30 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 4.201 (106.70mm) | - | Chassis, Stud Mount |
|
|
B43457B4828MCAP ALUM 8200UF 20% 350V SCREW |
13,578 | 0.00 |
立即询盘 |
Datasheet |
Bulk | B43457 | Active | 8200 µF | ±20% | 350 V | 15mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 15.4 A @ 100 Hz | - | 18 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 6.681 (169.70mm) | - | Chassis, Stud Mount |
|
|
B43457B4828M3CAP ALUM 8200UF 20% 350V SCREW |
14,816 | 0.00 |
立即询盘 |
Datasheet |
Bulk | B43457 | Active | 8200 µF | ±20% | 350 V | 15mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 15.4 A @ 100 Hz | - | 18 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 6.681 (169.70mm) | - | Chassis, Stud Mount |
|
|
B43457B5478M003CAP ALUM 4700UF 20% 450V SCREW |
2,187 | 0.00 |
立即询盘 |
Datasheet |
Bulk | B43457 | Obsolete | 4700 µF | ±20% | 450 V | 23mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 11.7 A @ 100 Hz | - | 28 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 5.677 (144.20mm) | - | Chassis, Stud Mount |
|
|
B43457C5338MCAP ALUM 3300UF 20% 450V SCREW |
13,347 | 0.00 |
立即询盘 |
Datasheet |
Bulk | B43457 | Active | 3300 µF | ±20% | 450 V | 30mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 9.4 A @ 100 Hz | - | 36 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 4.201 (106.70mm) | - | Chassis, Stud Mount |
|
|
B43457C5338M3CAP ALUM 3300UF 20% 450V SCREW |
12,287 | 0.00 |
立即询盘 |
Datasheet |
Bulk | B43457 | Active | 3300 µF | ±20% | 450 V | 30mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 9.4 A @ 100 Hz | - | 36 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 4.201 (106.70mm) | - | Chassis, Stud Mount |
|
B43458A4568M003CAP ALUM 5600UF 20% 350V SCREW |
11,395 | 0.00 |
立即询盘 |
Datasheet |
Bulk | B43458 | Active | 5600 µF | ±20% | 350 V | 14mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 15 A @ 100 Hz | - | 17 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 4.201 (106.70mm) | - | Chassis Mount |
|

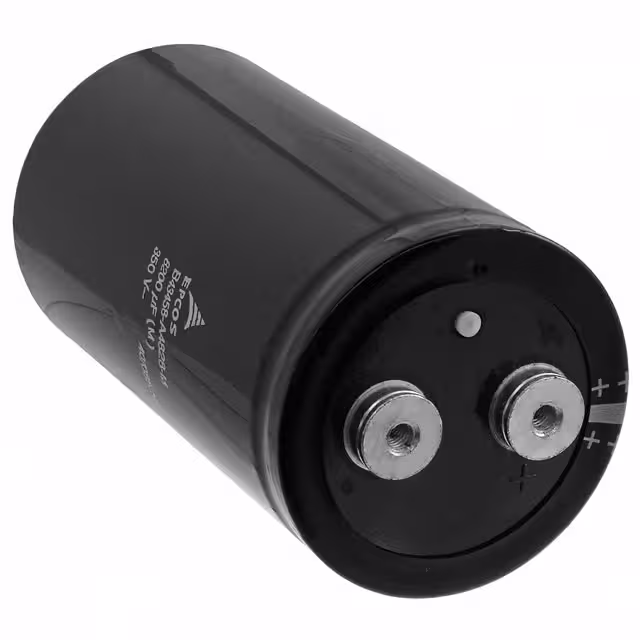

B43458A4828M000CAP ALUM 8200UF 20% 350V SCREW |
10,114 | 0.00 |
立即询盘 |
Datasheet |
Bulk | B43458 | Active | 8200 µF | ±20% | 350 V | 11mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 20 A @ 100 Hz | - | 12 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 5.677 (144.20mm) | - | Chassis Mount |
|
|
B43458A4828M003CAP ALUM 8200UF 20% 350V SCREW |
11,387 | 0.00 |
立即询盘 |
Datasheet |
Bulk | B43458 | Active | 8200 µF | ±20% | 350 V | 11mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 20 A @ 100 Hz | - | 12 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 5.677 (144.20mm) | - | Chassis Mount |
|
|
B43458A5338M003CAP ALUM 3300UF 20% 450V SCREW |
11,593 | 0.00 |
立即询盘 |
Datasheet |
Bulk | B43458 | Active | 3300 µF | ±20% | 450 V | 35mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 12 A @ 100 Hz | - | 40 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 4.201 (106.70mm) | - | Chassis Mount |
|
|
B43458A9478M003CAP ALUM 4700UF 20% 400V SCREW |
13,803 | 0.00 |
立即询盘 |
Datasheet |
Bulk | B43458 | Active | 4700 µF | ±20% | 400 V | 16mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 14 A @ 100 Hz | - | 17 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 4.201 (106.70mm) | - | Chassis Mount |
|
|
B43458A9688M003CAP ALUM 6800UF 20% 400V SCREW |
14,239 | 0.00 |
立即询盘 |
Datasheet |
Bulk | B43458 | Active | 6800 µF | ±20% | 400 V | 11mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 19 A @ 100 Hz | - | 14 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 5.677 (144.20mm) | - | Chassis Mount |
|
|
B43564A2109M3CAP ALUM 10000UF 20% 250V SCREW |
14,784 | 0.00 |
立即询盘 |
Datasheet |
Bulk | B43564 | Active | 10000 µF | ±20% | 250 V | 20mOhm @ 100Hz | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 19.1 A @ 100 Hz | - | 16 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 5.677 (144.20mm) | - | Chassis Mount |
|
|
B43564A2109M7CAP ALUM 10000UF 20% 250V SCREW |
3,390 | 0.00 |
立即询盘 |
Datasheet |
Bulk | B43564 | Obsolete | 10000 µF | ±20% | 250 V | 20mOhm @ 100Hz | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 19.1 A @ 100 Hz | - | 16 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 5.677 (144.20mm) | - | Chassis Mount |
|
|
B43564A2129M000CAP ALUM 12000UF 20% 250V SCREW |
3,118 | 0.00 |
立即询盘 |
Datasheet |
Bulk | B43564 | Obsolete | 12000 µF | ±20% | 250 V | 14mOhm @ 100Hz | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 24.1 A @ 100 Hz | - | 11 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 5.677 (144.20mm) | - | Chassis Mount |
|
|
B43564A2129M003CAP ALUM 12000UF 20% 250V SCREW |
3,422 | 0.00 |
立即询盘 |
Datasheet |
Bulk | B43564 | Obsolete | 12000 µF | ±20% | 250 V | 14mOhm @ 100Hz | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 24.1 A @ 100 Hz | - | 11 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 5.677 (144.20mm) | - | Chassis Mount |
|
|
B43564A2129M7CAP ALUM 12000UF 20% 250V SCREW |
11,203 | 0.00 |
立即询盘 |
Datasheet |
Bulk | B43564 | Active | 12000 µF | ±20% | 250 V | 14mOhm @ 100Hz | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 24.1 A @ 100 Hz | - | 11 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 5.677 (144.20mm) | - | Chassis Mount |
|
|
B43564A2688M3CAP ALUM 6800UF 20% 250V SCREW |
11,665 | 0.00 |
立即询盘 |
Datasheet |
Bulk | B43564 | Active | 6800 µF | ±20% | 250 V | - | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | - | - | - | - | - | - | - | Chassis Mount |
