| 图片 | 型号 | 库存 | 价格 | 数量 | 规格书 | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B43584A6188M003CAP ALUM 1800UF 20% 500V SCREW |
2,523 | 0.00 |
立即询盘 |
Datasheet |
Bulk | B43584 | Obsolete | 1800 µF | ±20% | 500 V | 89mOhm @ 100Hz | 12000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 7.9 A @ 100 Hz | - | - | 1.122 (28.50mm) | 2.532 Dia (64.30mm) | 4.201 (106.70mm) | - | Chassis, Stud Mount |
|
|
B43584A9338M000CAP ALUM 3300UF 20% 400V SCREW |
12,789 | 0.00 |
立即询盘 |
Datasheet |
Bulk | B43584 | Active | 3300 µF | ±20% | 400 V | 36mOhm @ 100Hz | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 9.9 A @ 100 Hz | - | 43 mOhms | 1.122 (28.50mm) | 2.532 Dia (64.30mm) | 4.201 (106.70mm) | - | Chassis, Stud Mount |
|
|
B43584A9338M003CAP ALUM 3300UF 20% 400V SCREW |
10,608 | 0.00 |
立即询盘 |
Datasheet |
Bulk | B43584 | Active | 3300 µF | ±20% | 400 V | 36mOhm @ 100Hz | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 9.9 A @ 100 Hz | - | 43 mOhms | 1.122 (28.50mm) | 2.532 Dia (64.30mm) | 4.201 (106.70mm) | - | Chassis, Stud Mount |
|
|
B43584B4338M003CAP ALUM 3300UF 20% 350V SCREW |
3,626 | 0.00 |
立即询盘 |
Datasheet |
Bulk | B43584 | Obsolete | 3300 µF | ±20% | 350 V | 48mOhm @ 100Hz | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 11 A @ 100 Hz | - | - | 1.122 (28.50mm) | 2.532 Dia (64.30mm) | 4.201 (106.70mm) | - | Chassis, Stud Mount |
|
|
B43584B5228M003CAP ALUM 2200UF 20% 450V SCREW |
14,676 | 0.00 |
立即询盘 |
Datasheet |
Bulk | B43584 | Active | 2200 µF | ±20% | 450 V | 43mOhm @ 100Hz | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 9 A @ 100 Hz | - | 52 mOhms | 1.122 (28.50mm) | 2.532 Dia (64.30mm) | 4.201 (106.70mm) | - | Chassis, Stud Mount |
|
|
B43584B5338M000CAP ALUM 3300UF 20% 450V SCREW |
3,483 | 0.00 |
立即询盘 |
Datasheet |
Bulk | B43584 | Obsolete | 3300 µF | ±20% | 450 V | 32mOhm @ 100Hz | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 11.7 A @ 100 Hz | - | 38 mOhms | 1.122 (28.50mm) | 2.532 Dia (64.30mm) | 5.677 (144.20mm) | - | Chassis, Stud Mount |
|
|
B43584B5338M3CAP ALUM 3300UF 20% 450V SCREW |
11,554 | 0.00 |
立即询盘 |
Datasheet |
Bulk | B43584 | Active | 3300 µF | ±20% | 450 V | 32mOhm @ 100Hz | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 11.7 A @ 100 Hz | - | 38 mOhms | 1.122 (28.50mm) | 2.532 Dia (64.30mm) | 5.677 (144.20mm) | - | Chassis, Stud Mount |
|

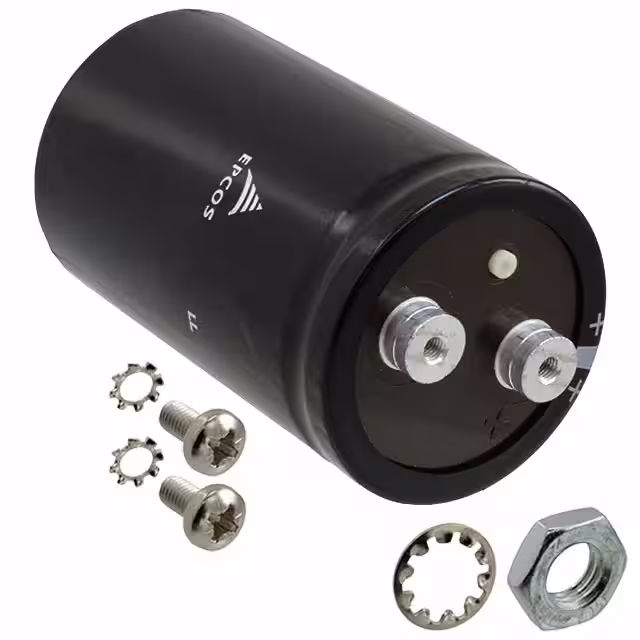

B43584B6188M000CAP ALUM 1800UF 20% 500V SCREW |
13,742 | 0.00 |
立即询盘 |
Datasheet |
Bulk | B43584 | Active | 1800 µF | ±20% | 500 V | 59mOhm @ 100Hz | 12000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 7.9 A @ 100 Hz | - | 71 mOhms | 1.122 (28.50mm) | 2.532 Dia (64.30mm) | 4.201 (106.70mm) | - | Chassis, Stud Mount |
|
|
B43584B6188M3CAP ALUM 1800UF 20% 500V SCREW |
14,047 | 0.00 |
立即询盘 |
Datasheet |
Bulk | B43584 | Active | 1800 µF | ±20% | 500 V | 59mOhm @ 100Hz | 12000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 7.9 A @ 100 Hz | - | 71 mOhms | 1.122 (28.50mm) | 2.532 Dia (64.30mm) | 4.201 (106.70mm) | - | Chassis, Stud Mount |
|
|
B43584B9228M000CAP ALUM 2200UF 20% 400V SCREW |
14,013 | 0.00 |
立即询盘 |
Datasheet |
Bulk | B43584 | Active | 2200 µF | ±20% | 400 V | 48mOhm @ 100Hz | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 7.9 A @ 100 Hz | - | 58 mOhms | 1.122 (28.50mm) | 2.532 Dia (64.30mm) | 3.217 (81.70mm) | - | Chassis, Stud Mount |
|
|
B43584B9228M3CAP ALUM 2200UF 20% 400V SCREW |
12,922 | 0.00 |
立即询盘 |
Datasheet |
Bulk | B43584 | Active | 2200 µF | ±20% | 400 V | 48mOhm @ 100Hz | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 7.9 A @ 100 Hz | - | 58 mOhms | 1.122 (28.50mm) | 2.532 Dia (64.30mm) | 3.217 (81.70mm) | - | Chassis, Stud Mount |
|
|
B43584C2478M000CAP ALUM 4700UF 20% 250V SCREW |
2,785 | 0.00 |
立即询盘 |
Datasheet |
Bulk | B43584 | Obsolete | 4700 µF | ±20% | 250 V | 26mOhm @ 100Hz | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 11.1 A @ 100 Hz | - | 31 mOhms | 1.122 (28.50mm) | 2.532 Dia (64.30mm) | 4.201 (106.70mm) | - | Chassis, Stud Mount |
|
|
B43584C2478M3CAP ALUM 4700UF 20% 250V SCREW |
12,571 | 0.00 |
立即询盘 |
Datasheet |
Bulk | B43584 | Active | 4700 µF | ±20% | 250 V | 26mOhm @ 100Hz | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 11.1 A @ 100 Hz | - | 31 mOhms | 1.122 (28.50mm) | 2.532 Dia (64.30mm) | 4.201 (106.70mm) | - | Chassis, Stud Mount |
|
|
B43584C4478M000CAP ALUM 4700UF 20% 350V SCREW |
14,090 | 0.00 |
立即询盘 |
Datasheet |
Bulk | B43584 | Active | 4700 µF | ±20% | 350 V | 25mOhm @ 100Hz | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 12.8 A @ 100 Hz | - | 30 mOhms | 1.122 (28.50mm) | 2.532 Dia (64.30mm) | 5.677 (144.20mm) | - | Chassis, Stud Mount |
|
|
B43584C4478M3CAP ALUM 4700UF 20% 350V SCREW |
12,737 | 0.00 |
立即询盘 |
Datasheet |
Bulk | B43584 | Active | 4700 µF | ±20% | 350 V | 25mOhm @ 100Hz | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 12.8 A @ 100 Hz | - | 30 mOhms | 1.122 (28.50mm) | 2.532 Dia (64.30mm) | 5.677 (144.20mm) | - | Chassis, Stud Mount |
|
B43584C5338M003CAP ALUM 3300UF 20% 450V SCREW |
2,917 | 0.00 |
立即询盘 |
Datasheet |
Bulk | B43584 | Obsolete | 3300 µF | ±20% | 450 V | 32mOhm @ 100Hz | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 11.6 A @ 100 Hz | - | 38 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 4.201 (106.70mm) | - | Chassis, Stud Mount |
|
|
B43584D4338M000CAP ALUM 3300UF 20% 350V SCREW |
11,417 | 0.00 |
立即询盘 |
Datasheet |
Bulk | B43584 | Active | 3300 µF | ±20% | 350 V | 32mOhm @ 100Hz | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 11 A @ 100 Hz | - | 38 mOhms | 1.122 (28.50mm) | 2.532 Dia (64.30mm) | 4.201 (106.70mm) | - | Chassis, Stud Mount |
|
|
B43584D4338M3CAP ALUM 3300UF 20% 350V SCREW |
13,872 | 0.00 |
立即询盘 |
Datasheet |
Bulk | B43584 | Active | 3300 µF | ±20% | 350 V | 32mOhm @ 100Hz | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 11 A @ 100 Hz | - | 38 mOhms | 1.122 (28.50mm) | 2.532 Dia (64.30mm) | 4.201 (106.70mm) | - | Chassis, Stud Mount |
|
|
B43584F2478M000CAP ALUM 4700UF 20% 200V SCREW |
10,112 | 0.00 |
立即询盘 |
Datasheet |
Bulk | B43584 | Active | 4700 µF | ±20% | 200 V | 29mOhm @ 100Hz | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 10 A @ 100 Hz | - | 35 mOhms | 1.122 (28.50mm) | 2.532 Dia (64.30mm) | 3.217 (81.70mm) | - | Chassis, Stud Mount |
|
|
B43584F2478M3CAP ALUM 4700UF 20% 200V SCREW |
13,943 | 0.00 |
立即询盘 |
Datasheet |
Bulk | B43584 | Active | 4700 µF | ±20% | 200 V | 29mOhm @ 100Hz | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 10 A @ 100 Hz | - | 35 mOhms | 1.122 (28.50mm) | 2.532 Dia (64.30mm) | 3.217 (81.70mm) | - | Chassis, Stud Mount |
