| 图片 | 型号 | 库存 | 价格 | 数量 | 规格书 | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

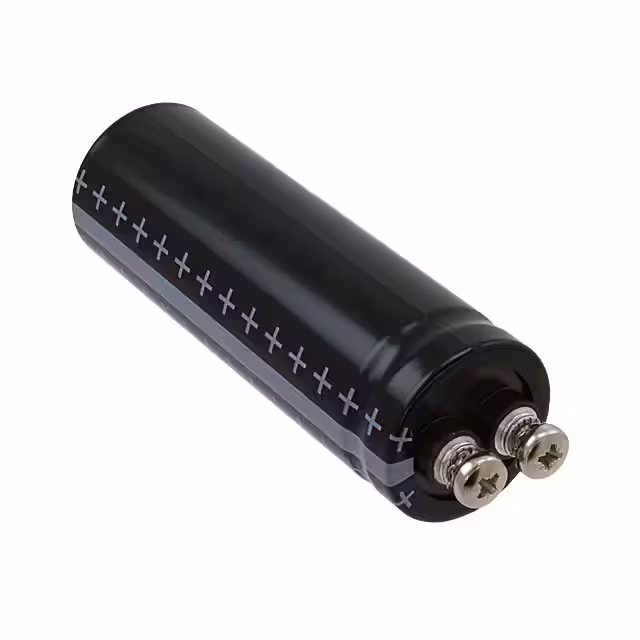

B41458B7339M000CAP ALUM 33000UF 20% 40V SCREW |
3,511 | 0.00 |
立即询盘 |
Datasheet |
Bulk | B41458 | Obsolete | 33000 µF | ±20% | 40 V | 15mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 12 A @ 100 Hz | - | 13 mOhms | 0.500 (12.70mm) | 1.406 Dia (35.70mm) | 4.201 (106.70mm) | - | Chassis Mount |
|
B41458B8109M000CAP ALUM 10000UF 20% 63V SCREW |
2,797 | 0.00 |
立即询盘 |
Datasheet |
Bulk | B41458 | Obsolete | 10000 µF | ±20% | 63 V | 31mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.7 A @ 100 Hz | - | 30 mOhms | 0.500 (12.70mm) | 1.406 Dia (35.70mm) | 3.217 (81.70mm) | - | Chassis Mount |
|
|
B41458B8159M000CAP ALUM 15000UF 20% 63V SCREW |
3,450 | 0.00 |
立即询盘 |
Datasheet |
Bulk | B41458 | Obsolete | 15000 µF | ±20% | 63 V | 22mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 10 A @ 100 Hz | - | 21 mOhms | 0.500 (12.70mm) | 1.406 Dia (35.70mm) | 4.201 (106.70mm) | - | Chassis Mount |
|
B41458B8478M000CAP ALUM 4700UF 20% 63V SCREW |
2,860 | 0.00 |
立即询盘 |
Datasheet |
Bulk | B41458 | Obsolete | 4700 µF | ±20% | 63 V | 60mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.9 A @ 100 Hz | - | 58 mOhms | 0.500 (12.70mm) | 1.406 Dia (35.70mm) | 2.232 (56.70mm) | - | Chassis Mount |
|
|
B41458B8688M000CAP ALUM 6800UF 20% 63V SCREW |
3,952 | 0.00 |
立即询盘 |
Datasheet |
Bulk | B41458 | Obsolete | 6800 µF | ±20% | 63 V | 43mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.9 A @ 100 Hz | - | 42 mOhms | 0.500 (12.70mm) | 1.406 Dia (35.70mm) | 2.232 (56.70mm) | - | Chassis Mount |
|
|
B41458B9228M000CAP ALUM 2200UF 20% 100V SCREW |
3,176 | 0.00 |
立即询盘 |
Datasheet |
Bulk | B41458 | Obsolete | 2200 µF | ±20% | 100 V | 80mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.3 A @ 100 Hz | - | 70 mOhms | 0.500 (12.70mm) | 1.406 Dia (35.70mm) | 2.232 (56.70mm) | - | Chassis Mount |
|
|
B41458B9338M000CAP ALUM 3300UF 20% 100V SCREW |
2,027 | 0.00 |
立即询盘 |
Datasheet |
Bulk | B41458 | Obsolete | 3300 µF | ±20% | 100 V | 55mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.8 A @ 100 Hz | - | 48 mOhms | 0.500 (12.70mm) | 1.406 Dia (35.70mm) | 3.217 (81.70mm) | - | Chassis Mount |
|
|
B41458B9478M000CAP ALUM 4700UF 20% 100V SCREW |
2,608 | 0.00 |
立即询盘 |
Datasheet |
Bulk | B41458 | Obsolete | 4700 µF | ±20% | 100 V | 40mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.7 A @ 100 Hz | - | 35 mOhms | 0.500 (12.70mm) | 1.406 Dia (35.70mm) | 3.217 (81.70mm) | - | Chassis Mount |
|
|
B41458B9688M000CAP ALUM 6800UF 20% 100V SCREW |
2,958 | 0.00 |
立即询盘 |
Datasheet |
Bulk | B41458 | Obsolete | 6800 µF | ±20% | 100 V | 29mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8.7 A @ 100 Hz | - | 25 mOhms | 0.500 (12.70mm) | 1.406 Dia (35.70mm) | 4.201 (106.70mm) | - | Chassis Mount |
|
B41550A5688Q000CAP ALUM 6800UF 25V SCREW |
2,965 | 0.00 |
立即询盘 |
Datasheet |
Bulk | B41550 | Obsolete | 6800 µF | -10%, +30% | 25 V | 32mOhm @ 100Hz | 10000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 6.4 A @ 100 Hz | - | 27 mOhms | 0.500 (12.70mm) | 1.406 Dia (35.70mm) | 2.232 (56.70mm) | - | Chassis Mount |
|
|
B41550A7688Q000CAP ALUM 6800UF 40V SCREW |
3,953 | 0.00 |
立即询盘 |
Datasheet |
Bulk | B41550 | Obsolete | 6800 µF | -10%, +30% | 40 V | 28mOhm @ 100Hz | 10000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 8.4 A @ 100 Hz | - | 17 mOhms | 0.500 (12.70mm) | 1.406 Dia (35.70mm) | 3.217 (81.70mm) | - | Chassis Mount |
|
|
B41550A9158Q000CAP ALUM 1500UF 100V SCREW |
2,870 | 0.00 |
立即询盘 |
Datasheet |
Bulk | B41550 | Obsolete | 1500 µF | -10%, +30% | 100 V | 83mOhm @ 100Hz | 10000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 8.8 A @ 100 Hz | - | 34 mOhms | 0.500 (12.70mm) | 1.406 Dia (35.70mm) | 2.232 (56.70mm) | - | Chassis Mount |
|
|
B41550E4109Q000CAP ALUM 10000UF 16V SCREW |
2,489 | 0.00 |
立即询盘 |
Datasheet |
Bulk | B41550 | Obsolete | 10000 µF | -10%, +30% | 16 V | 38mOhm @ 100Hz | 10000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 6.2 A @ 100 Hz | - | 26 mOhms | 0.500 (12.70mm) | 1.406 Dia (35.70mm) | 2.232 (56.70mm) | - | Chassis Mount |
|
|
B41550E4159Q000CAP ALUM 15000UF 16V SCREW |
3,836 | 0.00 |
立即询盘 |
Datasheet |
Bulk | B41550 | Obsolete | 15000 µF | -10%, +30% | 16 V | 26mOhm @ 100Hz | 10000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 8.1 A @ 100 Hz | - | 21 mOhms | 0.500 (12.70mm) | 1.406 Dia (35.70mm) | 3.217 (81.70mm) | - | Chassis Mount |
|
|
B41550E4229Q000CAP ALUM 22000UF 16V SCREW |
3,711 | 0.00 |
立即询盘 |
Datasheet |
Bulk | B41550 | Obsolete | 22000 µF | -10%, +30% | 16 V | 21mOhm @ 100Hz | 10000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 10 A @ 100 Hz | - | 18 mOhms | 0.500 (12.70mm) | 1.406 Dia (35.70mm) | 3.217 (81.70mm) | - | Chassis Mount |
|
|
B41550E4339Q000CAP ALUM 33000UF 16V SCREW |
3,048 | 0.00 |
立即询盘 |
Datasheet |
Bulk | B41550 | Obsolete | 33000 µF | -10%, +30% | 16 V | 17mOhm @ 100Hz | 10000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 12 A @ 100 Hz | - | 13 mOhms | 0.500 (12.70mm) | 1.406 Dia (35.70mm) | 4.201 (106.70mm) | - | Chassis Mount |
|
|
B41550E4479Q000CAP ALUM 47000UF 16V SCREW |
2,107 | 0.00 |
立即询盘 |
Datasheet |
Bulk | B41550 | Obsolete | 47000 µF | -10%, +30% | 16 V | 13mOhm @ 100Hz | 10000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 16 A @ 100 Hz | - | 13 mOhms | 0.874 (22.20mm) | 2.032 Dia (51.60mm) | 3.217 (81.70mm) | - | Chassis Mount |
|
|
B41550E5109Q000CAP ALUM 10000UF 25V SCREW |
3,389 | 0.00 |
立即询盘 |
Datasheet |
Bulk | B41550 | Obsolete | 10000 µF | -10%, +30% | 25 V | 28mOhm @ 100Hz | 10000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 7.5 A @ 100 Hz | - | 21 mOhms | 0.500 (12.70mm) | 1.406 Dia (35.70mm) | 3.217 (81.70mm) | - | Chassis Mount |
|
|
B41550E5159Q000CAP ALUM 15000UF 25V SCREW |
2,627 | 0.00 |
立即询盘 |
Datasheet |
Bulk | B41550 | Obsolete | 15000 µF | -10%, +30% | 25 V | 24mOhm @ 100Hz | 10000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 9.4 A @ 100 Hz | - | 17 mOhms | 0.500 (12.70mm) | 1.406 Dia (35.70mm) | 3.217 (81.70mm) | - | Chassis Mount |
|
|
B41550E5229Q000CAP ALUM 22000UF 25V SCREW |
2,965 | 0.00 |
立即询盘 |
Datasheet |
Bulk | B41550 | Obsolete | 22000 µF | -10%, +30% | 25 V | 20mOhm @ 100Hz | 10000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 11 A @ 100 Hz | - | 15 mOhms | 0.500 (12.70mm) | 1.406 Dia (35.70mm) | 4.201 (106.70mm) | - | Chassis Mount |
