| 图片 | 型号 | 库存 | 价格 | 数量 | 规格书 | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

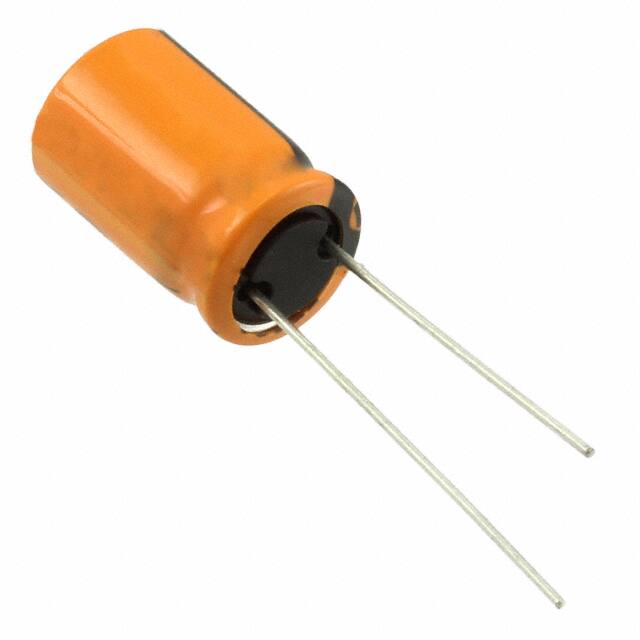

B41868W5107MCAP ALUM 100UF 20% 25V RADIAL |
3,634 | 0.00 |
立即询盘 |
Datasheet |
Bulk | B41868 | Obsolete | 100 µF | ±20% | 25 V | 387mOhm @ 10kHz | 1000 Hrs @ 150°C | - | Polar | - | Automotive | 300 mA @ 100 Hz | - | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.531 (13.50mm) | - | Through Hole |
|
B41868W5227MCAP ALUM 220UF 20% 25V RADIAL |
2,854 | 0.00 |
立即询盘 |
Datasheet |
Bulk | B41868 | Obsolete | 220 µF | ±20% | 25 V | 228mOhm @ 10kHz | 1000 Hrs @ 150°C | - | Polar | - | Automotive | - | 426 mA @ 100 kHz | 208 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.669 (17.00mm) | - | Through Hole |
|
|
B41868W7107MCAP ALUM 100UF 20% 35V RADIAL |
3,368 | 0.00 |
立即询盘 |
Datasheet |
Bulk | B41868 | Obsolete | 100 µF | ±20% | 35 V | 228mOhm @ 10kHz | 1000 Hrs @ 150°C | - | Polar | - | Automotive | - | 426 mA @ 100 kHz | 208 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.669 (17.00mm) | - | Through Hole |
|
|
B41868W7476MCAP ALUM 47UF 20% 35V RADIAL |
2,280 | 0.00 |
立即询盘 |
Datasheet |
Bulk | B41868 | Obsolete | 47 µF | ±20% | 35 V | 465mOhm @ 10kHz | 1000 Hrs @ 150°C | - | Polar | - | Automotive | 300 mA @ 100 Hz | - | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.531 (13.50mm) | - | Through Hole |
|
|
B41868W8476MCAP ALUM 47UF 20% 63V RADIAL |
3,293 | 0.00 |
立即询盘 |
Datasheet |
Bulk | B41868 | Obsolete | 47 µF | ±20% | 63 V | 2.82Ohm @ 10kHz | 1000 Hrs @ 150°C | - | Polar | - | Automotive | - | 220 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.669 (17.00mm) | - | Through Hole |
|

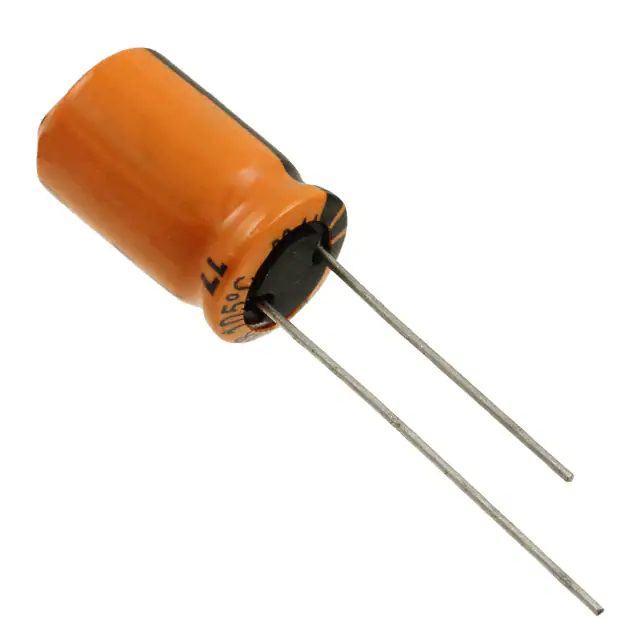

B41888C3108MCAP ALUM 1000UF 20% 10V RADIAL |
14,995 | 0.00 |
立即询盘 |
Datasheet |
Bulk | B41888 | Active | 1000 µF | ±20% | 10 V | 64mOhm @ 10kHz | 7000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 1.24 A @ 100 kHz | 59 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.669 (17.00mm) | - | Through Hole |
|
|
B41888C3567MCAP ALUM 560UF 20% 10V RADIAL |
11,590 | 0.00 |
立即询盘 |
Datasheet |
Bulk | B41888 | Active | 560 µF | ±20% | 10 V | 116mOhm @ 10kHz | 7000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 900 mA @ 100 kHz | 101 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.531 (13.50mm) | - | Through Hole |
|
|
B41888C3827MCAP ALUM 820UF 20% 10V RADIAL |
12,964 | 0.00 |
立即询盘 |
Datasheet |
Bulk | B41888 | Active | 820 µF | ±20% | 10 V | 64mOhm @ 10kHz | 7000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 1.24 A @ 100 kHz | 59 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.669 (17.00mm) | - | Through Hole |
|
|
B41888C4337MCAP ALUM 330UF 20% 16V RADIAL |
10,053 | 0.00 |
立即询盘 |
Datasheet |
Bulk | B41888 | Active | 330 µF | ±20% | 16 V | 204mOhm @ 10kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 690 mA @ 100 kHz | 183 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
|
B41888C4397MCAP ALUM 390UF 20% 16V RADIAL |
11,372 | 0.00 |
立即询盘 |
Datasheet |
Bulk | B41888 | Active | 390 µF | ±20% | 16 V | 204mOhm @ 10kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 690 mA @ 100 kHz | 183 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
|
B41888C4567MCAP ALUM 560UF 20% 16V RADIAL |
11,702 | 0.00 |
立即询盘 |
Datasheet |
Bulk | B41888 | Active | 560 µF | ±20% | 16 V | 64mOhm @ 10kHz | 7000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 1.24 A @ 100 kHz | 59 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.669 (17.00mm) | - | Through Hole |
|
|
B41888C5227M8CAP ALUM 220UF 20% 25V RADIAL |
14,396 | 0.00 |
立即询盘 |
Datasheet |
Bulk | B41888 | Active | 220 µF | ±20% | 25 V | 204mOhm @ 10kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 690 mA @ 100 kHz | 183 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
|
B41888C5277MCAP ALUM 270UF 20% 25V RADIAL |
11,873 | 0.00 |
立即询盘 |
Datasheet |
Bulk | B41888 | Active | 270 µF | ±20% | 25 V | 204mOhm @ 10kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 690 mA @ 100 kHz | 183 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
|
B41888C5337MCAP ALUM 330UF 20% 25V RADIAL |
11,176 | 0.00 |
立即询盘 |
Datasheet |
Bulk | B41888 | Active | 330 µF | ±20% | 25 V | 116mOhm @ 10kHz | 7000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 900 mA @ 100 kHz | 101 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.531 (13.50mm) | - | Through Hole |
|
|
B41888C5397MCAP ALUM 390UF 20% 25V RADIAL |
10,264 | 0.00 |
立即询盘 |
Datasheet |
Bulk | B41888 | Active | 390 µF | ±20% | 25 V | 116mOhm @ 10kHz | 7000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 900 mA @ 100 kHz | 101 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.531 (13.50mm) | - | Through Hole |
|
|
B41888C5567MCAP ALUM 560UF 20% 25V RADIAL |
12,791 | 0.00 |
立即询盘 |
Datasheet |
Bulk | B41888 | Active | 560 µF | ±20% | 25 V | 64mOhm @ 10kHz | 7000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 1.24 A @ 100 kHz | 59 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.669 (17.00mm) | - | Through Hole |
|
|
B41888C6127MCAP ALUM 120UF 20% 50V RADIAL |
13,163 | 0.00 |
立即询盘 |
Datasheet |
Bulk | B41888 | Active | 120 µF | ±20% | 50 V | 615mOhm @ 10kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 500 mA @ 100 kHz | 540 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
|
B41888C6157MCAP ALUM 150UF 20% 50V RADIAL |
12,441 | 0.00 |
立即询盘 |
Datasheet |
Bulk | B41888 | Active | 150 µF | ±20% | 50 V | 228mOhm @ 10kHz | - | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 600 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.531 (13.50mm) | - | Through Hole |
|
|
B41888C6227MCAP ALUM 220UF 20% 50V RADIAL |
12,719 | 0.00 |
立即询盘 |
Datasheet |
Bulk | B41888 | Active | 220 µF | ±20% | 50 V | 129mOhm @ 10kHz | 7000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 1.05 A @ 100 kHz | 115 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.669 (17.00mm) | - | Through Hole |
|
|
B41888C7157MCAP ALUM 150UF 20% 35V RADIAL |
11,270 | 0.00 |
立即询盘 |
Datasheet |
Bulk | B41888 | Active | 150 µF | ±20% | 35 V | 204mOhm @ 10kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 690 mA @ 100 kHz | 183 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | - | Through Hole |
