| 图片 | 型号 | 库存 | 价格 | 数量 | 规格书 | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

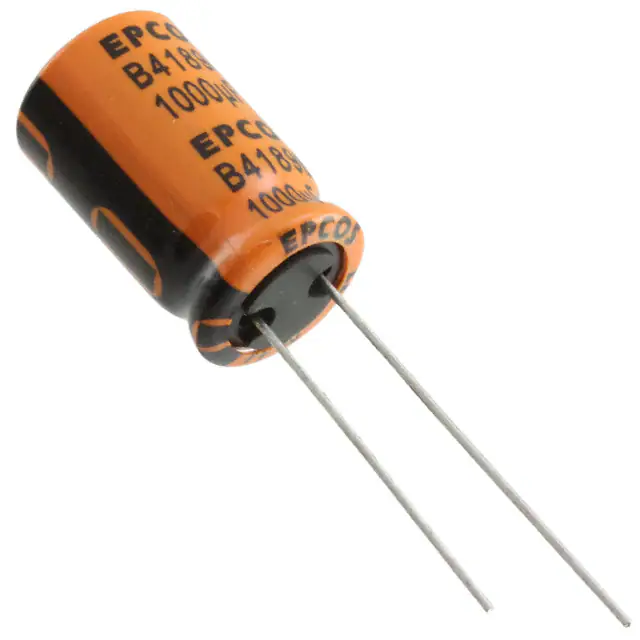

B41896C4108M000CAP ALUM 1000UF 20% 16V RADIAL |
9,070 | 1.38 |
立即询盘 |
Datasheet |
Bulk | B41896 | Active | 1000 µF | ±20% | 16 V | 215mOhm @ 120Hz | 7000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | - | 1.82 A @ 100 kHz | 55 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | - | Through Hole |
|
B41456B8229M000CAP ALUM 22000UF 20% 63V SCREW |
4,657 | 32.50 |
立即询盘 |
Datasheet |
Bulk | B41456 | Active | 22000 µF | ±20% | 63 V | 16mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 11 A @ 100 Hz | - | 16 mOhms | 0.874 (22.20mm) | 2.032 Dia (51.60mm) | 3.177 (80.70mm) | - | Chassis Mount |
|
B43707A9228M000CAP ALUM 2200UF 20% 400V SCREW |
1,220 | 32.79 |
立即询盘 |
Datasheet |
Bulk | B43707 | Active | 2200 µF | ±20% | 400 V | 55mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.65 A @ 100 Hz | - | 85 mOhms | 0.874 (22.20mm) | 2.031 Dia (51.60mm) | 3.217 (81.70mm) | - | Chassis Mount |
|

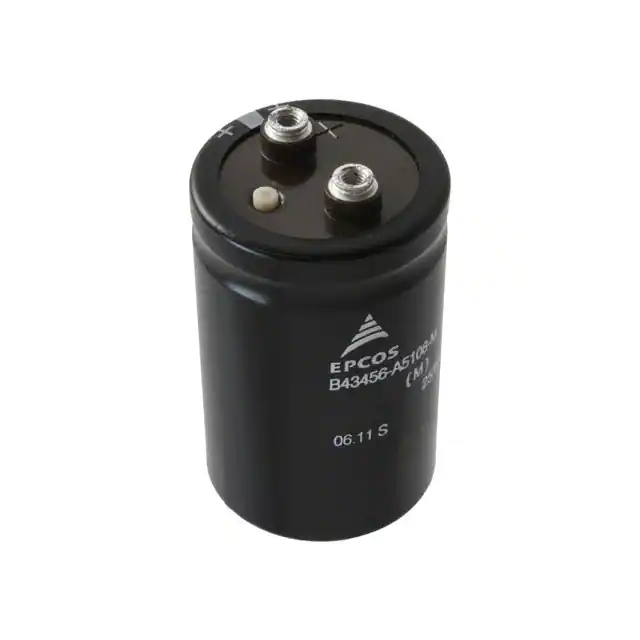

B43456A5108M000CAP ALUM 1000UF 20% 450V SCREW |
1,067 | 42.68 |
立即询盘 |
Datasheet |
Bulk | B43456 | Not For New Designs | 1000 µF | ±20% | 450 V | 120mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.8 A @ 100 Hz | - | 150 mOhms | 0.874 (22.20mm) | 2.032 Dia (51.60mm) | 3.177 (80.70mm) | - | Chassis Mount |
|
B41252A7338M000CAP ALUM 3300UF 20% 35V SNAP |
8,476 | 2.07 |
立即询盘 |
Datasheet |
Bulk | B41252 | Active | 3300 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.26 A @ 120 Hz | - | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
|
B41252A0108M000CAP ALUM 1000UF 20% 80V SNAP |
8,075 | 2.20 |
立即询盘 |
Datasheet |
Bulk | B41252 | Active | 1000 µF | ±20% | 80 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.260 (32.00mm) | - | Through Hole |
|

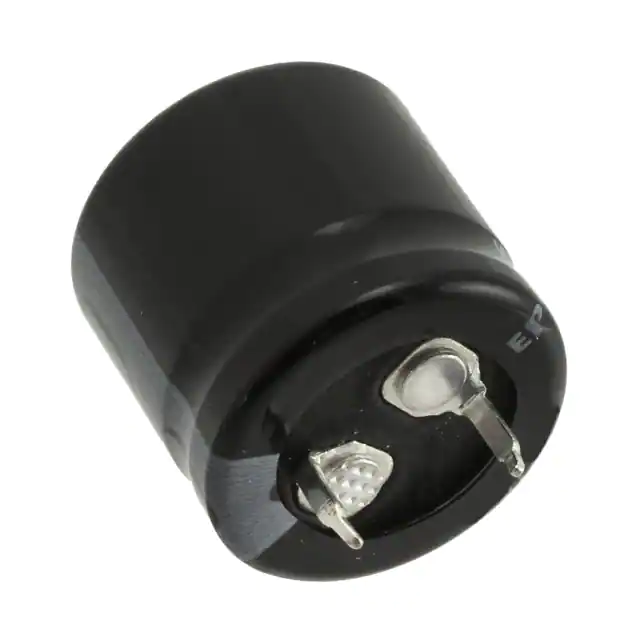

B43254E2127M000CAP ALUM 120UF 20% 250V SNAP |
7,753 | 2.51 |
立即询盘 |
Datasheet |
Bulk | B43254 | Not For New Designs | 120 µF | ±20% | 250 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 560 mA @ 120 Hz | 868 mA @ 20 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
B41456B7100M000CAP ALUM 100000UF 20% 40V SCREW |
4,497 | 68.01 |
立即询盘 |
Datasheet |
Bulk | B41456 | Active | 100000 µF | ±20% | 40 V | 8.2mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 19 A @ 100 Hz | - | 7 mOhms | 1.122 (28.50mm) | 2.532 Dia (64.30mm) | 4.161 (105.70mm) | - | Chassis Mount |
|
B43727A5478M600CAP ALUM 4700UF 20% 450V SCREW |
4,546 | 78.41 |
立即询盘 |
Datasheet |
Bulk | B43727 | Active | 4700 µF | ±20% | 450 V | 24mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 13.8 A @ 100 Hz | - | 40 mOhms | 1.122 (28.50mm) | 2.531 Dia (64.30mm) | 4.693 (119.20mm) | - | Chassis, Stud Mount |
|
B41858C9567M000CAP ALUM 560UF 20% 100V RADIAL |
6,672 | 2.77 |
立即询盘 |
Datasheet |
Bulk | B41858 | Active | 560 µF | ±20% | 100 V | 68mOhm @ 10kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | Automotive | - | 2.061 A @ 100 kHz | 63 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
B41252B7568M000CAP ALUM 5600UF 20% 35V SNAP |
5,895 | 2.74 |
立即询盘 |
Datasheet |
Bulk | B41252 | Active | 5600 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.37 A @ 120 Hz | - | - | 0.394 (10.00mm) | 1.000 Dia (25.40mm) | 1.260 (32.00mm) | - | Through Hole |
|
B43310A9398M000CAP ALUM 3900UF 20% 400V SCREW |
1,375 | 87.52 |
立即询盘 |
Datasheet |
Bulk | B43310 | Not For New Designs | 3900 µF | ±20% | 400 V | 49mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 9.7 A @ 120 Hz | - | - | 1.122 (28.50mm) | 2.532 Dia (64.30mm) | 5.118 (130.00mm) | - | Chassis Mount |
|
B43310A9478M000CAP ALUM 4700UF 20% 400V SCREW |
864 | 103.75 |
立即询盘 |
Datasheet |
Bulk | B43310 | Not For New Designs | 4700 µF | ±20% | 400 V | 41mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 10.7 A @ 120 Hz | - | - | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 4.528 (115.00mm) | - | Chassis Mount |
|
B43254B2187M000CAP ALUM 180UF 20% 200V SNAP |
9,000 | 3.29 |
立即询盘 |
Datasheet |
Bulk | B43254 | Active | 180 µF | ±20% | 200 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 760 mA @ 120 Hz | 1.178 A @ 20 kHz | - | 0.394 (10.00mm) | 1.000 Dia (25.40mm) | 0.866 (22.00mm) | - | Through Hole |
|
B41231B8338M000CAP ALUM 3300UF 20% 63V SNAP |
8,103 | 3.25 |
立即询盘 |
Datasheet |
Bulk | B41231 | Active | 3300 µF | ±20% | 63 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.26 A @ 120 Hz | - | - | 0.394 (10.00mm) | 1.000 Dia (25.40mm) | 1.260 (32.00mm) | - | Through Hole |
|
B43254A9686M000CAP ALUM 68UF 20% 400V SNAP |
9,047 | 3.52 |
立即询盘 |
Datasheet |
Bulk | B43254 | Not For New Designs | 68 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 440 mA @ 120 Hz | - | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
|
B41231B5159M000CAP ALUM 15000UF 20% 25V SNAP |
9,991 | 3.43 |
立即询盘 |
Datasheet |
Bulk | B41231 | Active | 15000 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.94 A @ 120 Hz | - | - | 0.394 (10.00mm) | 1.000 Dia (25.40mm) | 1.654 (42.00mm) | - | Through Hole |
|
|

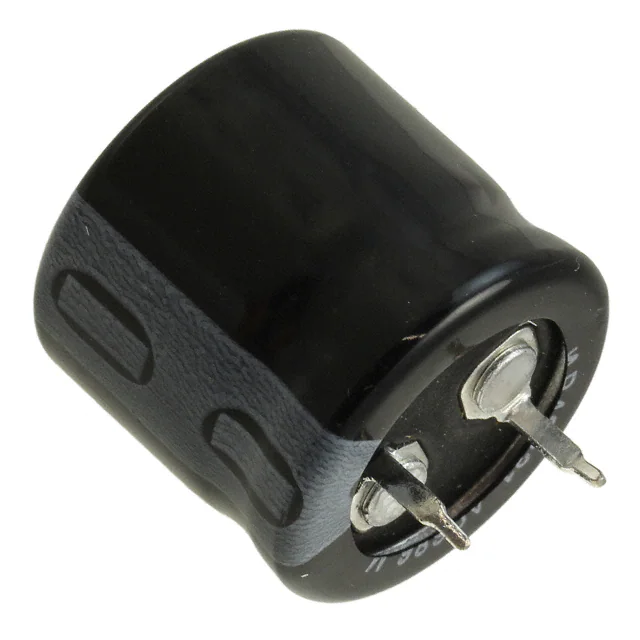

B43231B4107M000CAP ALUM 100UF 20% 350V SNAP |
9,666 | 3.48 |
立即询盘 |
Datasheet |
Bulk | B43231 | Active | 100 µF | ±20% | 350 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 750 mA @ 120 Hz | 1.162 A @ 20 kHz | - | 0.394 (10.00mm) | 1.000 Dia (25.40mm) | 0.866 (22.00mm) | - | Through Hole |
|

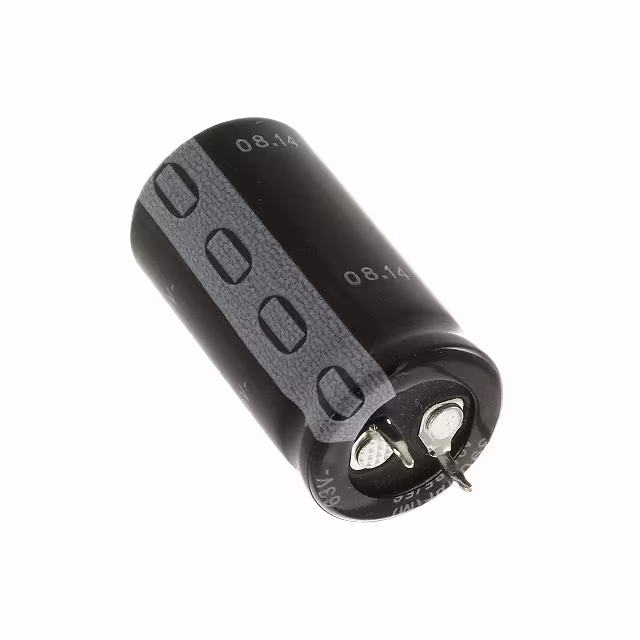

B41231A8398M000CAP ALUM 3900UF 20% 63V SNAP |
8,725 | 3.54 |
立即询盘 |
Datasheet |
Bulk | B41231 | Active | 3900 µF | ±20% | 63 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.6 A @ 120 Hz | - | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
|
B43254F2157M000CAP ALUM 150UF 20% 250V SNAP |
9,065 | 3.85 |
立即询盘 |
Datasheet |
Bulk | B43254 | Active | 150 µF | ±20% | 250 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 690 mA @ 120 Hz | 1.07 A @ 20 kHz | - | 0.394 (10.00mm) | 1.000 Dia (25.40mm) | 0.866 (22.00mm) | - | Through Hole |
