| 图片 | 型号 | 库存 | 价格 | 数量 | 规格书 | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

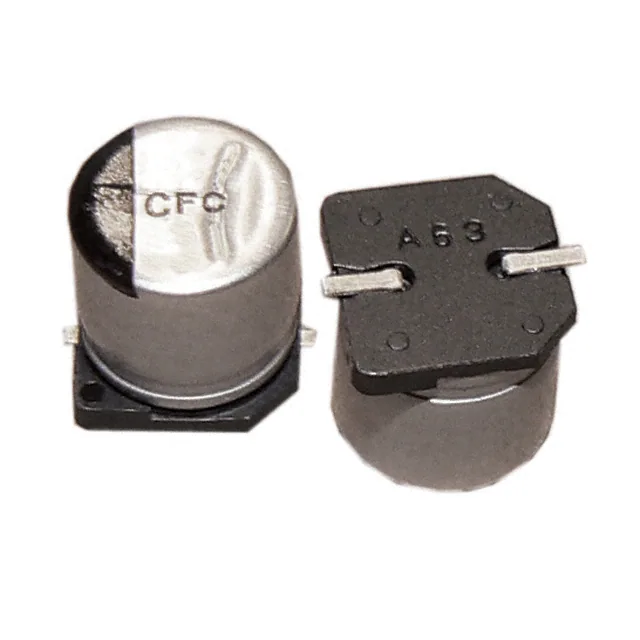

AFC106M16B12T-FCAP ALUM 10UF 20% 16V SMD |
12,082 | 0.81 |
立即询盘 |
Datasheet |
Cut Tape (CT) | AFC | Not For New Designs | 10 µF | ±20% | 16 V | 26.5Ohm @ 120Hz | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 45 mA @ 120 Hz | 60 mA @ 100 kHz | 3 Ohms | - | 0.157 Dia (4.00mm) | 0.213 (5.40mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|
AVE337M10F24T-FCAP ALUM 330UF 20% 10V SMD |
13,265 | 0.27 |
立即询盘 |
Datasheet |
Bulk | AVE | Not For New Designs | 330 µF | ±20% | 10 V | 1.21Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 252 mA @ 120 Hz | 315 mA @ 10 kHz | - | - | 0.315 Dia (8.00mm) | 0.394 (10.00mm) | 0.331 L x 0.331 W (8.40mm x 8.40mm) | Surface Mount |
|
SEK100M250STCAP ALUM 10UF 20% 250V RADIAL |
11,795 | 0.00 |
立即询盘 |
Datasheet |
Bulk | SEK | Active | 10 µF | ±20% | 250 V | 19.9Ohm | 2000 Hrs @ 105°C | -40°C ~ 105°C | - | - | General Purpose | - | - | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.630 (16.00mm) | - | Through Hole |
|
AFK107M25X16T-FCAP ALUM 100UF 20% 25V SMD |
7,943 | 1.15 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | AFK | Active | 100 µF | ±20% | 25 V | 340mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 210 mA @ 120 Hz | 280 mA @ 100 kHz | 340 mOhms | - | 0.248 Dia (6.30mm) | 0.323 (8.20mm) | 0.260 L x 0.307 W (6.60mm x 7.80mm) | Surface Mount |
|
AVS107M50F24T-FCAP ALUM 100UF 20% 50V SMD |
9,990 | 1.22 |
立即询盘 |
Datasheet |
Cut Tape (CT) | AVS | Not For New Designs | 100 µF | ±20% | 50 V | 2Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 200 mA @ 120 Hz | 340 mA @ 10 kHz | - | - | 0.315 Dia (8.00mm) | 0.402 (10.20mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
AVS107M35G24T-FCAP ALUM 100UF 20% 35V SMD |
8,068 | 1.33 |
立即询盘 |
Datasheet |
Cut Tape (CT),Bulk | AVS | Not For New Designs | 100 µF | ±20% | 35 V | 2.3Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 210 mA @ 120 Hz | 357 mA @ 10 kHz | - | - | 0.394 Dia (10.00mm) | 0.402 (10.20mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
AVS107M63G24T-FCAP ALUM 100UF 20% 63V SMD |
6,874 | 1.45 |
立即询盘 |
Datasheet |
Cut Tape (CT) | AVS | Not For New Designs | 100 µF | ±20% | 63 V | 3Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 60 mA @ 120 Hz | 102 mA @ 10 kHz | - | - | 0.394 Dia (10.00mm) | 0.402 (10.20mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|

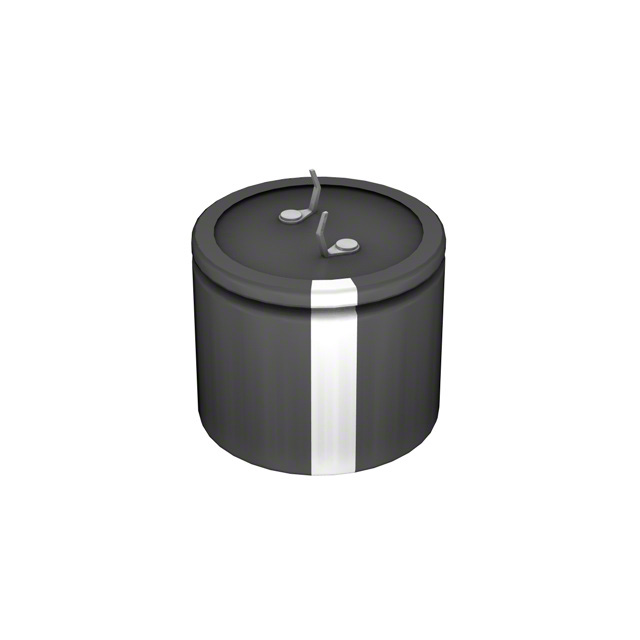

LP122M063C1P3CAP ALUM 1200UF 20% 63V SNAP |
9,088 | 3.48 |
立即询盘 |
Datasheet |
Bulk | LP | Active | 1200 µF | ±20% | 63 V | 210mOhm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 990 mA @ 120 Hz | 1.188 A @ 100 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 0.984 (25.00mm) | - | Through Hole |
|
|
AFC227M35G24T-FCAP ALUM 220UF 20% 35V SMD |
12,578 | 0.74 |
立即询盘 |
Datasheet |
Bulk | AFC | Not For New Designs | 220 µF | ±20% | 35 V | 900mOhm @ 120Hz | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 502.5 mA @ 120 Hz | 670 mA @ 100 kHz | 150 mOhms | - | 0.394 Dia (10.00mm) | 0.402 (10.20mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
SK332M025STCAP ALUM 3300UF 20% 25V RADIAL |
13,932 | 0.00 |
立即询盘 |
Datasheet |
Bulk | SK | Active | 3300 µF | ±20% | 25 V | 100mOhm | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | - | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.339 (34.00mm) | - | Through Hole |
|
|
SK102M063STCAP ALUM 1000UF 20% 63V RADIAL |
8,325 | 4.38 |
立即询盘 |
Datasheet |
Bulk | SK | Active | 1000 µF | ±20% | 63 V | 120mOhm | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | - | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.339 (34.00mm) | - | Through Hole |
|
SEK222M050STCAP ALUM 2200UF 20% 50V RADIAL |
5,607 | 4.51 |
立即询盘 |
Datasheet |
Bulk | SEK | Active | 2200 µF | ±20% | 50 V | 80mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | - | General Purpose | - | - | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.417 (36.00mm) | - | Through Hole |
|
LP222M050E1P3CAP ALUM 2200UF 20% 50V SNAP |
9,225 | 4.57 |
立即询盘 |
Datasheet |
Bulk | LP | Active | 2200 µF | ±20% | 50 V | 150mOhm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.429 A @ 120 Hz | 1.5719 A @ 100 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 0.984 (25.00mm) | - | Through Hole |
|
AFK337M35G24VT-FCAP ALUM 330UF 20% 35V SMD |
8,981 | 3.79 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | AFK_V | Active | 330 µF | ±20% | 35 V | 80mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 637.5 mA @ 120 Hz | - | 80 mOhms | - | 0.394 Dia (10.00mm) | 0.425 (10.80mm) | 0.406 L x 0.473 W (10.30mm x 12.00mm) | Surface Mount |
|
AFK157M35F24VT-FCAP ALUM 150UF 20% 35V SMD |
5,174 | 4.46 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | AFK_V | Active | 150 µF | ±20% | 35 V | 160 mohm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 450 mA @ 120 Hz | - | 160 mOhms | - | 0.315 Dia (8.00mm) | 0.394 (10.00mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
SEK472M035STCAP ALUM 4700UF 20% 35V RADIAL |
9,585 | 5.55 |
立即询盘 |
Datasheet |
Bulk,Bulk | SEK | Active | 4700 µF | ±20% | 35 V | 60mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | - | General Purpose | - | - | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
|
AFK227M63H32VT-FCAP ALUM 220UF 20% 63V SMD |
5,186 | 4.42 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | AFK_V | Active | 220 µF | ±20% | 63 V | 160 mohm @ 100kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 600 mA @ 120 Hz | - | 160 mOhms | - | 0.492 Dia (12.50mm) | 0.563 (14.30mm) | 0.531 L x 0.590 W (13.50mm x 15.00mm) | Surface Mount |
|
AFK337M80P44T-FCAP ALUM 330UF 20% 80V SMD |
6,772 | 4.73 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | AFK | Active | 330 µF | ±20% | 80 V | 170mOhm @ 100kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 594.8 mA @ 120 Hz | 793 mA @ 100 kHz | 170 mOhms | - | 0.630 Dia (16.00mm) | 0.669 (17.00mm) | 0.669 L x 0.748 W (17.00mm x 19.00mm) | Surface Mount |
|
|
AFK397M50H32VT-FCAP ALUM 390UF 20% 50V SMD |
9,591 | 4.54 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | AFK_V | Active | 390 µF | ±20% | 50 V | 120mOhm @ 100kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 675 mA @ 120 Hz | - | 120 mOhms | - | 0.492 Dia (12.50mm) | 0.563 (14.30mm) | 0.531 L x 0.590 W (13.50mm x 15.00mm) | Surface Mount |
|
|
AFK108M50P44VT-FCAP ALUM 1000UF 20% 50V SMD |
9,600 | 5.69 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | AFK_V | Active | 1000 µF | ±20% | 50 V | 73mOhm @ 100kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 1.208 A @ 120 Hz | - | 73 mOhms | - | 0.630 Dia (16.00mm) | 0.681 (17.30mm) | 0.669 L x 0.669 W (17.00mm x 17.00mm) | Surface Mount |
