| 图片 | 型号 | 库存 | 价格 | 数量 | 规格书 | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EDT108M010S9PAACAP ALUM 1000UF 20% 10V SMD |
7,495 | 1.01 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | EDT | Active | 1000 µF | ±20% | 10 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 180 mA @ 120 Hz | 257.143 mA @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
EEV477M025S9PAACAP ALUM 470UF 20% 25V SMD |
5,353 | 1.03 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | EEV | Active | 470 µF | ±20% | 25 V | 80mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 595 mA @ 120 Hz | 850 mA @ 100 kHz | 80 mOhms | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
EDT107M050S9PAACAP ALUM 100UF 20% 50V SMD |
5,944 | 1.07 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | EDT | Active | 100 µF | ±20% | 50 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 180 mA @ 120 Hz | 257.143 mA @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
EEV227M050A9PAACAP ALUM 220UF 20% 50V SMD |
6,603 | 1.09 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | EEV | Active | 220 µF | ±20% | 50 V | 300mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 350 mA @ 120 Hz | 500 mA @ 100 kHz | 300 mOhms | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
EEV337M016A9MAACAP ALUM 330UF 20% 16V SMD |
5,680 | 1.09 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | EEV | Active | 330 µF | ±20% | 16 V | 160 mohm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 420 mA @ 120 Hz | 600 mA @ 100 kHz | 160 mOhms | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEV337M025A9MAACAP ALUM 330UF 20% 25V SMD |
8,592 | 1.09 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | EEV | Active | 330 µF | ±20% | 25 V | 160 mohm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 420 mA @ 120 Hz | 600 mA @ 100 kHz | 160 mOhms | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
EXV107M050A9PAACAP ALUM 100UF 20% 50V SMD |
5,229 | 1.10 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | EXV | Active | 100 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 469 mA @ 120 Hz | 670 mA @ 100 kHz | 340 mOhms | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | - | Surface Mount |
|
ESH225M450AH1AACAP ALUM 2.2UF 20% 450V RADIAL |
13,780 | 0.48 |
立即询盘 |
Datasheet |
Bulk | ESH | Active | 2.2 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 37 mA @ 120 Hz | 59.2 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.531 (13.50mm) | - | Through Hole |
|
ESK107M050AH1AACAP ALUM 100UF 20% 50V RADIAL |
12,157 | 0.49 |
立即询盘 |
Datasheet |
Box | ESK | Active | 100 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.531 (13.50mm) | - | Through Hole |
|
|

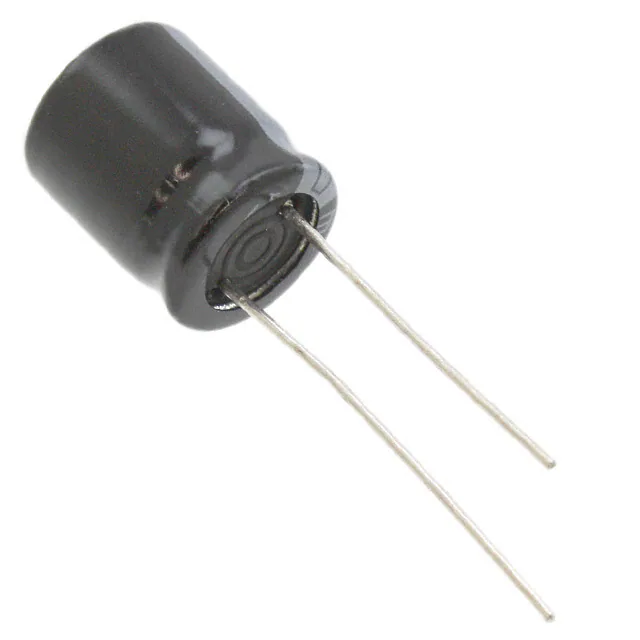

ESH477M025AH1AACAP ALUM 470UF 20% 25V RADIAL |
10,542 | 0.51 |
立即询盘 |
Datasheet |
Bulk | ESH | Active | 470 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 405 mA @ 120 Hz | 607.5 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.531 (13.50mm) | - | Through Hole |
|
ESK108M016AH2AACAP ALUM 1000UF 20% 16V RADIAL |
11,335 | 0.52 |
立即询盘 |
Datasheet |
Bulk | ESK | Active | 1000 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 630 mA @ 120 Hz | 724.5 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.669 (17.00mm) | - | Through Hole |
|

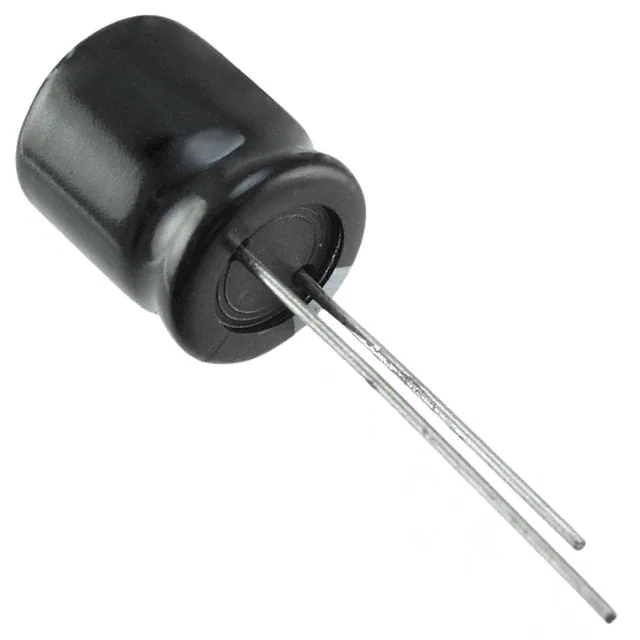

ESW108M6R3AH1AACAP ALUM 1000UF 20% 6.3V RADIAL |
10,067 | 0.55 |
立即询盘 |
Datasheet |
Bulk | ESW | Active | 1000 µF | ±20% | 6.3 V | 90mOhm @ 100kHz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 453 mA @ 120 Hz | 755 mA @ 100 kHz | 90 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.531 (13.50mm) | - | Through Hole |
|
|
ESK477M035AH2AACAP ALUM 470UF 20% 35V RADIAL |
12,925 | 0.58 |
立即询盘 |
Datasheet |
Box | ESK | Active | 470 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 430 mA @ 120 Hz | 516 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.669 (17.00mm) | - | Through Hole |
|
ESY277M050AH4AACAP ALUM 270UF 20% 50V RADIAL |
13,734 | 0.70 |
立即询盘 |
Datasheet |
Box | ESY | Active | 270 µF | ±20% | 50 V | - | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.106 A @ 120 Hz | 1.58 A @ 100 kHz | 30 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
ESY227M050AH2AACAP ALUM 220UF 20% 50V RADIAL |
14,484 | 0.76 |
立即询盘 |
Datasheet |
Bulk | ESY | Active | 220 µF | ±20% | 50 V | 42mOhm @ 100kHz | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | 42 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.669 (17.00mm) | - | Through Hole |
|

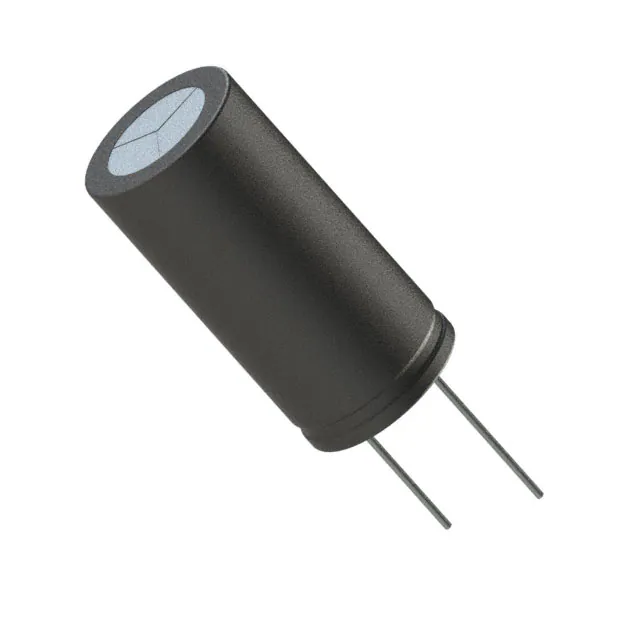

ESH107M450AN2AACAP ALUM 100UF 20% 450V RADIAL |
9,698 | 3.64 |
立即询盘 |
Datasheet |
Bulk | ESH | Active | 100 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 495 mA @ 120 Hz | 792 mA @ 10 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.496 (38.00mm) | - | Through Hole |
|
ESY477M035AH4AACAP ALUM 470UF 20% 35V RADIAL |
10,853 | 0.81 |
立即询盘 |
Datasheet |
Bulk | ESY | Active | 470 µF | ±20% | 35 V | 26mOhm @ 100kHz | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.365 A @ 120 Hz | 1.82 A @ 100 kHz | 26 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.827 (21.00mm) | - | Through Hole |
|
ESC228M010AL3AACAP ALUM 2200UF 20% 10V RADIAL |
13,069 | 0.89 |
立即询盘 |
Datasheet |
Box | ESC | Active | 2200 µF | ±20% | 10 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.36 A @ 120 Hz | 1.6 A @ 100 kHz | 38 mOhms | 0.197 (5.00mm) | 0.512 Dia (13.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
ESW227M063AH4AACAP ALUM 220UF 20% 63V RADIAL |
12,890 | 0.90 |
立即询盘 |
Datasheet |
Bulk | ESW | Active | 220 µF | ±20% | 63 V | 147mOhm @ 100kHz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 442.5 mA @ 120 Hz | 885 mA @ 100 kHz | 147 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.827 (21.00mm) | - | Through Hole |
|
|
ESK107M160AL4AACAP ALUM 100UF 20% 160V RADIAL |
13,209 | 0.94 |
立即询盘 |
Datasheet |
Box | ESK | Active | 100 µF | ±20% | 160 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 250 mA @ 120 Hz | 350 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.512 Dia (13.00mm) | 1.063 (27.00mm) | - | Through Hole |
