| 图片 | 型号 | 库存 | 价格 | 数量 | 规格书 | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALS80A133NS350CAP ALUM 13000UF 20% 350V SCREW |
4,489 | 73.92 |
立即询盘 |
Datasheet |
Bulk | ALS80 | Active | 13000 µF | ±20% | 350 V | 18mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 18.7 A @ 100 Hz | 25.6 A @ 10 kHz | 12 mOhms | 1.252 (31.80mm) | 3.031 Dia (77.00mm) | 7.717 (196.00mm) | - | Chassis Mount |
|
|
ALS80C133NS350CAP ALUM 13000UF 20% 350V SCREW |
2,859 | 73.92 |
立即询盘 |
Datasheet |
Bulk | ALS80 | Active | 13000 µF | ±20% | 350 V | 18mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 18.7 A @ 100 Hz | 25.6 A @ 10 kHz | 12 mOhms | 1.252 (31.80mm) | 3.031 Dia (77.00mm) | 7.717 (196.00mm) | - | Chassis Mount |
|
|
ALS80G133NS350CAP ALUM 13000UF 20% 350V SCREW |
3,830 | 73.92 |
立即询盘 |
Datasheet |
Bulk | ALS80 | Active | 13000 µF | ±20% | 350 V | 18mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 18.7 A @ 100 Hz | 25.6 A @ 10 kHz | 12 mOhms | 1.252 (31.80mm) | 3.031 Dia (77.00mm) | 7.717 (196.00mm) | - | Chassis Mount |
|
|
ALS80H133NS350CAP ALUM 13000UF 20% 350V SCREW |
1,573 | 73.92 |
立即询盘 |
Datasheet |
Bulk | ALS80 | Active | 13000 µF | ±20% | 350 V | 18mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 18.7 A @ 100 Hz | 25.6 A @ 10 kHz | 12 mOhms | 1.252 (31.80mm) | 3.031 Dia (77.00mm) | 7.717 (196.00mm) | - | Chassis Mount |
|
|
ALS81G133NS350CAP ALUM 13000UF 20% 350V SCREW |
3,374 | 73.92 |
立即询盘 |
Datasheet |
Bulk | ALS81 | Active | 13000 µF | ±20% | 350 V | 18mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 18.7 A @ 100 Hz | 25.6 A @ 10 kHz | 12 mOhms | 1.252 (31.80mm) | 3.031 Dia (77.00mm) | 7.717 (196.00mm) | - | Chassis Mount |
|
|
ALS81H133NS350CAP ALUM 13000UF 20% 350V SCREW |
3,154 | 73.92 |
立即询盘 |
Datasheet |
Bulk | ALS81 | Active | 13000 µF | ±20% | 350 V | 18mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 18.7 A @ 100 Hz | 25.6 A @ 10 kHz | 12 mOhms | 1.252 (31.80mm) | 3.031 Dia (77.00mm) | 7.717 (196.00mm) | - | Chassis Mount |
|
|
ALS81P133NS350CAP ALUM 13000UF 20% 350V SCREW |
4,647 | 73.92 |
立即询盘 |
Datasheet |
Bulk | ALS81 | Active | 13000 µF | ±20% | 350 V | 18mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 18.7 A @ 100 Hz | 25.6 A @ 10 kHz | 12 mOhms | 1.252 (31.80mm) | 3.031 Dia (77.00mm) | 7.717 (196.00mm) | - | Chassis Mount |
|
|
ALS81U133NS350CAP ALUM 13000UF 20% 350V SCREW |
4,773 | 73.92 |
立即询盘 |
Datasheet |
Bulk | ALS81 | Active | 13000 µF | ±20% | 350 V | 18mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 18.7 A @ 100 Hz | 25.6 A @ 10 kHz | 12 mOhms | 1.252 (31.80mm) | 3.031 Dia (77.00mm) | 7.717 (196.00mm) | - | Chassis Mount |
|
|
ALS80A682QM450CAP ALUM 6800UF 20% 450V SCREW |
4,363 | 74.26 |
立即询盘 |
Datasheet |
Bulk | ALS80 | Active | 6800 µF | ±20% | 450 V | 28mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 17 A @ 100 Hz | 25.4 A @ 10 kHz | 19 mOhms | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 5.236 (133.00mm) | - | Chassis Mount |
|
|
ALS80C682QM450CAP ALUM 6800UF 20% 450V SCREW |
3,362 | 74.26 |
立即询盘 |
Datasheet |
Bulk | ALS80 | Active | 6800 µF | ±20% | 450 V | 28mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 17 A @ 100 Hz | 25.4 A @ 10 kHz | 19 mOhms | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 5.236 (133.00mm) | - | Chassis Mount |
|
|
ALS80H682QM450CAP ALUM 6800UF 20% 450V SCREW |
2,720 | 74.26 |
立即询盘 |
Datasheet |
Bulk | ALS80 | Active | 6800 µF | ±20% | 450 V | 28mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 17 A @ 100 Hz | 25.4 A @ 10 kHz | 19 mOhms | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 5.236 (133.00mm) | - | Chassis Mount |
|
|
ALS81A682QM450CAP ALUM 6800UF 20% 450V SCREW |
2,518 | 74.26 |
立即询盘 |
Datasheet |
Bulk | ALS81 | Active | 6800 µF | ±20% | 450 V | 28mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 17 A @ 100 Hz | 25.4 A @ 10 kHz | 19 mOhms | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 5.236 (133.00mm) | - | Chassis Mount |
|
|
ALS81C682QM450CAP ALUM 6800UF 20% 450V SCREW |
3,428 | 74.26 |
立即询盘 |
Datasheet |
Bulk | ALS81 | Active | 6800 µF | ±20% | 450 V | 28mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 17 A @ 100 Hz | 25.4 A @ 10 kHz | 19 mOhms | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 5.236 (133.00mm) | - | Chassis Mount |
|
|
ALS81H682QM450CAP ALUM 6800UF 20% 450V SCREW |
4,589 | 74.26 |
立即询盘 |
Datasheet |
Bulk | ALS81 | Active | 6800 µF | ±20% | 450 V | 28mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 17 A @ 100 Hz | 25.4 A @ 10 kHz | 19 mOhms | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 5.236 (133.00mm) | - | Chassis Mount |
|

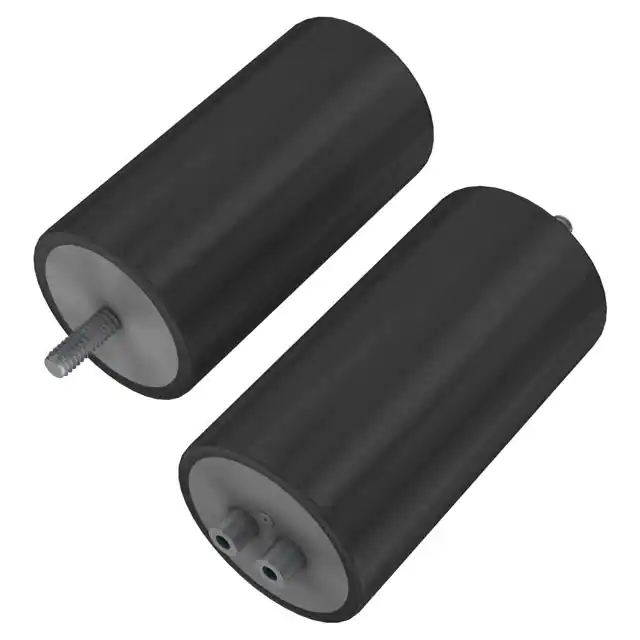

PEH169SO4220QB2CAP ALUM 2200UF 250V SCREW |
2,244 | 56.50 |
立即询盘 |
Datasheet |
Bulk | PEH169 | Active | 2200 µF | -10%, +30% | 250 V | 56mOhm @ 100Hz | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 1.122 (28.50mm) | 2.559 Dia (65.00mm) | 4.173 (106.00mm) | - | Chassis Mount |
|
|
ALS80A303NS200CAP ALUM 30000UF 20% 200V SCREW |
3,041 | 90.20 |
立即询盘 |
Datasheet |
Bulk | ALS80 | Active | 30000 µF | ±20% | 200 V | 15mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 21.4 A @ 100 Hz | 25.7 A @ 10 kHz | 12 mOhms | 1.252 (31.80mm) | 3.031 Dia (77.00mm) | 7.717 (196.00mm) | - | Chassis Mount |
|
|
ALS80C303NS200CAP ALUM 30000UF 20% 200V SCREW |
3,683 | 74.70 |
立即询盘 |
Datasheet |
Bulk | ALS80 | Active | 30000 µF | ±20% | 200 V | 15mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 21.4 A @ 100 Hz | 25.7 A @ 10 kHz | 12 mOhms | 1.252 (31.80mm) | 3.031 Dia (77.00mm) | 7.717 (196.00mm) | - | Chassis Mount |
|
|
ALS80G303NS200CAP ALUM 30000UF 20% 200V SCREW |
4,296 | 74.70 |
立即询盘 |
Datasheet |
Bulk | ALS80 | Active | 30000 µF | ±20% | 200 V | 15mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 21.4 A @ 100 Hz | 25.7 A @ 10 kHz | 12 mOhms | 1.252 (31.80mm) | 3.031 Dia (77.00mm) | 7.717 (196.00mm) | - | Chassis Mount |
|
|
ALS80H303NS200CAP ALUM 30000UF 20% 200V SCREW |
1,430 | 74.70 |
立即询盘 |
Datasheet |
Bulk | ALS80 | Active | 30000 µF | ±20% | 200 V | 15mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 21.4 A @ 100 Hz | 25.7 A @ 10 kHz | 12 mOhms | 1.252 (31.80mm) | 3.031 Dia (77.00mm) | 7.717 (196.00mm) | - | Chassis Mount |
|
|
ALS80P303NS200CAP ALUM 30000UF 20% 200V SCREW |
1,263 | 74.70 |
立即询盘 |
Datasheet |
Bulk | ALS80 | Active | 30000 µF | ±20% | 200 V | 15mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 21.4 A @ 100 Hz | 25.7 A @ 10 kHz | 12 mOhms | 1.252 (31.80mm) | 3.031 Dia (77.00mm) | 7.717 (196.00mm) | - | Chassis Mount |
