| 图片 | 型号 | 库存 | 价格 | 数量 | 规格书 | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALA7DA561EF550CAP ALUM 560UF 20% 550V SNAP |
3,332 | 19.36 |
立即询盘 |
Datasheet |
Bulk | ALA7D | Active | 560 µF | ±20% | 550 V | 315mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 3.2 A @ 100 Hz | 6.1 A @ 10 kHz | 220 mOhms | 0.394 (10.00mm) | 1.575 Dia (40.00mm) | 2.047 (52.00mm) | - | Through Hole |
|
|
ALA7DA301DF600CAP ALUM 300UF 20% 600V SNAP |
4,625 | 20.71 |
立即询盘 |
Datasheet |
Bulk | ALA7D | Active | 300 µF | ±20% | 600 V | 430mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 2.5 A @ 100 Hz | 5.2 A @ 10 kHz | 297 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 2.047 (52.00mm) | - | Through Hole |
|
ALC10A471EH500CAP ALUM 470UF 20% 500V SNAP |
1,684 | 19.64 |
立即询盘 |
Datasheet |
Bulk | ALC10 | Active | 470 µF | ±20% | 500 V | 285mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.56 A @ 100 Hz | 6.43 A @ 10 kHz | 201 mOhms | 0.394 (10.00mm) | 1.575 Dia (40.00mm) | 2.441 (62.00mm) | - | Through Hole |
|
ESH335M050AC3AACAP ALUM 3.3UF 20% 50V RADIAL |
13,996 | 0.25 |
立即询盘 |
Datasheet |
Bulk | ESH | Active | 3.3 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 25 mA @ 120 Hz | 50 mA @ 10 kHz | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
ESK476M050AE3EACAP ALUM 47UF 20% 50V RADIAL |
14,671 | 0.25 |
立即询盘 |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | ESK | Active | 47 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 140 mA @ 120 Hz | 210 mA @ 10 kHz | - | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.492 (12.50mm) | - | Through Hole |
|

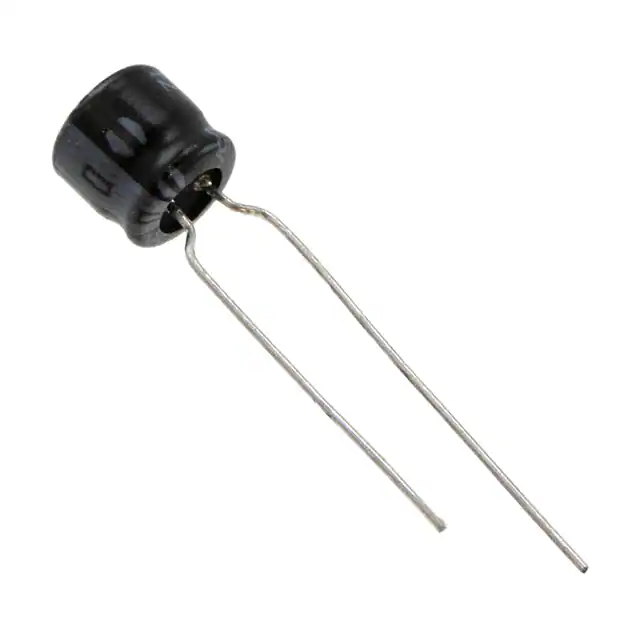

ES5107M016AE1EACAP ALUM 100UF 20% 16V RADIAL |
11,910 | 0.32 |
立即询盘 |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | ES5 | Active | 100 µF | ±20% | 16 V | - | - | -40°C ~ 105°C | Polar | - | General Purpose | - | 85 mA @ 100 kHz | - | 0.098 (2.50mm) | 0.236 Dia (6.00mm) | 0.197 (5.00mm) | - | Through Hole |
|

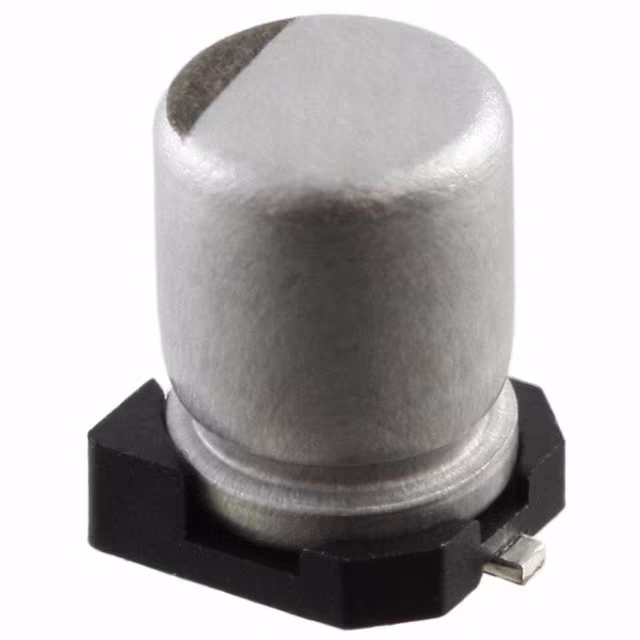

EDK475M035A9BAACAP ALUM 4.7UF 20% 35V SMD |
10,555 | 0.39 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | EDK | Active | 4.7 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 22 mA @ 120 Hz | 27.5 mA @ 10 kHz | - | - | 0.157 Dia (4.00mm) | 0.222 (5.64mm) | 0.169 L x 0.217 W (4.30mm x 5.50mm) | Surface Mount |
|
EDK476M016A9GAACAP ALUM 47UF 20% 16V SMD |
13,377 | 0.43 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | EDK | Active | 47 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 70 mA @ 120 Hz | 87.5 mA @ 10 kHz | - | - | 0.248 Dia (6.30mm) | 0.217 (5.50mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
EEV227M016A9HAACAP ALUM 220UF 20% 16V SMD |
14,202 | 0.67 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | EEV | Active | 220 µF | ±20% | 16 V | 220mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 196 mA @ 120 Hz | 280 mA @ 100 kHz | 220 mOhms | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
ESK228M025AL4EACAP ALUM 2200UF 20% 25V RADIAL |
7,248 | 1.00 |
立即询盘 |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | ESK | Active | 2200 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.3 A @ 120 Hz | 1.495 A @ 10 kHz | - | 0.197 (5.00mm) | 0.512 Dia (13.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
PEG124MA2100QL1CAP ALUM 10UF 20% 63V AXIAL |
6,416 | 5.15 |
立即询盘 |
Datasheet |
Box | PEG124 | Discontinued at Mosen | 10 µF | ±20% | 63 V | 5.9Ohm @ 100Hz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 76 mA @ 100 Hz | 79.04 mA @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.787 (20.00mm) | - | Through Hole |
|
|
PEG124RB2100QL1CAP ALUM 10UF 20% 200V AXIAL |
8,299 | 5.20 |
立即询盘 |
Datasheet |
Box | PEG124 | Discontinued at Mosen | 10 µF | ±20% | 200 V | 10Ohm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 65 mA @ 100 Hz | 67.6 mA @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 1.142 (29.00mm) | - | Through Hole |
|
|
PEG124PB222VQL1CAP ALUM 22UF 20% 100V AXIAL |
7,369 | 5.27 |
立即询盘 |
Datasheet |
Box | PEG124 | Discontinued at Mosen | 22 µF | ±20% | 100 V | 3Ohm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 122 mA @ 100 Hz | 126.88 mA @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 1.142 (29.00mm) | - | Through Hole |
|
|
PEG124HA310VQL1CAP ALUM 100UF 25V AXIAL |
8,136 | 5.27 |
立即询盘 |
Datasheet |
Box | PEG124 | Discontinued at Mosen | 100 µF | -10%, +30% | 25 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | - | - | - | - | 0.394 Dia (10.00mm) | 0.787 (20.00mm) | - | Through Hole |
|
|
PEG124MB2470QL1CAP ALUM 47UF 63V AXIAL |
8,573 | 5.27 |
立即询盘 |
Datasheet |
Box | PEG124 | Discontinued at Mosen | 47 µF | -10%, +30% | 63 V | 1.6Ohm @ 100Hz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 190 mA @ 100 Hz | 197.6 mA @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 1.142 (29.00mm) | - | Through Hole |
|
|
PEG124MA2100QT1CAP ALUM 10UF 20% 63V AXIAL |
7,488 | 5.43 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PEG124 | Active | 10 µF | ±20% | 63 V | 5.9Ohm @ 100Hz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 76 mA @ 100 Hz | 79.04 mA @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.787 (20.00mm) | - | Through Hole |
|
|
PEG124PD247VQL1CAP ALUM 47UF 100V AXIAL |
7,723 | 5.46 |
立即询盘 |
Datasheet |
Box | PEG124 | Discontinued at Mosen | 47 µF | -10%, +30% | 100 V | 1.5Ohm @ 100Hz | 2000 Hrs @ 125°C | -40°C ~ 105°C | Polar | - | General Purpose | 206 mA @ 100 Hz | 214.24 mA @ 100 kHz | - | - | 0.512 Dia (13.00mm) | 1.142 (29.00mm) | - | Through Hole |
|
PEG124KB2680QL1CAP ALUM 68UF 40V AXIAL |
9,893 | 5.24 |
立即询盘 |
Datasheet |
Bulk | PEG124 | Discontinued at Mosen | 68 µF | -10%, +30% | 40 V | 1.4Ohm @ 100Hz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 221 mA @ 100 Hz | - | - | - | 0.394 Dia x 1.142 L (10.00mm x 29.00mm) | - | - | Through Hole |
|

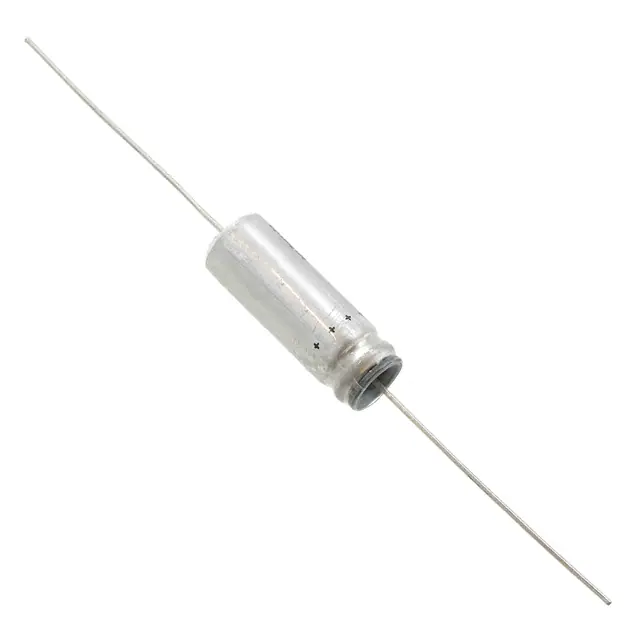

PEG124MB247VQL1CAP ALUM 47UF 63V AXIAL |
6,952 | 5.40 |
立即询盘 |
Datasheet |
Bulk | PEG124 | Discontinued at Mosen | 47 µF | -10%, +30% | 63 V | 1.6Ohm @ 100Hz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | - | - | - | - | 0.394 Dia x 1.142 L (10.00mm x 29.00mm) | - | - | Through Hole |
|
PEG130MJ4140QL1CAP ALUM 1400UF 63V AXIAL |
8,207 | 6.33 |
立即询盘 |
Datasheet |
Bulk | PEG130 | Discontinued at Mosen | 1400 µF | -10%, +30% | 63 V | 64mOhm @ 100Hz | 37000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.4 A @ 100 Hz | - | - | - | 0.787 Dia x 1.457 L (20.00mm x 37.00mm) | - | - | Through Hole |
