| 图片 | 型号 | 库存 | 价格 | 数量 | 规格书 | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAL210119472E3CAP ALUM 4700UF 20% 100V SCREW |
3,258 | 37.04 |
立即询盘 |
Datasheet |
Bulk | 101 PHR-ST | Active | 4700 µF | ±20% | 100 V | 31mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.3 A @ 100 Hz | 9.49 A @ 10 kHz | 20 mOhms | 0.504 (12.80mm) | 1.378 Dia (35.00mm) | 3.240 (82.30mm) | - | Chassis Mount |
|
MAL205158223E3CAP ALUM 22000UF 20% 63V RADIAL |
1,809 | 42.52 |
立即询盘 |
Datasheet |
Bulk | 051 PEC-PW | Active | 22000 µF | ±20% | 63 V | 22mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 10 A @ 100 Hz | - | 19 mOhms | 0.787 (20.00mm) | 1.575 Dia (40.00mm) | 4.134 (105.00mm) | - | Through Hole |
|
|
MAL205356102E3CAP ALUM 1000UF 20% 400V RADIAL |
3,693 | 42.76 |
立即询盘 |
Datasheet |
Bulk | 053 PEC-PW | Active | 1000 µF | ±20% | 400 V | 160mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.05 A @ 100 Hz | - | 110 mOhms | 0.787 (20.00mm) | 1.575 Dia (40.00mm) | 4.134 (105.00mm) | - | Through Hole |
|
MAL210127333E3CAP ALUM 33000UF 20% 40V SCREW |
4,126 | 44.22 |
立即询盘 |
Datasheet |
Bulk | 101 PHR-ST | Active | 33000 µF | ±20% | 40 V | 13mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 13.7 A @ 100 Hz | - | 10 mOhms | 0.874 (22.20mm) | 1.969 Dia (50.00mm) | 3.496 (88.80mm) | - | Chassis Mount |
|
MAL210618103E3CAP ALUM 10000UF 63V SCREW |
4,203 | 48.77 |
立即询盘 |
Datasheet |
Bulk | 106 PED-ST | Active | 10000 µF | -10%, +30% | 63 V | 12mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 17 A @ 100 Hz | - | 9 mOhms | 0.874 (22.20mm) | 1.969 Dia (50.00mm) | 3.535 (89.80mm) | - | Chassis Mount |
|

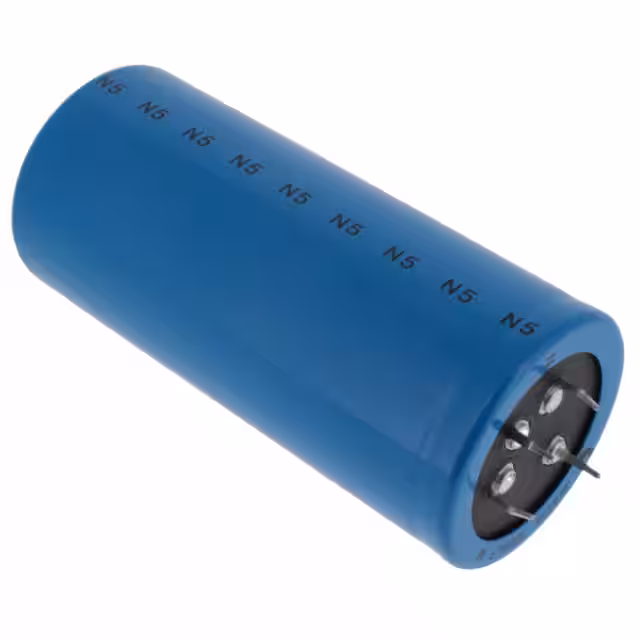

MAL209537152E3CAP ALUM 1500UF 20% 450V SNAP |
3,116 | 54.77 |
立即询盘 |
Datasheet |
Bulk | 095 PLL-4TSI | Active | 1500 µF | ±20% | 450 V | 71mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.4 A @ 100 Hz | - | 42 mOhms | 0.886 (22.50mm) | 1.772 Dia (45.00mm) | 3.937 (100.00mm) | - | Through Hole |
|
MAL210253472E3CAP ALUM 4700UF 20% 250V SCREW |
3,747 | 67.20 |
立即询盘 |
Datasheet |
Bulk | 102 PHR-ST | Active | 4700 µF | ±20% | 250 V | 29mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 13.8 A @ 100 Hz | - | 19 mOhms | 1.122 (28.50mm) | 2.559 Dia (65.00mm) | 4.358 (110.70mm) | - | Chassis Mount |
|
|
MAL210118333E3CAP ALUM 33000UF 20% 63V SCREW |
4,388 | 67.63 |
立即询盘 |
Datasheet |
Bulk | 101 PHR-ST | Active | 33000 µF | ±20% | 63 V | 14mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 12.9 A @ 100 Hz | - | 12 mOhms | 0.874 (22.20mm) | 1.969 Dia (50.00mm) | 4.362 (110.80mm) | - | Chassis Mount |
|

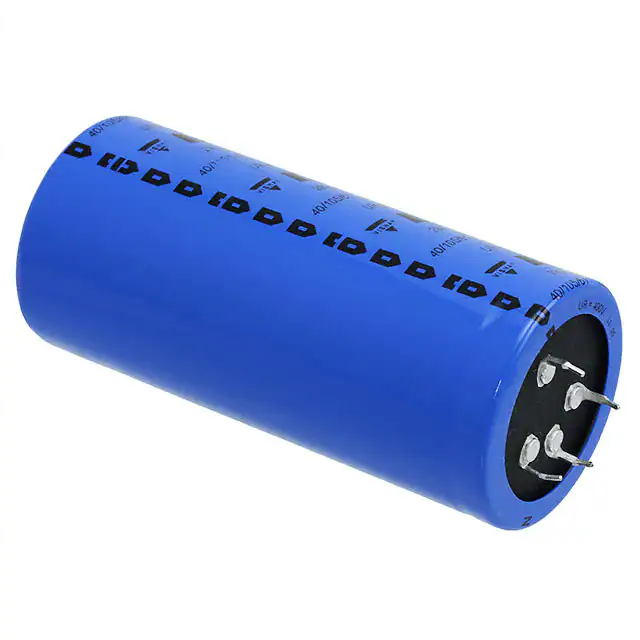

MAL229956222E3CAP ALUM 2200UF 20% 400V SNAP |
1,699 | 68.07 |
立即询盘 |
Datasheet |
Bulk | 299 PHL-4TSI | Active | 2200 µF | ±20% | 400 V | 60mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 6.77 A @ 100 Hz | 10.155 A @ 10 kHz | 50 mOhms | 0.886 (22.50mm) | 1.772 Dia (45.00mm) | 4.016 (102.00mm) | - | Through Hole |
|

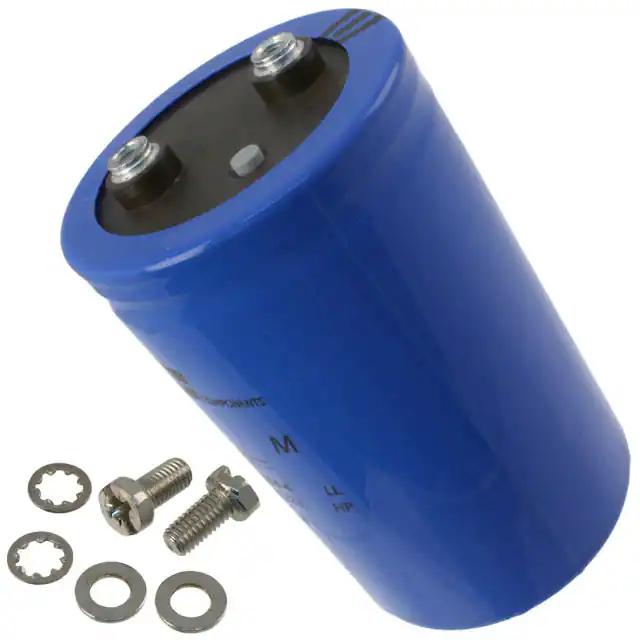

MAL210226222E3CAP ALUM 2200UF 20% 400V SCREW |
2,332 | 73.29 |
立即询盘 |
Datasheet |
Bulk | 102 PHR-ST | Active | 2200 µF | ±20% | 400 V | 60mOhm | 10000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | 15 A @ 10 kHz | 40 mOhms | 1.122 (28.50mm) | 2.559 Dia (65.00mm) | 4.134 (105.00mm) | - | Chassis Mount |
|
MAL250117472E3CAP ALUM 4700UF 20% 450V SCREW |
3,819 | 88.35 |
立即询盘 |
Datasheet |
Box | 501 PGM-ST | Active | 4700 µF | ±20% | 450 V | 40mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 14.6 A @ 100 Hz | 21.9 A @ 10 kHz | 29 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | - | - | Chassis Mount |
|
|
MAL210617473E3CAP ALUM 47000UF 40V SCREW |
1,405 | 91.04 |
立即询盘 |
Datasheet |
Bulk | 106 PED-ST | Active | 47000 µF | -10%, +30% | 40 V | 8mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 24.5 A @ 100 Hz | - | 8 mOhms | 1.122 (28.50mm) | 2.559 Dia (65.00mm) | 4.402 (111.80mm) | - | Chassis Mount |
|
|
MAL210619153E3CAP ALUM 15000UF 100V SCREW |
876 | 101.68 |
立即询盘 |
Datasheet |
Bulk | 106 PED-ST | Active | 15000 µF | -10%, +30% | 100 V | 10mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 17.6 A @ 100 Hz | - | 6 mOhms | 1.122 (28.50mm) | 2.559 Dia (65.00mm) | 4.402 (111.80mm) | - | Chassis Mount |
|

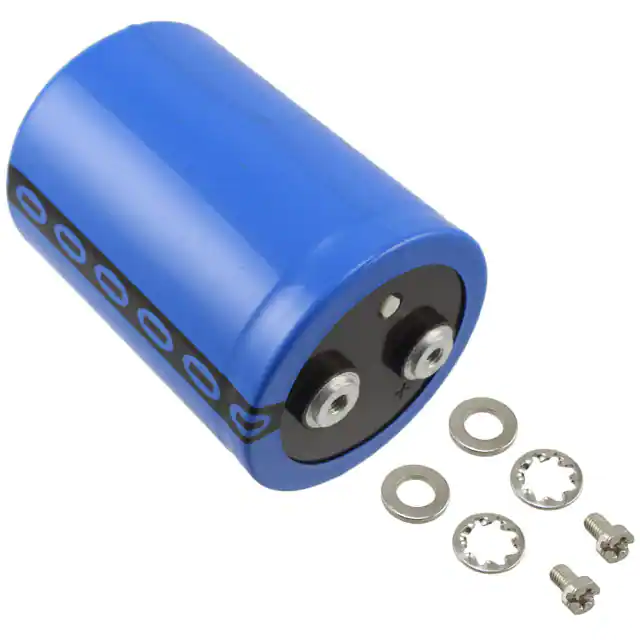

MAL210446222E3CAP ALUM 2200UF 20% 400V SCREW |
479 | 102.50 |
立即询盘 |
Datasheet |
Bulk | 104 PHL-ST | Active | 2200 µF | ±20% | 400 V | 56mOhm | 5000 Hrs @ 105°C | -40°C ~ 105°C | - | - | General Purpose | - | 14.1 A @ 10 kHz | 33 mOhms | 1.252 (31.80mm) | 3.008 Dia (76.40mm) | 4.378 (111.20mm) | - | Chassis Mount |
|
MAL203838109E3CAP ALUM 10UF 20% 63V RADIAL |
14,893 | 0.43 |
立即询盘 |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | 038 RSU | Last Time Buy | 10 µF | ±20% | 63 V | - | 2500 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | 105 mA @ 10 kHz | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
|
MAL203878109E3CAP ALUM 10UF 20% 63V RADIAL |
13,357 | 0.43 |
立即询盘 |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | 038 RSU | Last Time Buy | 10 µF | ±20% | 63 V | - | 2500 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | 105 mA @ 10 kHz | - | 0.098 (2.50mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
|
MAL203831229E3CAP ALUM 22UF 20% 50V RADIAL |
12,106 | 0.45 |
立即询盘 |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | 038 RSU | Last Time Buy | 22 µF | ±20% | 50 V | - | 2500 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | 142.5 mA @ 10 kHz | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
MAL203876101E3CAP ALUM 100UF 20% 25V RADIAL |
10,459 | 0.49 |
立即询盘 |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | 038 RSU | Last Time Buy | 100 µF | ±20% | 25 V | - | 2500 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | 256.5 mA @ 10 kHz | - | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.492 (12.50mm) | - | Through Hole |
|
MAL203836221E3CAP ALUM 220UF 20% 25V RADIAL |
13,331 | 0.68 |
立即询盘 |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | 038 RSU | Last Time Buy | 220 µF | ±20% | 25 V | - | 2500 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | 432 mA @ 10 kHz | - | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
|
MAL203858338E3CAP ALUM 3.3UF 20% 63V RADIAL |
10,099 | 0.38 |
立即询盘 |
Datasheet |
Bulk | 038 RSU | Last Time Buy | 3.3 µF | ±20% | 63 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 34 mA @ 100 Hz | - | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
