| 图片 | 型号 | 库存 | 价格 | 数量 | 规格书 | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAL225621272E3CAP ALUM 2700UF 20% 50V SNAP |
7,631 | 4.94 |
立即询盘 |
Datasheet |
Bulk | 256 PMG-SI | Active | 2700 µF | ±20% | 50 V | 172mOhm | 2000 Hrs @ 105°C | -40°C ~ 105°C | - | - | General Purpose | - | 1.836 A @ 10 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
MAL215056682E3CAP ALUM 6800UF 20% 25V RADIAL |
8,896 | 5.01 |
立即询盘 |
Datasheet |
Bulk | 150 RMI | Active | 6800 µF | ±20% | 25 V | - | 10000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.66 A @ 100 Hz | - | 18 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.673 (42.50mm) | - | Through Hole |
|
MAL225099017E3CAP ALUM 2200UF 20% 35V SMD |
7,979 | 5.10 |
立即询盘 |
Datasheet |
Box | 250 RMI-V | Active | - | ±20% | - | - | - | -55°C ~ 105°C | Polar | AEC-Q200 | Audio, Automotive | - | - | - | - | 0.709 Dia (18.00mm) | 0.866 (22.00mm) | 0.748 L x 0.748 W (19.00mm x 19.00mm) | Surface Mount |
|

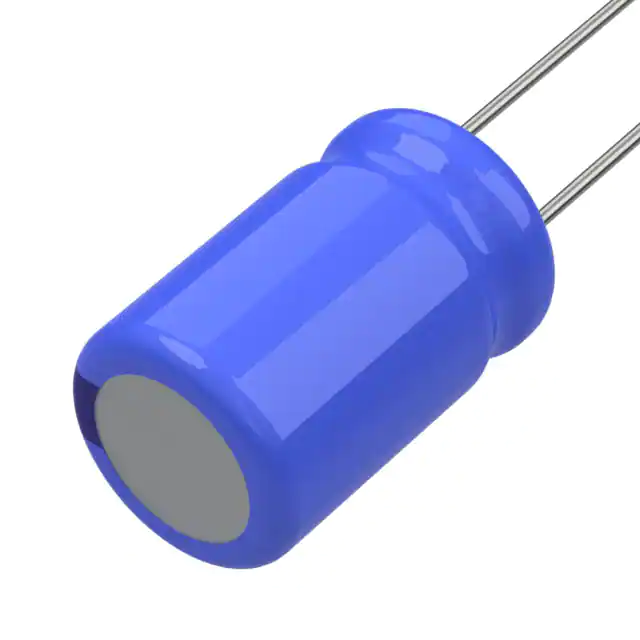

MAL226056152E3CAP ALUM 1500UF 20% 25V RADIAL |
9,526 | 5.15 |
立即询盘 |
Box | 260 RLA-V | Active | 1500 µF | ±20% | 25 V | - | 2000 Hrs @ 150°C | -55°C ~ 150°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 1.12 A @ 100 Hz | 1.6 A @ 100 kHz | 25 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.319 (33.50mm) | - | Through Hole | |
|
MAL224655682E3CAP ALUM 6800UF 20% 16V RADIAL |
6,855 | 5.15 |
立即询盘 |
Datasheet |
Box | 246 RTI-V | Active | 6800 µF | ±20% | 16 V | - | 6000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | 2.17 A @ 100 Hz | 3.1 A @ 100 kHz | 22 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.319 (33.50mm) | - | Through Hole |
|
MAL213650222E3CAP ALUM 2200UF 20% 35V RADIAL |
7,927 | 5.17 |
立即询盘 |
Datasheet |
Bulk | 136 RVI | Active | 2200 µF | ±20% | 35 V | - | 10000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.56 A @ 100 Hz | - | 22 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.476 (37.50mm) | - | Through Hole |
|
|
MAL213655472E3CAP ALUM 4700UF 20% 16V RADIAL |
7,538 | 5.17 |
立即询盘 |
Datasheet |
Bulk | 136 RVI | Active | 4700 µF | ±20% | 16 V | - | 10000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.794 A @ 100 Hz | - | 22 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.476 (37.50mm) | - | Through Hole |
|
MAL214690225E3CAP ALUM 2200UF 20% 35V RADIAL |
8,913 | 5.18 |
立即询盘 |
Datasheet |
Bulk | 146 RTI | Active | 2200 µF | ±20% | 35 V | - | 6000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | - | 3 A @ 100 kHz | 21 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.319 (33.50mm) | - | Through Hole |
|

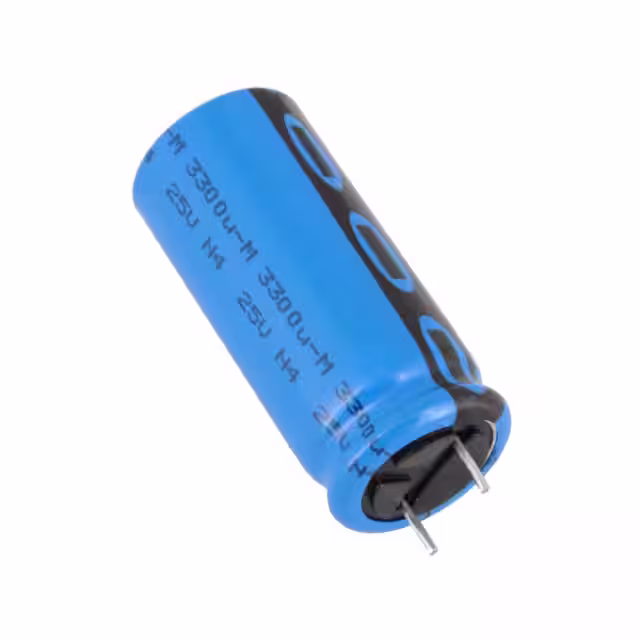

MAL213666332E3CAP ALUM 3300UF 20% 25V RADIAL |
9,923 | 5.22 |
立即询盘 |
Datasheet |
Bulk | 136 RVI | Active | 3300 µF | ±20% | 25 V | - | 10000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.794 A @ 100 Hz | - | 22 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.476 (37.50mm) | - | Through Hole |
|
MAL213699476E3CAP ALUM 470UF 20% 100V RADIAL |
5,500 | 5.22 |
立即询盘 |
Datasheet |
Bulk | 136 RVI | Active | 470 µF | ±20% | 100 V | - | 10000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 900 mA @ 100 Hz | - | 45 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.319 (33.50mm) | - | Through Hole |
|
MAL204216159E3CAP ALUM 15UF 400V AXIAL |
7,664 | 5.25 |
立即询盘 |
Datasheet |
Tape & Box (TB) | 042 ASH | Active | 15 µF | -10%, +50% | 400 V | 5Ohm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 210 mA @ 100 Hz | - | 3.1 Ohms | - | 0.591 Dia x 1.181 L (15.00mm x 30.00mm) | - | - | Through Hole |
|
MAL205857332E3CAP ALUM 3300UF 20% 40V SNAP |
2,637 | 10.91 |
立即询盘 |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | 058 PLL-SI | Active | 3300 µF | ±20% | 40 V | 71mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.43 A @ 100 Hz | - | 45 mOhms | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
MAL224699711E3CAP ALUM 330UF 20% 80V SMD |
5,521 | 5.30 |
立即询盘 |
Datasheet |
Box | 246 CTI-V | Active | 330 µF | ±20% | 80 V | - | 2500 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 540 mA @ 100 Hz | 900 mA @ 100 kHz | 160 mOhms | - | 0.709 Dia (18.00mm) | 0.689 (17.50mm) | 0.748 L x 0.748 W (19.00mm x 19.00mm) | Surface Mount |
|
MAL214651182E3CAP ALUM 1800UF 20% 50V RADIAL |
7,071 | 5.33 |
立即询盘 |
Datasheet |
Bulk | 146 RTI | Active | 1800 µF | ±20% | 50 V | - | 6000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | - | 2.7 A @ 100 kHz | 26 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.319 (33.50mm) | - | Through Hole |
|
|
MAL214655682E3CAP ALUM 6800UF 20% 16V RADIAL |
9,439 | 5.33 |
立即询盘 |
Datasheet |
Bulk | 146 RTI | Active | 6800 µF | ±20% | 16 V | - | 6000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | - | 3.1 A @ 100 kHz | 22 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.319 (33.50mm) | - | Through Hole |
|
|
MAL224651222E3CAP ALUM 2200UF 20% 50V RADIAL |
6,371 | 5.83 |
立即询盘 |
Datasheet |
Box | 246 RTI-V | Active | 2200 µF | ±20% | 50 V | - | 6000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | 1.5 A @ 100 Hz | 3 A @ 100 kHz | 22 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.476 (37.50mm) | - | Through Hole |
|
|
MAL226055332E3CAP ALUM 3300UF 20% 16V RADIAL |
5,001 | 5.84 |
立即询盘 |
Box | 260 RLA-V | Active | 3300 µF | ±20% | 16 V | - | 2000 Hrs @ 150°C | -55°C ~ 150°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 1.4 A @ 100 Hz | 2 A @ 100 kHz | 23 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.476 (37.50mm) | - | Through Hole | |
|
|
MAL226050102E3CAP ALUM 1000UF 20% 35V RADIAL |
5,893 | 5.84 |
立即询盘 |
Box | 260 RLA-V | Active | 1000 µF | ±20% | 35 V | - | 2000 Hrs @ 150°C | -55°C ~ 150°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 780 mA @ 100 Hz | 1.2 A @ 100 kHz | 24 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.476 (37.50mm) | - | Through Hole | |
|
|
MAL214658122E3CAP ALUM 1200UF 20% 63V RADIAL |
9,402 | 6.04 |
立即询盘 |
Datasheet |
Bulk | 146 RTI | Active | 1200 µF | ±20% | 63 V | - | 6000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | - | 2.6 A @ 100 kHz | 29 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.378 (35.00mm) | - | Through Hole |
|
MAL214660332E3CAP ALUM 3300UF 20% 35V RADIAL |
5,046 | 6.12 |
立即询盘 |
Datasheet |
Bulk | 146 RTI | Active | 3300 µF | ±20% | 35 V | - | 6000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | 2.015 A @ 100 Hz | - | 19 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.457 (37.00mm) | - | Through Hole |
