| 图片 | 型号 | 库存 | 价格 | 数量 | 规格书 | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELXV101ELL221ML25SCAP ALUM 220UF 20% 100V RADIAL |
6,263 | 1.99 |
立即询盘 |
Datasheet |
Bulk | LXV | Active | 220 µF | ±20% | 100 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 720 mA @ 120 Hz | 1.44 A @ 100 kHz | 81 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.043 (26.50mm) | - | Through Hole |
|
EMZR500ADA221MHA0GCAP ALUM 220UF 20% 50V SMD |
5,169 | 1.03 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Alchip™- MZR | Active | 220 µF | ±20% | 50 V | 180mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 335 mA @ 120 Hz | 670 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.406 (10.30mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
EKZE500ELL681MK30SCAP ALUM 680UF 20% 50V RADIAL |
9,060 | 2.01 |
立即询盘 |
Datasheet |
Bulk | KZE | Active | 680 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.716 A @ 120 Hz | 2.86 A @ 100 kHz | 21 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.181 (30.00mm) | - | Through Hole |
|

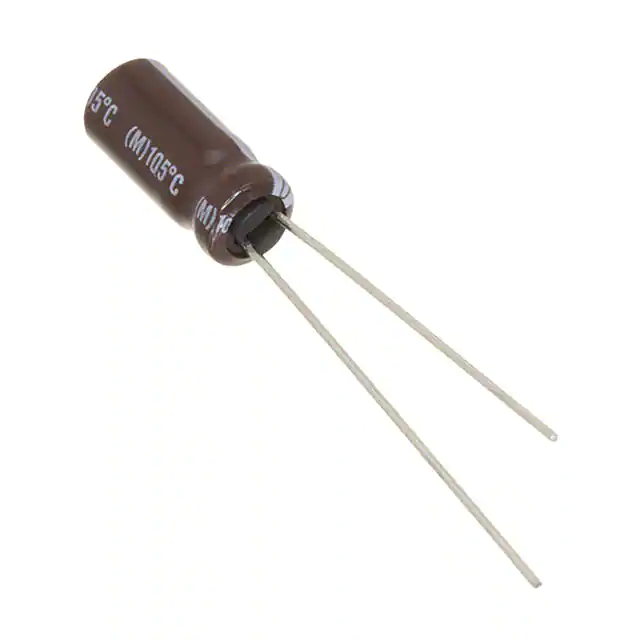

EKYA101ELL1R0ME11DCAP ALUM 1UF 20% 100V RADIAL |
14,667 | 0.44 |
立即询盘 |
Datasheet |
Bulk | KYA | Active | 1 µF | ±20% | 100 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 8 mA @ 120 Hz | 20 mA @ 100 kHz | 4.5 Ohms | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
EKZN350ELL470ME11DCAP ALUM 47UF 20% 35V RADIAL |
11,780 | 0.44 |
立即询盘 |
Datasheet |
Bulk | KZN | Active | 47 µF | ±20% | 35 V | - | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 180 mA @ 120 Hz | 450 mA @ 100 kHz | 380 mOhms | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
EMZS250ARA561MHA0GCAP ALUM 560UF 20% 25V SMD |
8,407 | 1.05 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Alchip™- MZS | Active | 560 µF | ±20% | 25 V | 80mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 425 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
ELXY630ELL471ML25SCAP ALUM 470UF 20% 63V RADIAL |
5,474 | 2.05 |
立即询盘 |
Datasheet |
Bulk | LXY | Active | 470 µF | ±20% | 63 V | - | 8000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 740 mA @ 120 Hz | 1.48 A @ 100 kHz | 55 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.043 (26.50mm) | - | Through Hole |
|
ELXZ350ELL152MK35SCAP ALUM 1500UF 20% 35V RADIAL |
7,226 | 2.06 |
立即询盘 |
Datasheet |
Bulk | LXZ | Active | 1500 µF | ±20% | 35 V | - | 7000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.506 A @ 120 Hz | 2.51 A @ 100 kHz | 22 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.437 (36.50mm) | - | Through Hole |
|
EKYB101ELL150MF11DCAP ALUM 15UF 20% 100V RADIAL |
11,087 | 0.45 |
立即询盘 |
Datasheet |
Bulk | KYB | Active | 15 µF | ±20% | 100 V | - | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 106.8 mA @ 120 Hz | 267 mA @ 100 kHz | 430 mOhms | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.492 (12.50mm) | - | Through Hole |
|
|
EKZE101ELL331MK35SCAP ALUM 330UF 20% 100V RADIAL |
7,149 | 2.22 |
立即询盘 |
Datasheet |
Bulk | KZE | Active | 330 µF | ±20% | 100 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 825 mA @ 120 Hz | 1.65 A @ 100 kHz | 36 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.378 (35.00mm) | - | Through Hole |
|

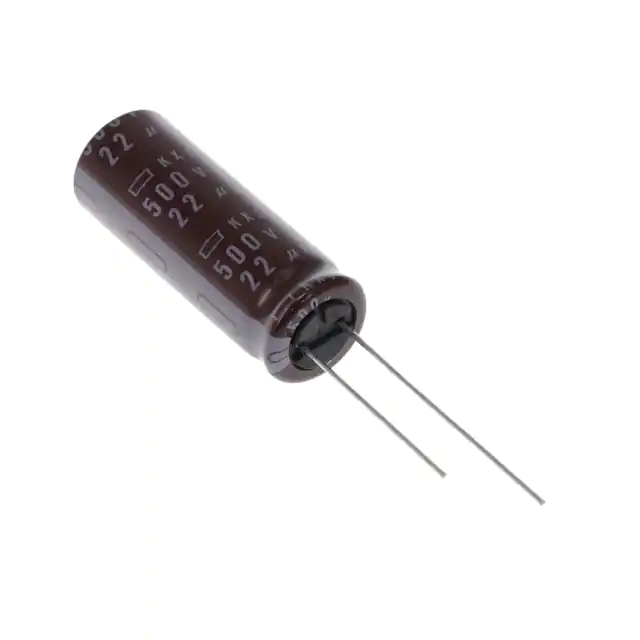

EKXJ501ELL220MK35SCAP ALUM 22UF 20% 500V RADIAL TH |
6,862 | 2.22 |
立即询盘 |
Datasheet |
Bulk | KXJ | Active | 22 µF | ±20% | 500 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | AEC-Q200 | Automotive | 220 mA @ 120 Hz | 569.8 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.437 (36.50mm) | - | Through Hole |
|
ELXZ500ELL102MK40SCAP ALUM 1000UF 20% 50V RADIAL |
5,027 | 2.24 |
立即询盘 |
Datasheet |
Bulk | LXZ | Active | 1000 µF | ±20% | 50 V | - | 7000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.5 A @ 120 Hz | 2.5 A @ 100 kHz | 29 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.634 (41.50mm) | - | Through Hole |
|
EKXG161ELL101ML20SCAP ALUM 100UF 20% 160V RADIAL |
6,909 | 2.25 |
立即询盘 |
Datasheet |
Bulk | KXG | Active | 100 µF | ±20% | 160 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 630 mA @ 120 Hz | 1.4175 A @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 0.787 (20.00mm) | - | Through Hole |
|
ELXZ630ELL681MM20SCAP ALUM 680UF 20% 63V RADIAL |
7,368 | 2.26 |
立即询盘 |
Datasheet |
Bulk | LXZ | Active | 680 µF | ±20% | 63 V | - | 8000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.374 A @ 120 Hz | 2.29 A @ 100 kHz | 55 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 0.787 (20.00mm) | - | Through Hole |
|
EKXG451ELL150MK25SCAP ALUM 15UF 20% 450V RADIAL |
7,347 | 2.29 |
立即询盘 |
Datasheet |
Bulk | KXG | Active | 15 µF | ±20% | 450 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 240 mA @ 120 Hz | 600 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.984 (25.00mm) | - | Through Hole |
|
|
EMZR250ARA471MHA0GCAP ALUM 470UF 20% 25V SMD |
9,204 | 1.12 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Alchip™- MZR | Active | 470 µF | ±20% | 25 V | 80mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 425 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
EMZR350ARA331MHA0GCAP ALUM 330UF 20% 35V SMD |
8,457 | 1.12 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Alchip™- MZR | Active | 330 µF | ±20% | 35 V | 80mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 425 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
EMZR500ARA221MHA0GCAP ALUM 220UF 20% 50V SMD |
9,674 | 1.12 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Alchip™- MZR | Active | 220 µF | ±20% | 50 V | 180mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 335 mA @ 120 Hz | 670 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
EGPA350ELL102MK25SCAP ALUM 1000UF 20% 35V RADIAL |
7,997 | 2.30 |
立即询盘 |
Datasheet |
Bulk | GPA | Active | 1000 µF | ±20% | 35 V | 33mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 1.368 A @ 120 Hz | 2.28 A @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.043 (26.50mm) | - | Through Hole |
|
EMVY630GDA471MLN0SCAP ALUM 470UF 20% 63V SMD |
5,033 | 3.67 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Alchip™- MVY | Active | 470 µF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 550 mA @ 120 Hz | 1.1 A @ 100 kHz | 85 mOhms | - | 0.630 Dia (16.00mm) | 0.846 (21.50mm) | 0.669 L x 0.669 W (17.00mm x 17.00mm) | Surface Mount |
