| 图片 | 型号 | 库存 | 价格 | 数量 | 规格书 | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EGXF630ELL511MK25SCAP ALUM 510UF 20% 63V RADIAL TH |
9,114 | 2.01 |
立即询盘 |
Datasheet |
Bulk | GXF | Active | 510 µF | ±20% | 63 V | 72mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 940 mA @ 120 Hz | - | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.043 (26.50mm) | - | Through Hole |
|
|
EGXF350ELL112ML15SCAP ALUM 1100UF 20% 35V RAD TH |
7,759 | 2.05 |
立即询盘 |
Datasheet |
Bulk | GXF | Active | 1100 µF | ±20% | 35 V | 63mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 858 mA @ 120 Hz | - | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 0.650 (16.50mm) | - | Through Hole |
|
|
EGXF250ELL222MU20SCAP ALUM 2200UF 20% 25V RAD TH |
5,535 | 2.18 |
立即询盘 |
Datasheet |
Bulk | GXF | Active | 2200 µF | ±20% | 25 V | 30mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 1.335 A @ 120 Hz | - | - | 0.295 (7.50mm) | 0.571 Dia (14.50mm) | 0.846 (21.50mm) | - | Through Hole |
|

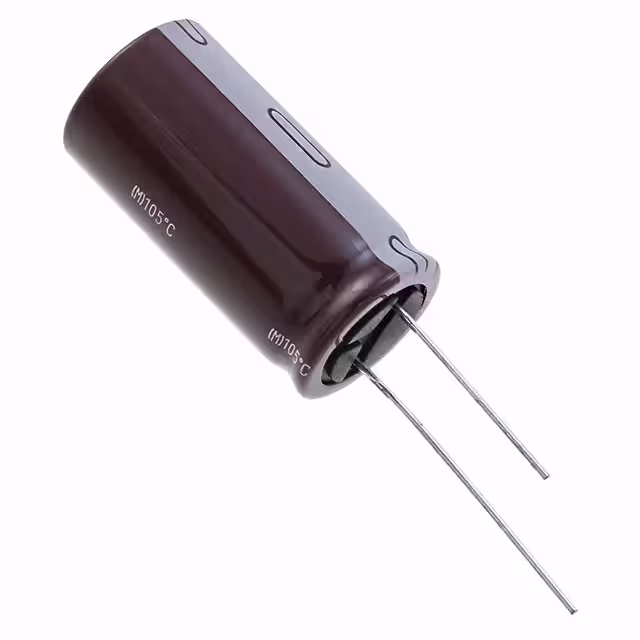

EKZN500ELL821ML20SCAP ALUM 820UF 20% 50V RADIAL |
8,977 | 2.18 |
立即询盘 |
Datasheet |
Bulk | KZN | Active | 820 µF | ±20% | 50 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.842 A @ 120 Hz | 3.07 A @ 100 kHz | 26 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 0.846 (21.50mm) | - | Through Hole |
|
|
EGXF500ELL162ML30SCAP ALUM 1600UF 20% 50V RAD TH |
6,171 | 3.59 |
立即询盘 |
Datasheet |
Bulk | GXF | Active | 1600 µF | ±20% | 50 V | 23mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 1.89 A @ 120 Hz | - | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.240 (31.50mm) | - | Through Hole |
|
ELBK250ELL592AL25SCAP ALUM 5900UF 25V RADIAL |
5,611 | 3.64 |
立即询盘 |
Datasheet |
Bulk | LBK | Active | 5900 µF | 0%, +30% | 25 V | 24mOhm @ 100kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.21 A @ 120 Hz | 2.6 A @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
|
EGXF401ELL510MK40SCAP ALUM 51UF 20% 400V RADIAL TH |
7,314 | 3.72 |
立即询盘 |
Datasheet |
Bulk | GXF | Active | 51 µF | ±20% | 400 V | - | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 507.5 mA @ 120 Hz | - | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.634 (41.50mm) | - | Through Hole |
|
EKZN160ELL123MM40SCAP ALUM 12000UF 20% 16V RADIAL |
5,952 | 4.97 |
立即询盘 |
Datasheet |
Bulk | KZN | Active | 12000 µF | ±20% | 16 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.216 A @ 120 Hz | 4.96 A @ 100 kHz | 11 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.634 (41.50mm) | - | Through Hole |
|
EMVA100ADA331MHA0GCAP ALUM 330UF 20% 10V SMD |
9,120 | 1.06 |
立即询盘 |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Alchip™- MVA | Active | 330 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 270 mA @ 120 Hz | 291.6 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.394 (10.00mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
ELXZ6R3ELL122MH20DCAP ALUM 1200UF 20% 6.3V RADIAL |
14,150 | 0.58 |
立即询盘 |
Datasheet |
Bulk | LXZ | Active | 1200 µF | ±20% | 6.3 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 486 mA @ 120 Hz | 810 mA @ 100 kHz | 80 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.787 (20.00mm) | - | Through Hole |
|
ELXV630ELL680MH15DCAP ALUM 68UF 20% 63V RADIAL |
12,968 | 0.68 |
立即询盘 |
Datasheet |
Bulk | LXV | Active | 68 µF | ±20% | 63 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 72 mA @ 120 Hz | 360 mA @ 100 kHz | 340 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.650 (16.50mm) | - | Through Hole |
|
EKMG161ELL3R3MF11DCAP ALUM 3.3UF 20% 160V RADIAL |
11,588 | 0.73 |
立即询盘 |
Datasheet |
Bulk | KMG | Active | 3.3 µF | ±20% | 160 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 28 mA @ 120 Hz | 70 mA @ 100 kHz | - | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.492 (12.50mm) | - | Through Hole |
|
|
EKMG201ELL3R3MF11DCAP ALUM 3.3UF 20% 200V RADIAL |
10,412 | 0.75 |
立即询盘 |
Datasheet |
Bulk | KMG | Active | 3.3 µF | ±20% | 200 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 28 mA @ 120 Hz | 70 mA @ 100 kHz | - | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.492 (12.50mm) | - | Through Hole |
|

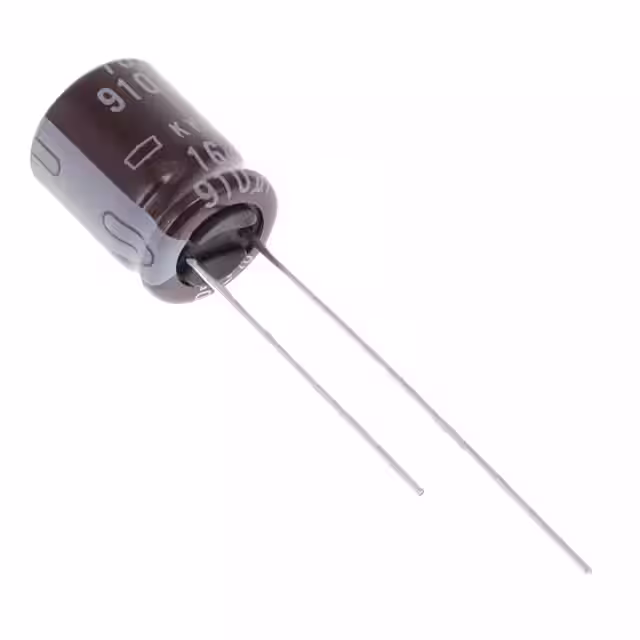

EKYC160ELL911MJC5SCAP ALUM 910UF 20% 16V RADIAL |
13,547 | 0.78 |
立即询盘 |
Datasheet |
Bulk | KYC | Active | 910 µF | ±20% | 16 V | 140mOhm @ 100kHz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 672 mA @ 120 Hz | 1.12 A @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.551 (14.00mm) | - | Through Hole |
|
EKZE630ELL560MHB5DCAP ALUM 56UF 20% 63V RADIAL |
12,864 | 0.79 |
立即询盘 |
Datasheet |
Bulk | KZE | Active | 56 µF | ±20% | 63 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 200 mA @ 120 Hz | 500 mA @ 100 kHz | 220 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
ELXY100ELL471MH15DCAP ALUM 470UF 20% 10V RADIAL |
14,816 | 0.80 |
立即询盘 |
Datasheet |
Bulk | LXY | Active | 470 µF | ±20% | 10 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 277.5 mA @ 120 Hz | 555 mA @ 100 kHz | 130 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.650 (16.50mm) | - | Through Hole |
|
EKZH350ELL391MH20DCAP ALUM 390UF 20% 35V RADIAL |
14,579 | 0.84 |
立即询盘 |
Datasheet |
Bulk | KZH | Active | 390 µF | ±20% | 35 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 705 mA @ 120 Hz | 1.41 A @ 100 kHz | 33 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.846 (21.50mm) | - | Through Hole |
|

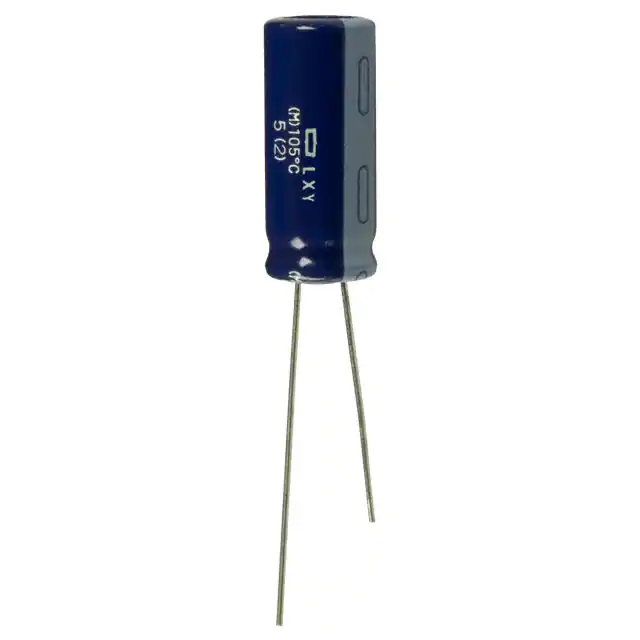

ELXY100ELL122MJ25SCAP ALUM 1200UF 20% 10V RADIAL |
6,437 | 1.10 |
立即询盘 |
Datasheet |
Bulk | LXY | Active | 1200 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 756 mA @ 120 Hz | 1.26 A @ 100 kHz | 52 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 1.043 (26.50mm) | - | Through Hole |
|
ELXV630ELL221MK20SCAP ALUM 220UF 20% 63V RADIAL |
8,439 | 1.17 |
立即询盘 |
Datasheet |
Bulk | LXV | Active | 220 µF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 304.5 mA @ 120 Hz | 870 mA @ 100 kHz | 110 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.846 (21.50mm) | - | Through Hole |
|
ELXZ100ELL182MJ30SCAP ALUM 1800UF 20% 10V RADIAL |
7,544 | 1.17 |
立即询盘 |
Datasheet |
Bulk | LXZ | Active | 1800 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.014 A @ 120 Hz | 1.69 A @ 100 kHz | 37 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 1.240 (31.50mm) | - | Through Hole |
