| 图片 | 型号 | 库存 | 价格 | 数量 | 规格书 | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

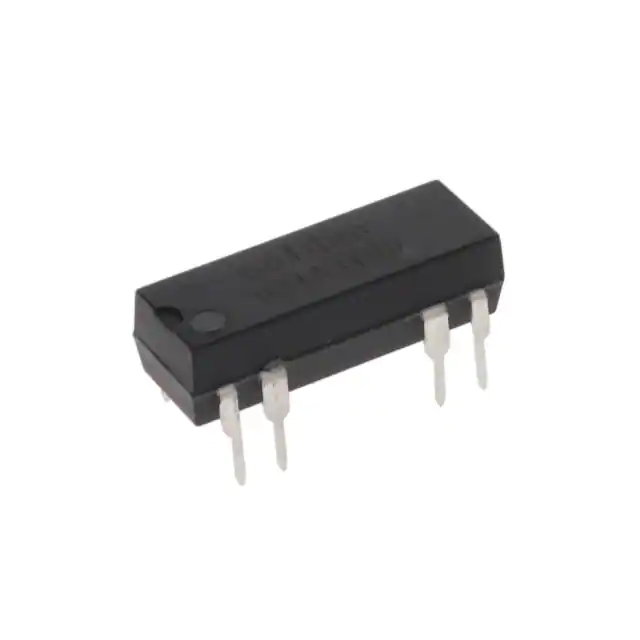

D31A3100REED RELAY 1A/5V |
5,972 | 5.75 |
立即询盘 |
Tray | - | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 100VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.8 VDC | 1 ms | 50 µs | -40°C ~ 70°C | |
|
D31A7100REED RELAY 1A/24V |
6,231 | 6.33 |
立即询盘 |
Tube | - | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 100VDC - Max | 11.2 mA | Non Latching | - | PC Pin | - | 18 VDC | 2 VDC | 1 ms | 50 µs | -40°C ~ 70°C | |
|
|
D41A5100LREED RELAY 1A/12V |
9,373 | 4.15 |
立即询盘 |
Datasheet |
Tray | - | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 100VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 300 µs | 50 µs | -40°C ~ 85°C |
|
|
D31A5100REED RELAY 1A/12V |
9,418 | 4.56 |
立即询盘 |
Tray | - | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 100VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 1 ms | 50 µs | -40°C ~ 70°C | |
|
|
D71A2100REED RELAY 1A/5V |
6,471 | 4.89 |
立即询盘 |
Tray | - | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 100VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.8 VDC | 1 ms | 50 µs | -40°C ~ 85°C | |
|
|
D71A5100REED RELAY 1A/12V |
5,426 | 4.89 |
立即询盘 |
Tray | - | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 100VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 1 ms | 50 µs | -40°C ~ 85°C | |
|
|
D31A3110REED RELAY 1A/5V/DIODE |
9,672 | 5.11 |
立即询盘 |
Tray | - | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 100VDC - Max | 10 mA | Non Latching | Diode | PC Pin | - | 3.75 VDC | 0.8 VDC | 1 ms | 50 µs | -40°C ~ 70°C | |
|
|
D31A7110REED RELAY 1A/24V/DIODE |
8,517 | 5.11 |
立即询盘 |
Tray | - | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 100VDC - Max | 11.2 mA | Non Latching | Diode | PC Pin | - | 18 VDC | 2 VDC | 1 ms | 50 µs | -40°C ~ 70°C | |
|
|
D51A3110REED RELAY 1A/5V/DIODE/2,5KV |
7,004 | 5.34 |
立即询盘 |
Tray | - | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 100VDC - Max | 10 mA | Non Latching | Diode | PC Pin | - | - | - | - | - | - | |
|
|
D71A2110REED RELAY 1A/5V/DIODE |
7,399 | 5.44 |
立即询盘 |
Tray | - | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 100VDC - Max | 10 mA | Non Latching | Diode | PC Pin | - | 3.75 VDC | 0.8 VDC | 1 ms | 50 µs | -40°C ~ 85°C | |
|
|
D31B5100REED RELAY 1B/12V |
6,852 | 7.76 |
立即询盘 |
Datasheet |
Tray | - | Active | Through Hole | 12VDC | SPST-NC (1 Form B) | 500 mA | 100VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 1 ms | 50 µs | -40°C ~ 70°C |
|
|
D31B3100REED RELAY 1B/5V |
8,450 | 7.76 |
立即询盘 |
Datasheet |
Tray | - | Active | Through Hole | 5VDC | SPST-NC (1 Form B) | 500 mA | 100VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 4.2 VDC | 0.6 VDC | 1 ms | 50 µs | -40°C ~ 70°C |
|
|
D32A3100REED RELAY 2A/5V/COIL 200OHMS |
5,578 | 8.33 |
立即询盘 |
Datasheet |
Tray | - | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 100VDC - Max | 35.7 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.8 VDC | 1 ms | 50 µs | -40°C ~ 70°C |
|
|
D32A5100REED RELAY 2A/12V |
8,084 | 8.44 |
立即询盘 |
Datasheet |
Tray | - | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 500 mA | 100VDC - Max | 24 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 1 ms | 50 µs | -40°C ~ 70°C |
|
|
D32A3110REED RELAY 2A/5V/DIODE/COIL 200O |
5,913 | 8.87 |
立即询盘 |
Datasheet |
Tray | - | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 100VDC - Max | 35.7 mA | Non Latching | Diode | PC Pin | - | 3.75 VDC | 0.8 VDC | 1 ms | 50 µs | -40°C ~ 70°C |
|
|
D32A7100AREED RELAY 2A/24V |
6,500 | 8.89 |
立即询盘 |
Datasheet |
Tray | - | Active | Through Hole | 24VDC | DPST-NO (2 Form A) | 500 mA | 100VDC - Max | 11.2 mA | Non Latching | - | PC Pin | - | 18 VDC | 2 VDC | 1 ms | 50 µs | -40°C ~ 70°C |
|
|
D31C2100REED RELAY 1C/5V |
1,188 | 12.65 |
立即询盘 |
Datasheet |
Tray | - | Active | Through Hole | 5VDC | SPDT (1 Form C) | 250 mA | 100VDC - Max | 25 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.8 VDC | 1.5 ms | 2 ms | -40°C ~ 70°C |
|
|
D31C7100REED RELAY 1C/24V |
2,909 | 13.27 |
立即询盘 |
Datasheet |
Tray | - | Active | Through Hole | 24VDC | SPDT (1 Form C) | 250 mA | 100VDC - Max | 11.2 mA | Non Latching | - | PC Pin | - | 18 VDC | 2 VDC | 1.5 ms | 2 ms | -40°C ~ 70°C |
|
|
D31C2110REED RELAY 1C/5V/DIODE |
2,094 | 13.62 |
立即询盘 |
Datasheet |
Tray | - | Active | Through Hole | 5VDC | SPDT (1 Form C) | 250 mA | 100VDC - Max | 25 mA | Non Latching | Diode | PC Pin | - | 3.75 VDC | 0.8 VDC | 1.5 ms | 2 ms | -40°C ~ 70°C |
|
|
D31C5100REED RELAY 1C/12V |
4,336 | 14.97 |
立即询盘 |
Datasheet |
Tray | - | Active | Through Hole | 12VDC | SPDT (1 Form C) | 250 mA | 100VDC - Max | 24 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 1.5 ms | 2 ms | -40°C ~ 70°C |
