| 图片 | 型号 | 库存 | 价格 | 数量 | 规格书 | Packaging | Series | ProductStatus | CoilType | CoilCurrent | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | Features | MountingType | TerminationStyle |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

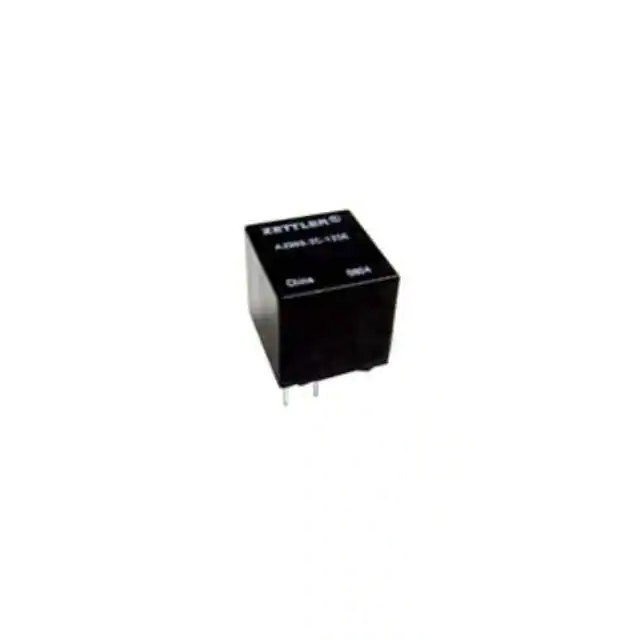

AZ9891J-1C-12DE30A SUB-MICRO AUTO RELAY |
6,745 | 1.21 |
立即询盘 |
Datasheet |
Tray | - | Active | Non Latching | 66.7 mA | 12VDC | SPDT (1 Form C) | 30 A | 16VDC - Max | 7.2 VDC | 1 VDC | 10 ms | 10 ms | Sealed - Fully | Through Hole | PC Pin |
|
|

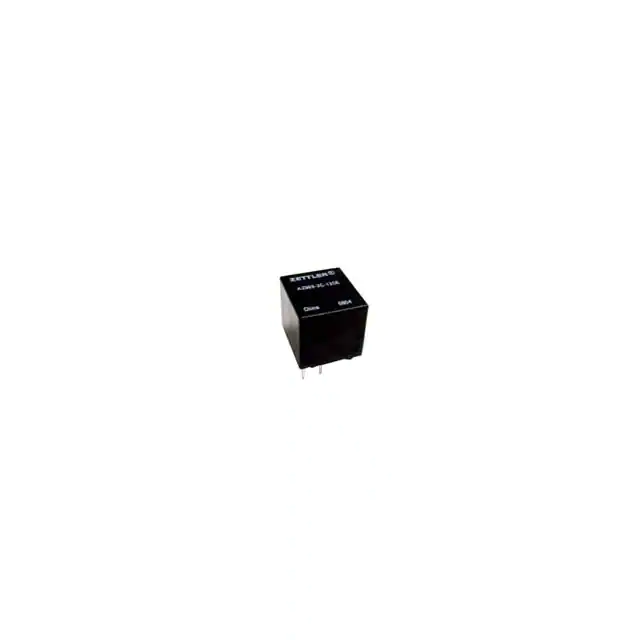

AZ9891J-2C-12DE30A SUB-MICRO AUTO RELAY |
7,608 | 2.64 |
立即询盘 |
Datasheet |
Tray | - | Active | Non Latching | 66.7 mA | 12VDC | DPDT (2 Form C) | 30 A | 16VDC - Max | 7.2 VDC | 1 VDC | 10 ms | 10 ms | Sealed - Fully | Through Hole | PC Pin |
|
AZ9731-1A-12DC340A MINI-ISO AUTO RELAY |
7,931 | 1.60 |
立即询盘 |
Datasheet |
Tray | - | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 5 ms | - | Socketable | Plug In, Quick Connect - 0.250 (6.3mm) |
|

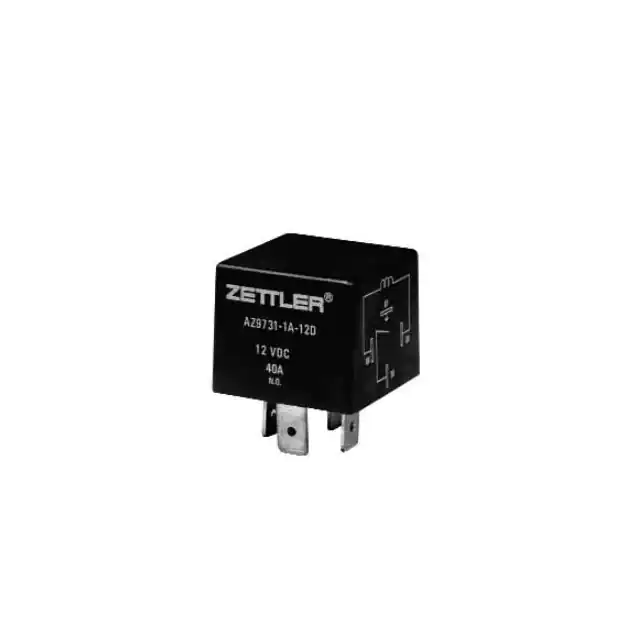

AZ9731-1A-12DC140A MINI-ISO AUTO RELAY |
6,089 | 1.65 |
立即询盘 |
Datasheet |
Tray | - | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 5 ms | - | Chassis Mount | Quick Connect - 0.250 (6.3mm) |
|
|
AZ9731-1A-12DC1R140A MINI-ISO AUTO RELAY |
6,652 | 1.72 |
立即询盘 |
Datasheet |
Tray | - | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 5 ms | Resistor | Chassis Mount | Quick Connect - 0.250 (6.3mm) |
|
|
AZ9731-1C-12DC1R140A MINI-ISO AUTO RELAY |
7,405 | 2.23 |
立即询盘 |
Datasheet |
Tray | - | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 5 ms | Resistor | Chassis Mount | Quick Connect - 0.250 (6.3mm) |
|
AZ9871-2C-12DETRELAY SIGNAL DPDT 1A 12VDC PCB |
7,059 | 2.27 |
立即询盘 |
Datasheet |
Tray | - | Active | Non Latching | 47.2 mA | 12VDC | DPDT (2 Form C) | 30 A | 24VDC - Max | 6.9 VDC | 1.5 VDC | 3 ms | 1.5 ms | Sealed - Fully | Through Hole | PC Pin |
|
AZ9871-2C-24DETRELAY SIGNAL DPDT 1A 24VDC PCB |
5,527 | 2.34 |
立即询盘 |
Datasheet |
Tray | - | Active | Non Latching | 23.8 mA | 24VDC | DPDT (2 Form C) | 30 A | 24VDC - Max | 13.8 VDC | 3 VDC | 3 ms | 1.5 ms | Sealed - Fully | Through Hole | PC Pin |
|
|
AZ9731-1A-12DC4R140A MINI-ISO AUTO RELAY |
9,777 | 2.42 |
立即询盘 |
Datasheet |
Tray | - | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250 (6.3mm) |
|

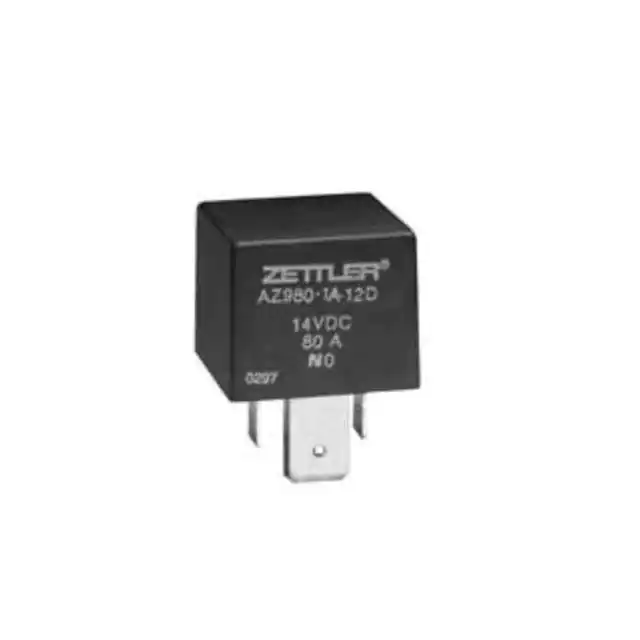

AZ980-1C-12DE80A SUPER-ISO AUTO RELAY |
9,843 | 3.88 |
立即询盘 |
Datasheet |
Tray | - | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 60 A | 30VDC - Max | 7.8 VDC | 1.2 VDC | 7 ms | 5 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - Multiple Sizes |
|

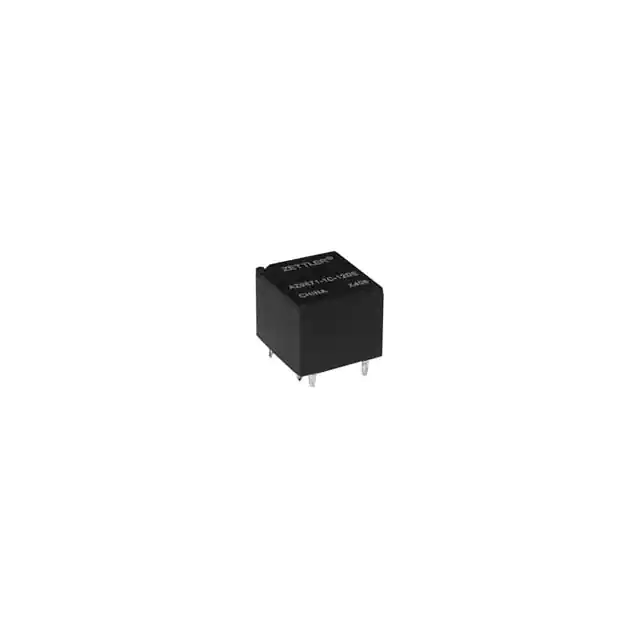

AZ9871-1A-12DET30A MICRO AUTO RELAY |
7,073 | 1.04 |
立即询盘 |
Datasheet |
Tray | - | Active | Non Latching | 47.2 mA | 12VDC | SPST-NO (1 Form A) | 30 A | 24VDC - Max | 6.9 VDC | 1.5 VDC | 3 ms | 1.5 ms | Sealed - Fully | Through Hole | PC Pin |
|
AZ9871-1C-12DET30A MICRO AUTO RELAY |
5,581 | 1.09 |
立即询盘 |
Datasheet |
Tray | - | Active | Non Latching | 47.2 mA | 12VDC | SPDT (1 Form C) | 25 A | 24VDC - Max | 6.9 VDC | 1.5 VDC | 3 ms | 1.5 ms | Sealed - Fully | Through Hole | PC Pin |
|
|
AZ9871-1C-24DET30A MICRO AUTO RELAY |
6,689 | 1.14 |
立即询盘 |
Datasheet |
Tray | - | Active | Non Latching | 23.8 mA | 24VDC | SPDT (1 Form C) | 25 A | 24VDC - Max | 13.8 VDC | 3 VDC | 3 ms | 1.5 ms | Sealed - Fully | Through Hole | PC Pin |
|
AZ9891J-1C-12DSE30A SUB-MICRO AUTO RELAY |
8,387 | 1.21 |
立即询盘 |
Datasheet |
Tray | - | Active | Non Latching | 53.3 mA | 12VDC | SPDT (1 Form C) | 30 A | 16VDC - Max | 6.5 VDC | 1 VDC | 10 ms | 10 ms | Sealed - Fully | Through Hole | PC Pin |
|
|
AZ9731-1A-12DC3R140A MINI-ISO AUTO RELAY |
8,776 | 1.67 |
立即询盘 |
Datasheet |
Tray | - | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 5 ms | Resistor | Socketable | Plug In, Quick Connect - 0.250 (6.3mm) |
|
|
AZ9871-2A-12DET30A MICRO AUTO RELAY |
8,293 | 2.11 |
立即询盘 |
Datasheet |
Tray | - | Active | Non Latching | 47.2 mA | 12VDC | DPST-NO (2 Form A) | 30 A | 24VDC - Max | 6.9 VDC | 1.5 VDC | 3 ms | 1.5 ms | Sealed - Fully | Through Hole | PC Pin |
|
|
AZ9731-1C-12DC340A MINI-ISO AUTO RELAY |
6,830 | 2.11 |
立即询盘 |
Datasheet |
Tray | - | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 5 ms | - | Socketable | Plug In, Quick Connect - 0.250 (6.3mm) |
|
|
AZ9731-1C-12DC140A MINI-ISO AUTO RELAY |
9,269 | 2.16 |
立即询盘 |
Datasheet |
Tray | - | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 5 ms | - | Chassis Mount | Quick Connect - 0.250 (6.3mm) |
|
|
AZ9731-1C-12DC3R140A MINI-ISO AUTO RELAY |
5,854 | 2.18 |
立即询盘 |
Datasheet |
Tray | - | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 5 ms | Resistor | Socketable | Plug In, Quick Connect - 0.250 (6.3mm) |
|
|
AZ9731-1A-12DC440A MINI-ISO AUTO RELAY |
9,770 | 2.33 |
立即询盘 |
Datasheet |
Tray | - | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 5 ms | Sealed - Fully | Chassis Mount | Quick Connect - 0.250 (6.3mm) |
